Tumblers – 120 and 170
4-08-45
15

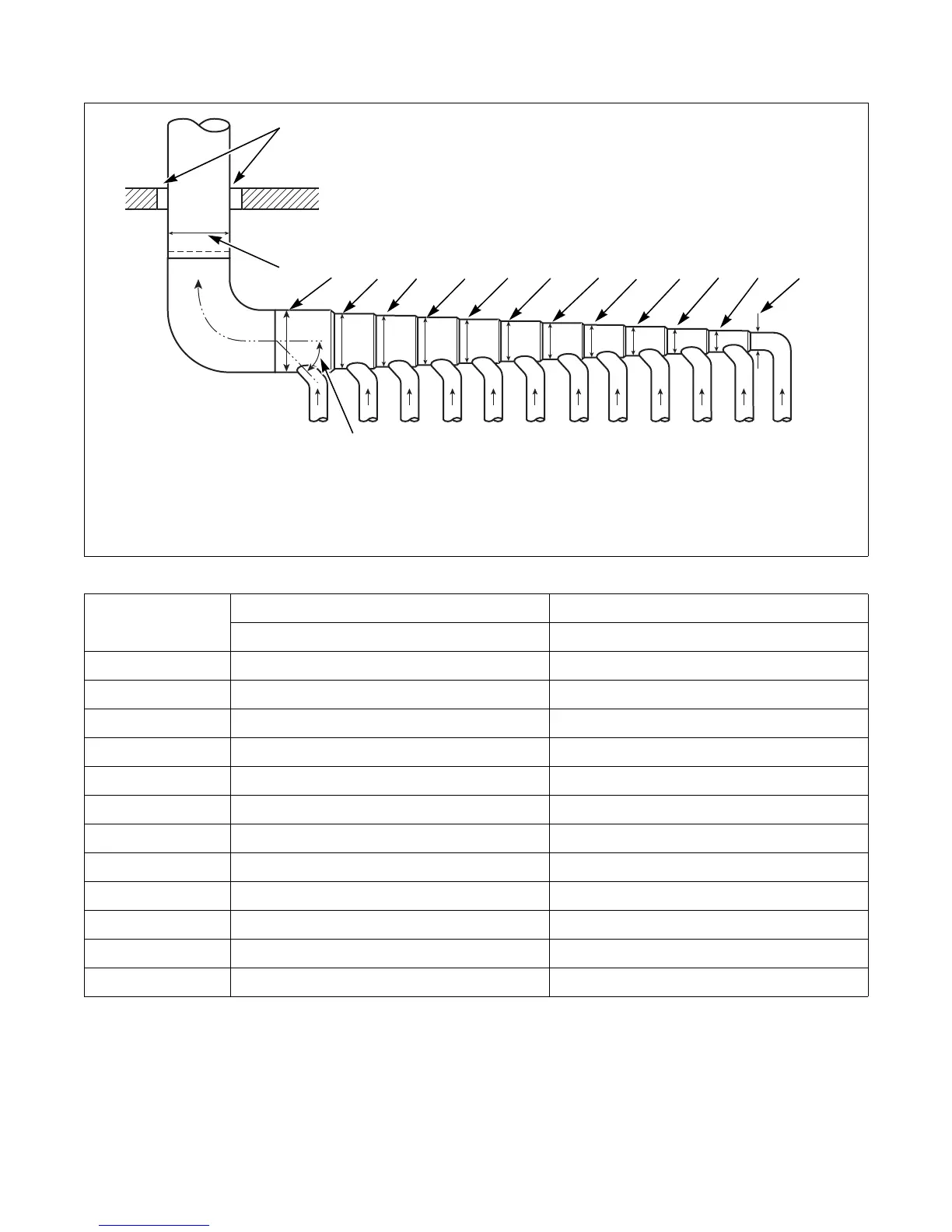

Figure 4
TMB2019N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet Duct Diameter
3 45° Typical
LKJ I HG F
E
DCBA
3
1
2
ONE MANIFOLD ASSEMBLY
Duct
Station
120 Pound 170 Pound
10 in. (254 mm) Duct 12 in. (305 mm) Duct
A
10 in. (254 mm) 12 in. (305 mm)
B
15 in. (381 mm) 17 in. (432 mm)
C
18 in. (457 mm) 21 in. (533 mm)
D
21 in. (533 mm) 24 in. (610 mm)
E
24 in. (610 mm) 27 in. (686 mm)
F
26 in. (660 mm) 30 in. (762 mm)
G
28 in. (711 mm) 32 in. (813 mm)
H
30 in. (762 mm) 34 in. (864 mm)
I
32 in. (813 mm) 36 in. (914 mm)
J
33 in. (838 mm) 38 in. (965 mm)
K
35 in. (889 mm) 40 in. (1016 mm)
L
36 in. (914 mm) 42 in. (1067 mm)
Table 3
