Tumblers – 120 and 170
16
4-08-45

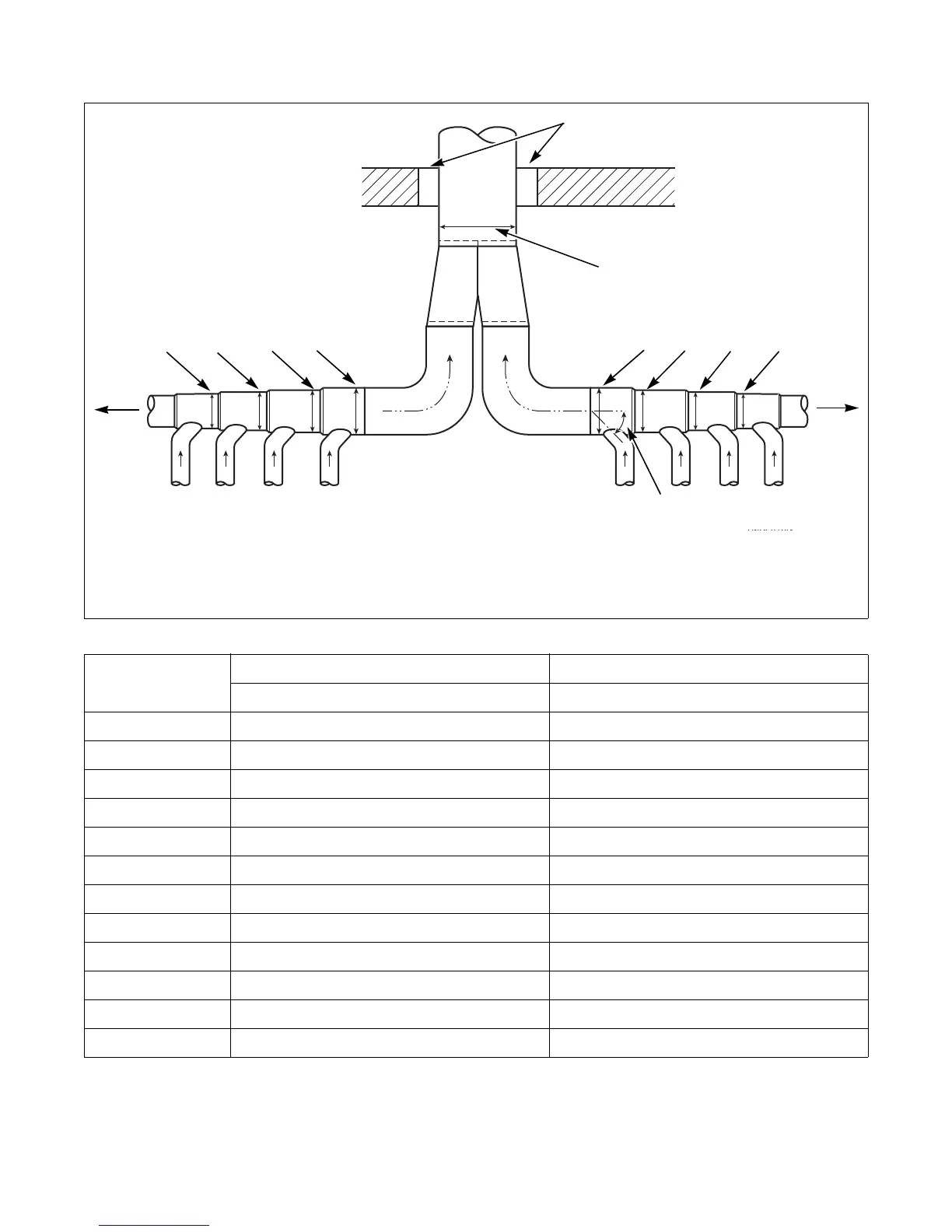

Figure 5
TMB2018N
1 NOTE: Where the exhaust duct pierces a
combustible wall or ceiling, the opening
MUST be sized per local codes.
2 Outlet Duct Diameter
3 45° Typical
TMB2018N
1
2
3
LK
J
I
L
KJ
I
CONTINUE
TO A
CONTINUE
TO A
TWO MANIFOLD ASSEMBLIES
Duct
Station
120 Pound 170 Pound
10 in. (254 mm) Duct 12 in. (305 mm) Duct
A
15 in. (381 mm) 17 in. (432 mm)
B
21 in. (533 mm) 24 in. (610 mm)
C
26 in. (660 mm) 30 in. (762 mm)
D
30 in. (762 mm) 34 in. (864 mm)
E
33 in. (838 mm) 38 in. (965 mm)
F
36 in. (914 mm) 42 in. (1067 mm)
G
39 in. (991 mm) 45 in. (1143 mm)
H
42 in. (1067 mm) 45 in. (1143 mm)
I
45 in. (1143 mm) 52 in. (1321 mm)
J
47 in. (1194 mm) 54 in. (1372 mm)
K
49 in. (1245 mm) 57 in. (1448 mm)
L
51 in. (1295 mm) 60 in. (1524 mm)
Table 4
