Page 32
Ref. Part No. Description
No.
1 EA-00607-0 Thermostat knob
2 CA-13213-0 Thermostat bracket
3 EA-00606-0 Thermostat
4 CA-13215-0 Thermostat bracket adapter
5 TU3624 Screw 6 - 32 X 1/4"
6 TU7733 Screw - self drilling 8 - 18 X 1/2"
7 EA-00434-0 Clip - 3/8" spring
8 EA-00608 - 0 Grommet / rubber
9 CA-13214-0 Plate
10 EA-00594-0 Thermostat - HI-Limit
11 SB-00828-0 Screw 8-32 X 1/2"
12 TU3266 Nut-brass 8-32
NOTE: Items 1 thru 6
mounted in front wire box.
Items 7 thru 12 are mounted
under the basket

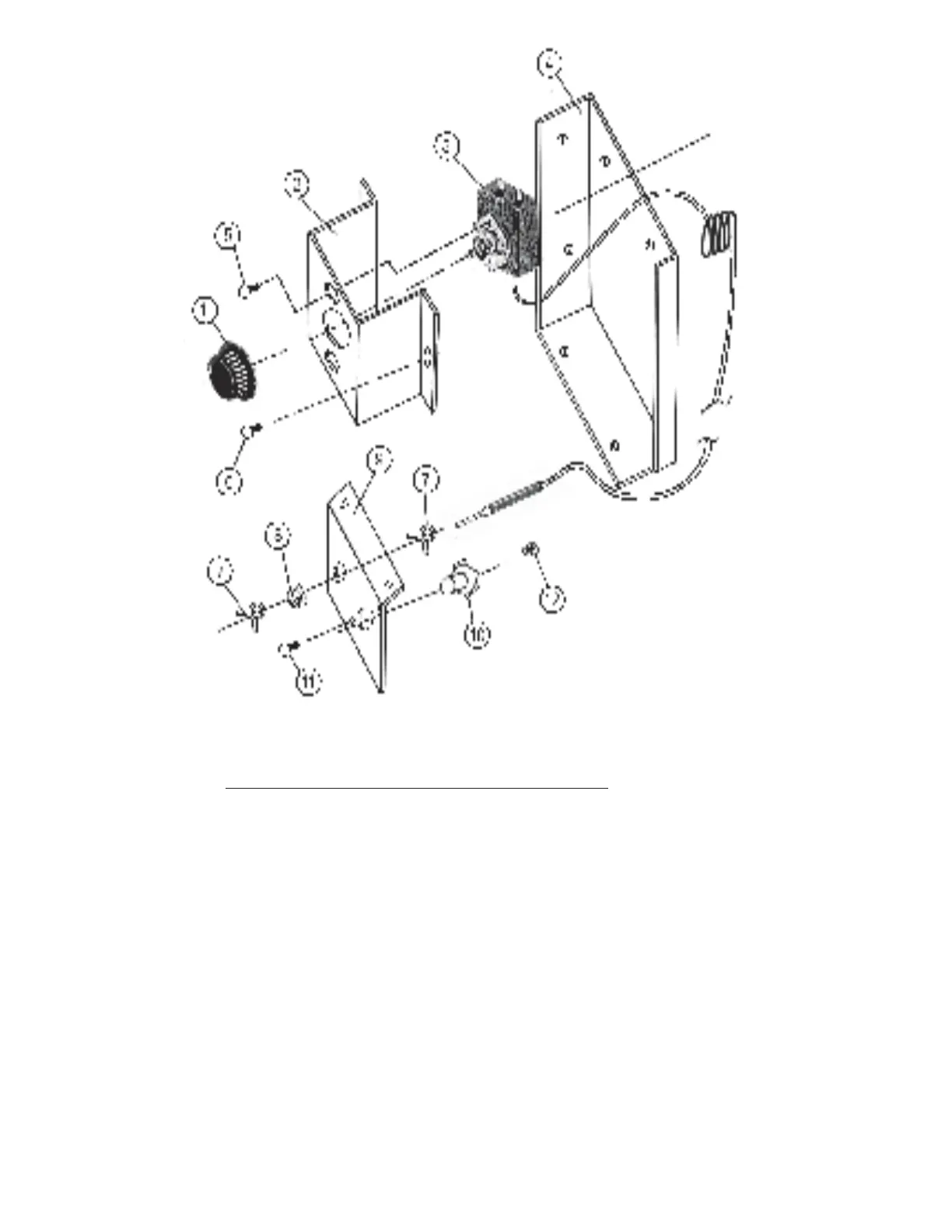

THERMOSTAT ASSEMBLY
