Page 37
Ref. Part No. Description
No.
1 CA-12073-0 Top panel
2 TU7733 Screw self drilling 8-18*1/2"
3 CA-11936-0 Cover plate
4 CA-12016-0 Backpanel
5 TU7733 Screw self drilling 8-18*1/2"

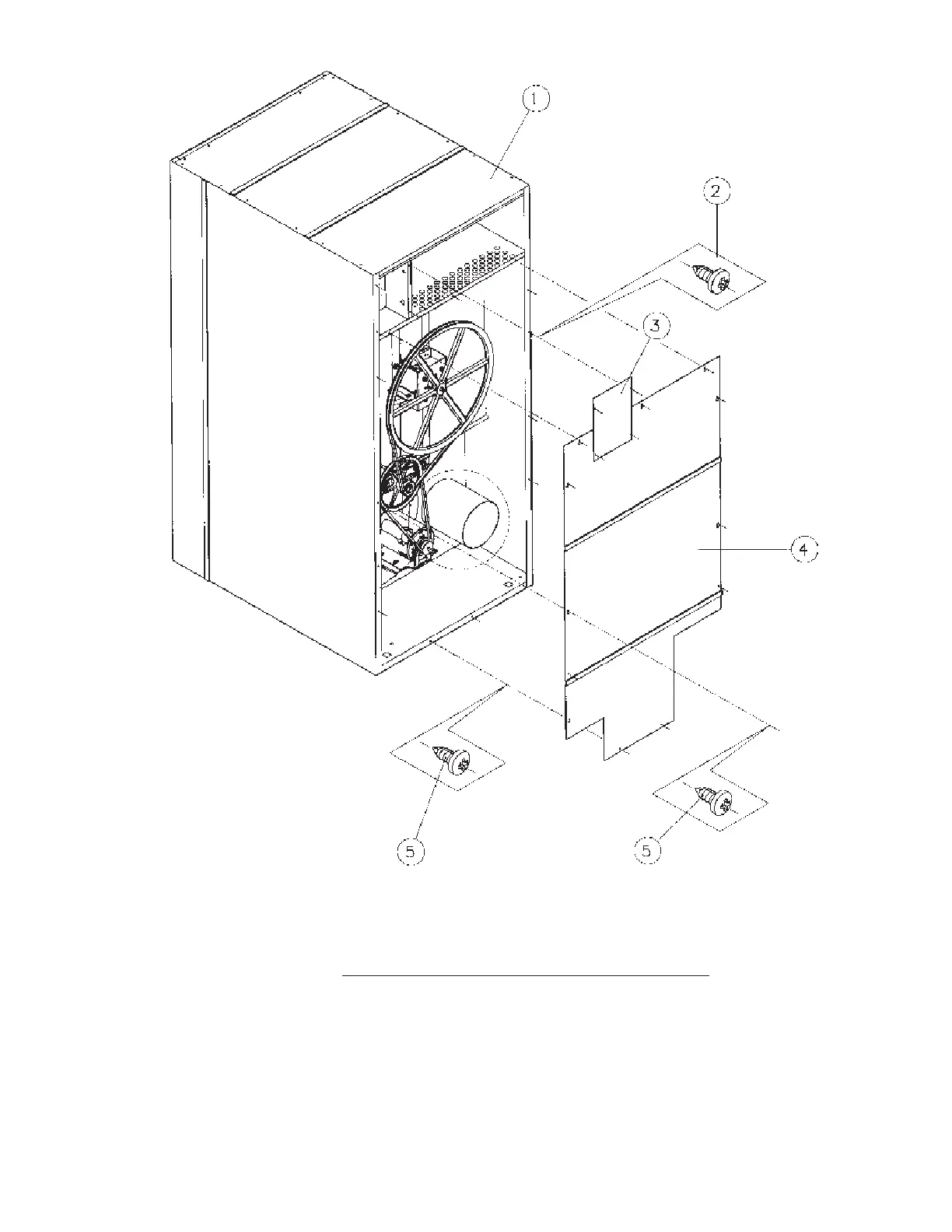

REAR VIEW
