IPSO DR50 - Basket & Spider Assembly Parts

Page 36
Ref. Part No. Description
No.
CSA-01541-0 Basket & Spyder Asm.WMC50 - S.S.
CSA-01632-0 Basket & Spyder Asm.WMC50 - Galv.
1 CSA-01540-0 Stainless steel basket assy.
1 CSA-01631-0 Galvanized basket assy.
2 CSA-00822-0 Spider assy.
3 TU5439 Screw-cap 5/16-18 X 3/4"
4 TU2814 Lock washer 5/16"
5 SB-00843-0 Washer fender 3/8" X 1 1/2"
6 SB-00906-0 Nut 5/16" - 18 stover
7 TU2814 Lock washer 5/16"
9 TU7006 Shim
10 CA-13208 Basket rib support
11 DA-11249-0 Tie rod
12 SB-009650-0 Screw-button cap 5/16 - 18

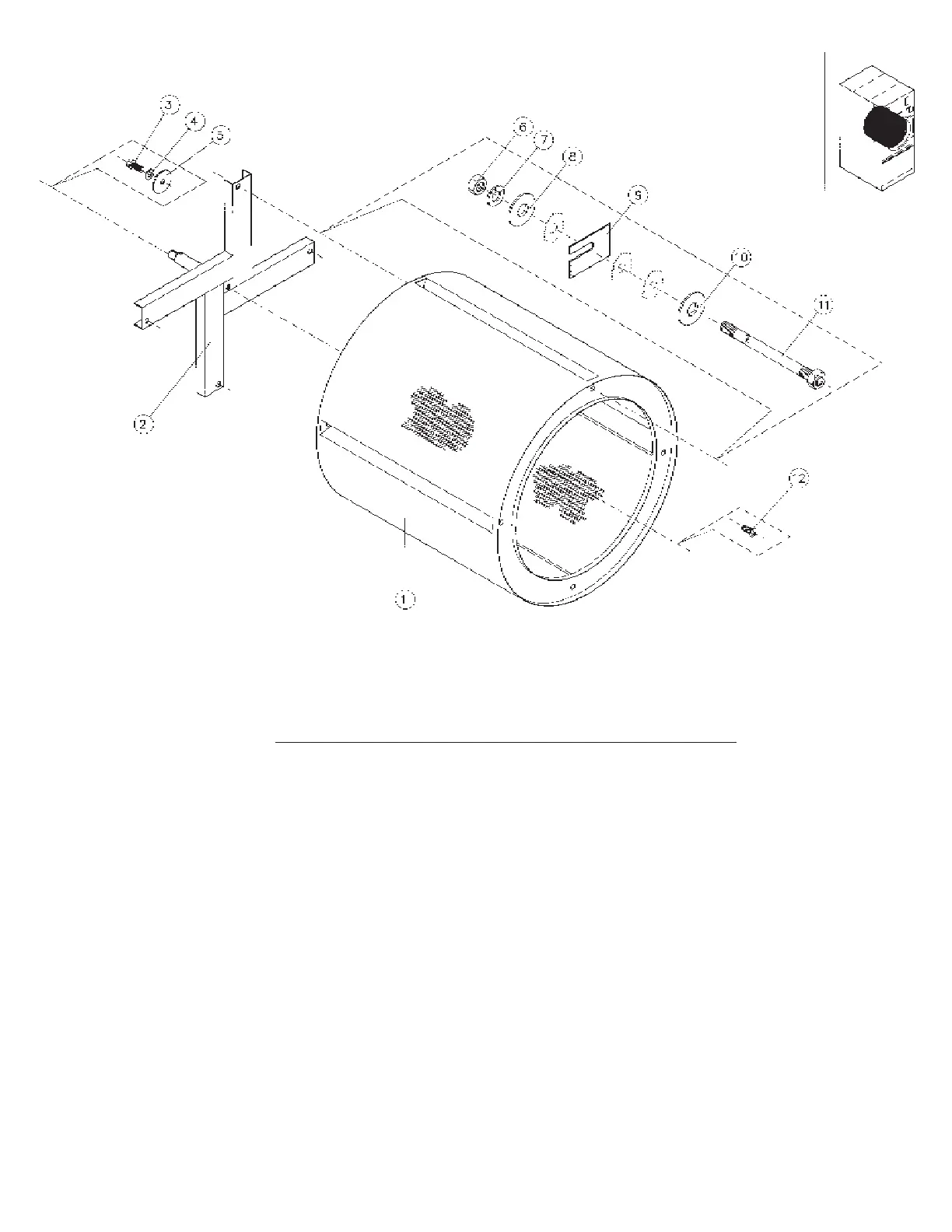

BASKET & SPIDER ASSEMBLY
