IPSO DR50 - Basket Bearings and Sheave Parts

Page 39
Ref. Part No. Description
No.
1 DA-11912-0 Pulley - basket
2 Part of pulley
3 DA-11914-0 Key
4 C249 Hex nut 5/16-18"
5 SB-00876-0 Stud - 5/16 - 18"
6 DSA-00728-0 Bearing box assy.
7 TU4787 Hex nut 3/8-16"
8 VSB134 Lock Washer 3/8"
9 IB140 Washer 3/8"
10 IB140 Washer 3/8"
11 IB139 Screw 3/8-16*1-1/4"
12 C249 Hex nut 5/16-18"
13 SB-00935-0 Screw cap 5/16 - 18 X 3
14 DA-00421-0 Bearing flange 1 3/8"
Ref. Part No. Description
No.
15 IB140 Washer 3/8"
16 IB139 Screw 3/8-16*1-1/4"
17 IB139 Screw 3/8-16*1-1/4"
18 IB140 Washer 3/8"
19 IB140 Washer 3/8"
20 VSB134 Lock Washer 3/8"
21 TU4787 Hex nut 3/8-16"
22 VSB134 Lock Washer 3/8"
23 TU4787 Hex nut 3/8-16"
24 DA-00421-0 Bearing - flange 1 3/8"
25 Part of bearing

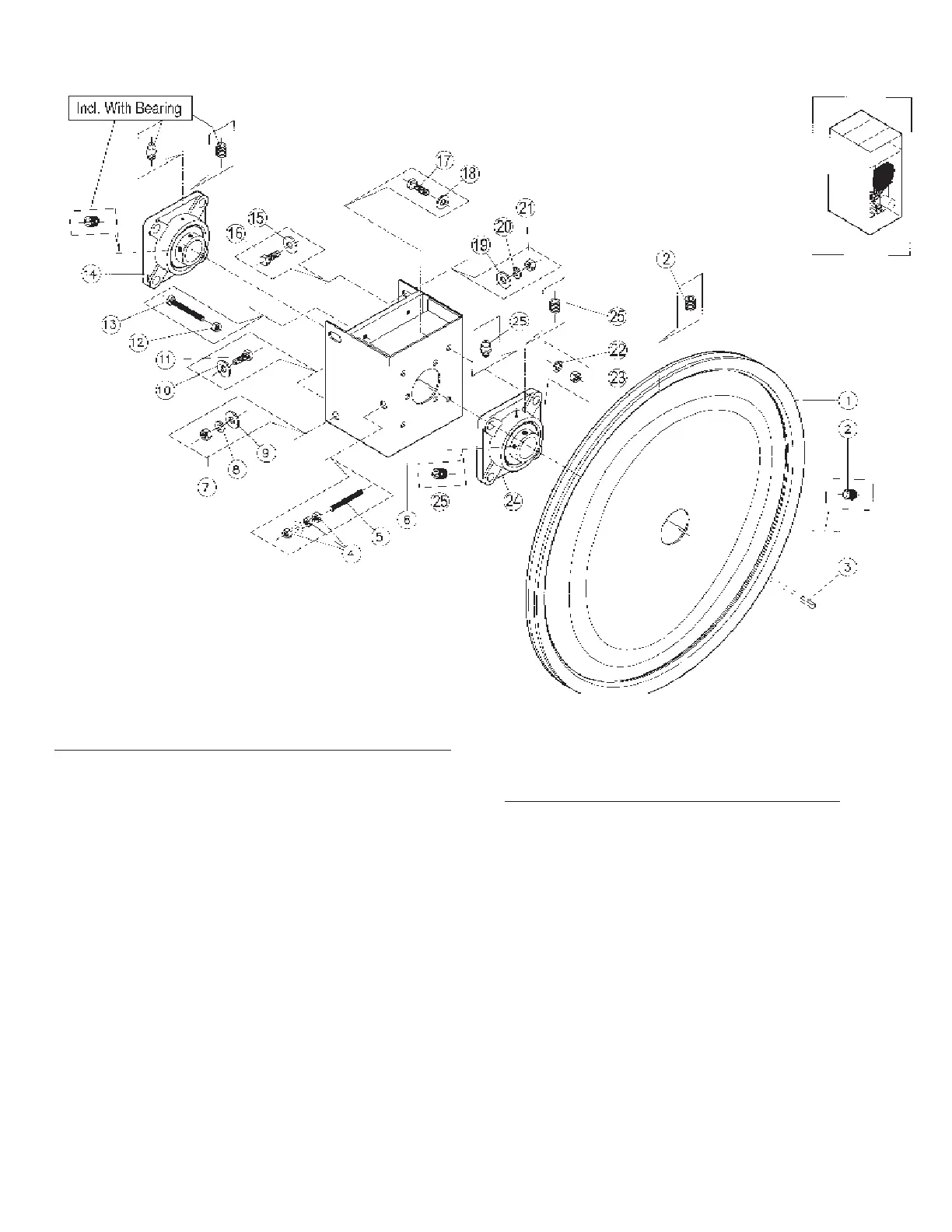

BASKET BEARINGS, SUPPORT, AND SHEAVE
