Installing the HDD

One.

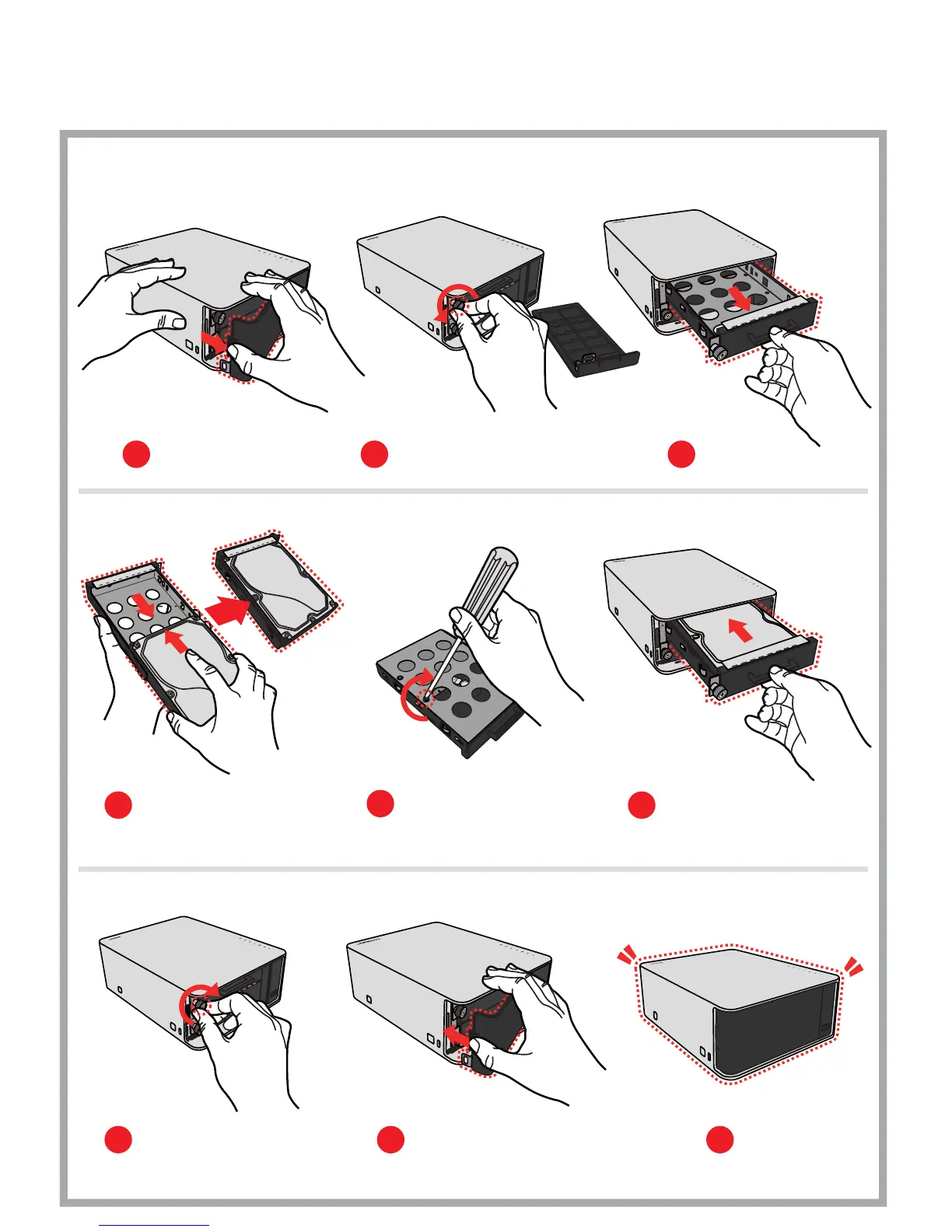

Install HDD as the pictures below.

- The other HDD can be installed as the same way.

1

Open the front panel.

4

Insert the HDD into the tray. Lock the HDD with screws.

2

Unlock the screws from the tray.

3

6

5

Pull out the tray.

NAS

I

I

I

I

NAS

I

I

NAS

I

I

NAS

I

I

I

I

Plug the tray to the system.

NAS

I

I

II

Lock the screw to the tray.

7

Close the front panel.

8 9

Done.
