3. Package Contents
Contents dependent on model type:
 Dialler board
 Ethernet cable (IRIS Touch 420NG & 440NG)
 GPRS/3G antenna (IRIS Touch 400NG & 440NG)
 Stylus
 RJ11 cable
 18k Ohms sense resistor

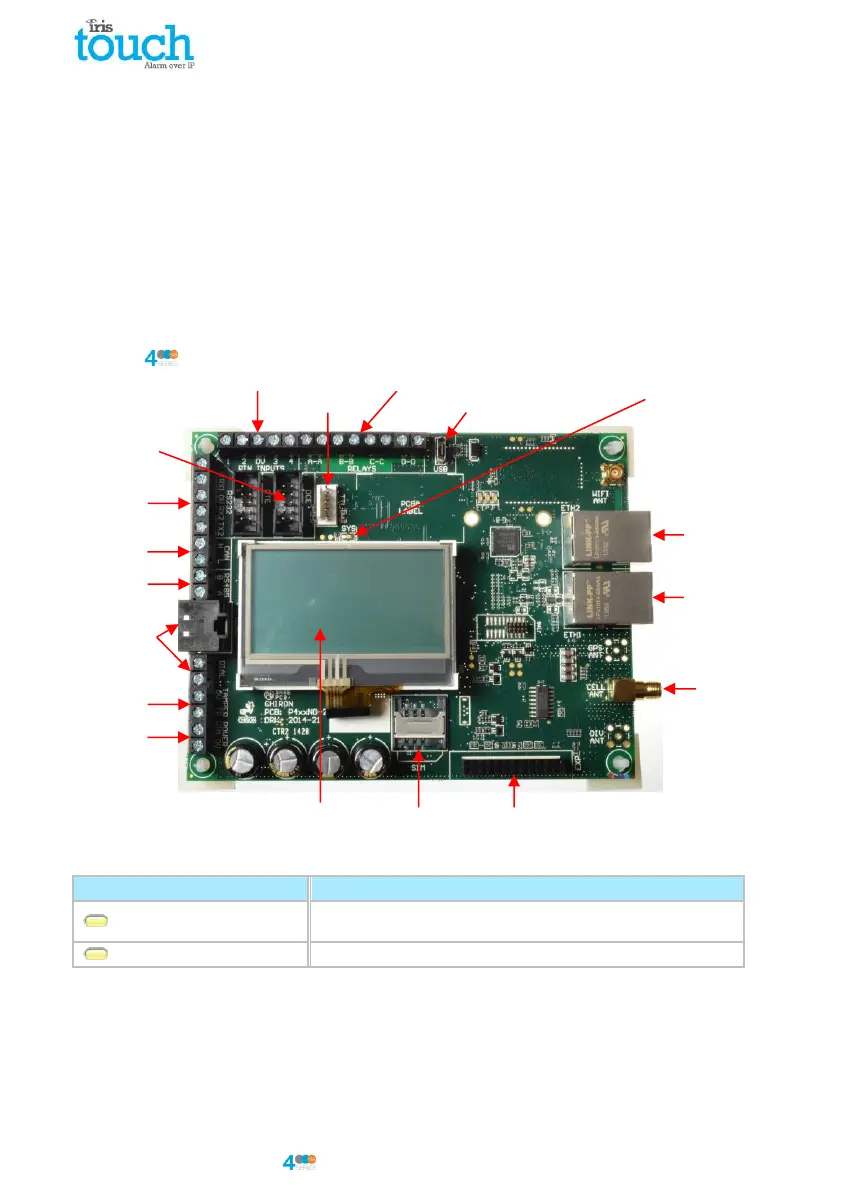

4. Board Configuration
IRIS Touch
SYS LED
LED Colour
Indication
Yellow flashing
Not currently configured or indicating that there are some
current faults outstanding.
Yellow constant
Communicating and no current faults (flickers on every poll).
DC power
Pin inputs
RS485
Dial capture port
RJ11 and screw
terminals
SIM card
holder
Ethernet 2
SYS LED
Ethernet 1
Expansion board
connector
GPRS/3G
antenna
Serial
(TTL)
RS232 x 2
Relays
Micro
USB
External
tamper
CAN bus
Touch
screen
RS232
DCE Header
