IRO Laser - Motor Circuit Adjustments; Motorschaltkreis-Einstellung

P2
C1
C2
S1
P1
7
16
S2S3
1
P2
S6S5S4
S1S3
C4
P2
P2
20.9039.00010
02744 930928 P
J2
J1
1 2 3
1 2 3
1 2 3
1400m/min
1000m/min
600m/min
1000m/min
800m/min
500m/min
LASER NOVA 1000
NOVA 600
1 2 3
1 2 3
1 2 3
F L
F L
J2
J1
Ref. No 20-8930-0811-03/9608

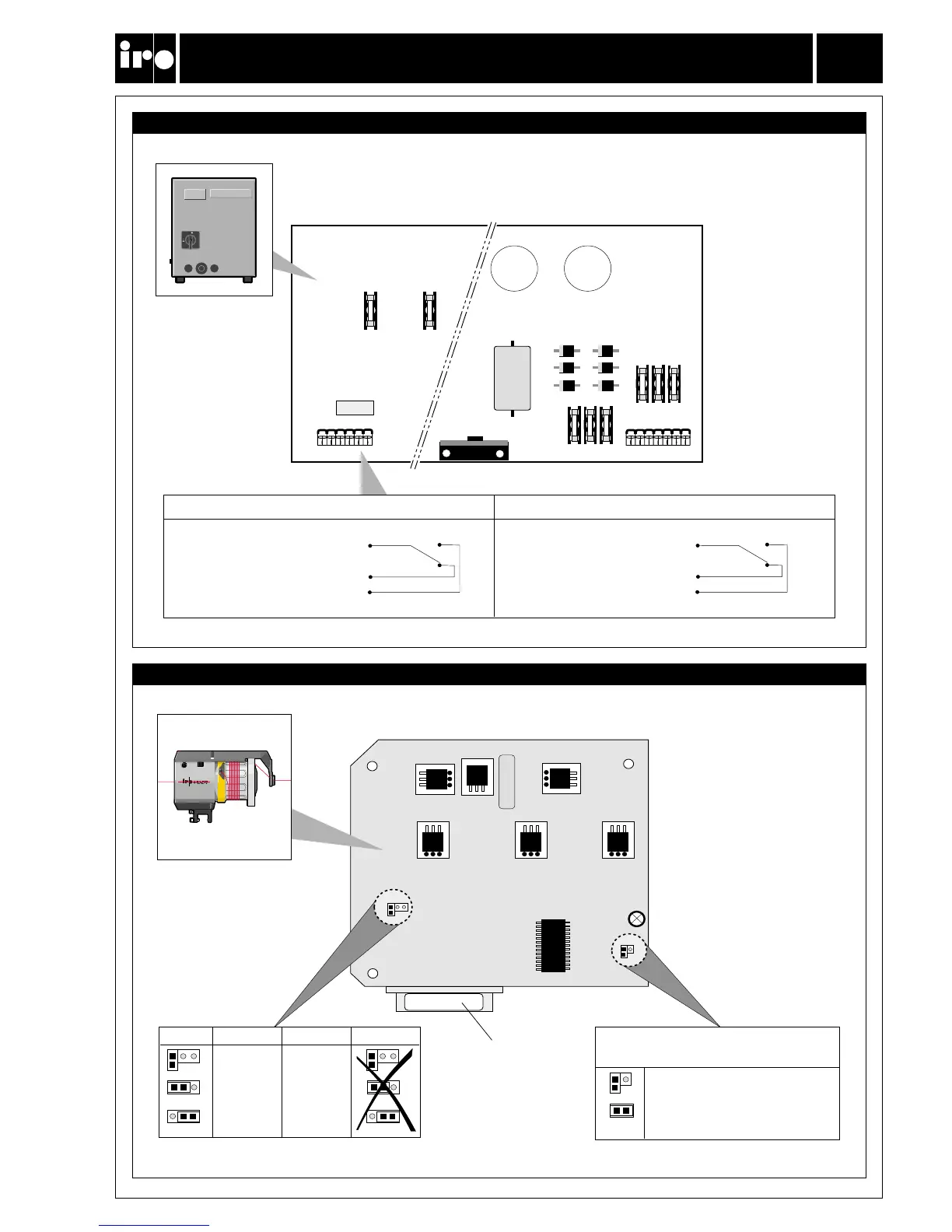

MOTOR CIRCUIT ADJUSTMENTS
MOTORSCHALTKREIS-EINSTELLUNG
11
Laser/Nova
Control box 4129/4629 fuse panel
Kontrollkasten 4129/4629 Sicherungstafel
Stop signal connection to weaving machine/Stopp-Signal Verbindung zur Webmaschine
Motor Circuit Board/Motorprintplatte
Part No./ Production date
Teil Nr./Herstellungsdatum
Constant signal/Konstantes Signal
Pulsating signal/Blinkendes Signal
SIGNAL TO WEAVING MACHINE
SIGNAL ZUR WEBMASCHINE
Machine stop / Maschinen-Stopp Stop indicator / Stopp-Anzeige
Common / Abstellsignal - 3
Normally Closed / Schliesser - 2
Normally Open / Öffner - 1
Common / Abstellsignal - 5
Normally Closed / Schliesser - 6
Normally Open / Öffner - 4
