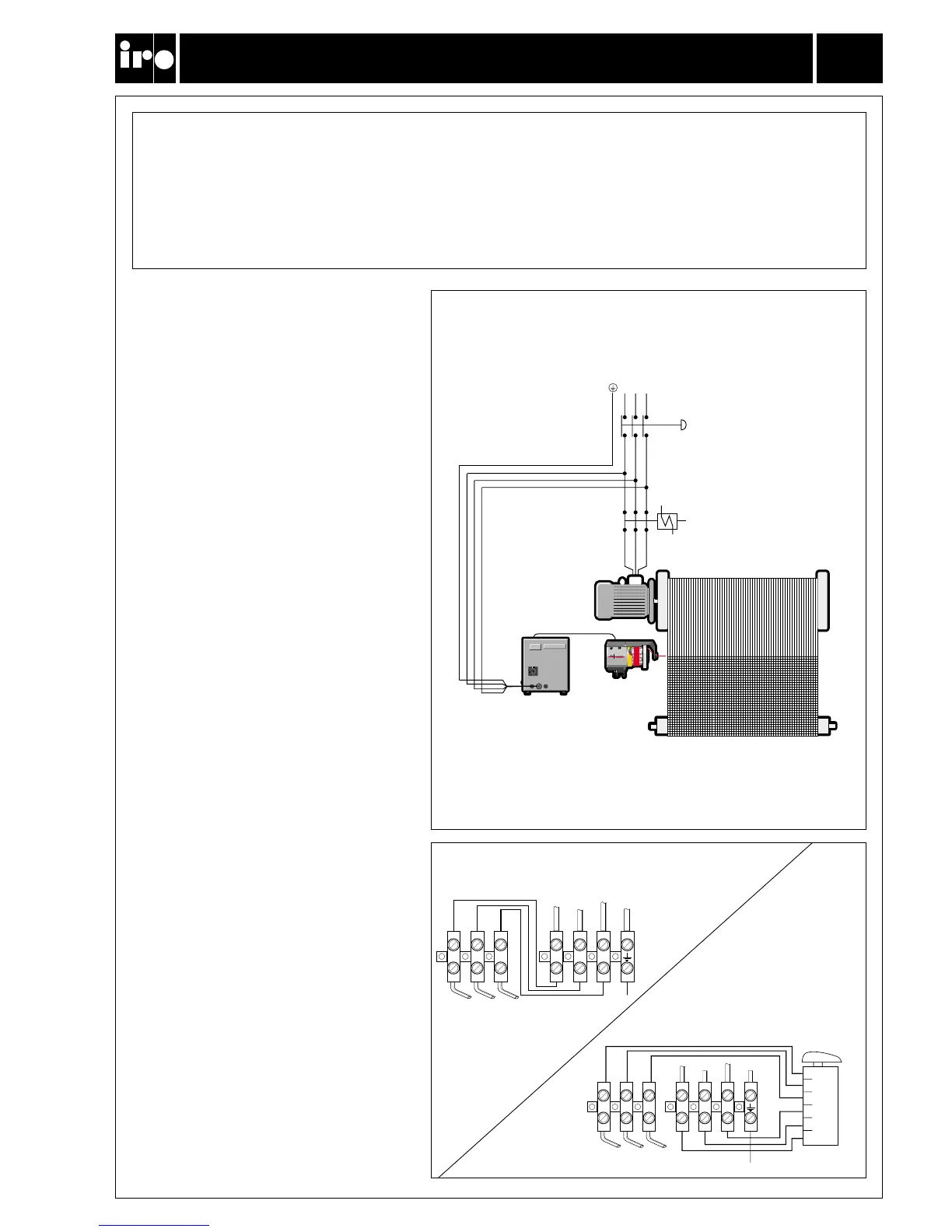

MAINS CONNECTION
HAUPTANSCHLUSS
6
Laser/Nova
The power supply to the feeder must
not be disrupted when the weaving
machine stops.
Die Stromversorgung der Speicher
darf durch Stopp der Webmaschine
nicht unterbrochen werden.
Check the wiring diagram before any
connections are carried out.
Vor dem Anschliessen
Verdrahtungsplan prüfen.
L2L1 L3
(N) (N) (N)
L1 L2 L3
1
3
5
2
4
6
(N) (N) (N)
L1 L2 L3
IMPORTANT!
Turn off the main switch before any work is carried out
on the electrical circuit.
WICHTIG !
Hauptschalter oder Netzstecker muss ausgeschaltet sein, bevor Arbeiten
am elektrischen System ausgeführt werden.
Mains supply
Hauptanschluss
Main switch
Hauptschalter
Stop motion relay
Abstell-Relais
Without main switch
Ohne Hauptschalter
With main switch
Mit Hauptschalter
