8 For more information, visit global.irobot.com
EN

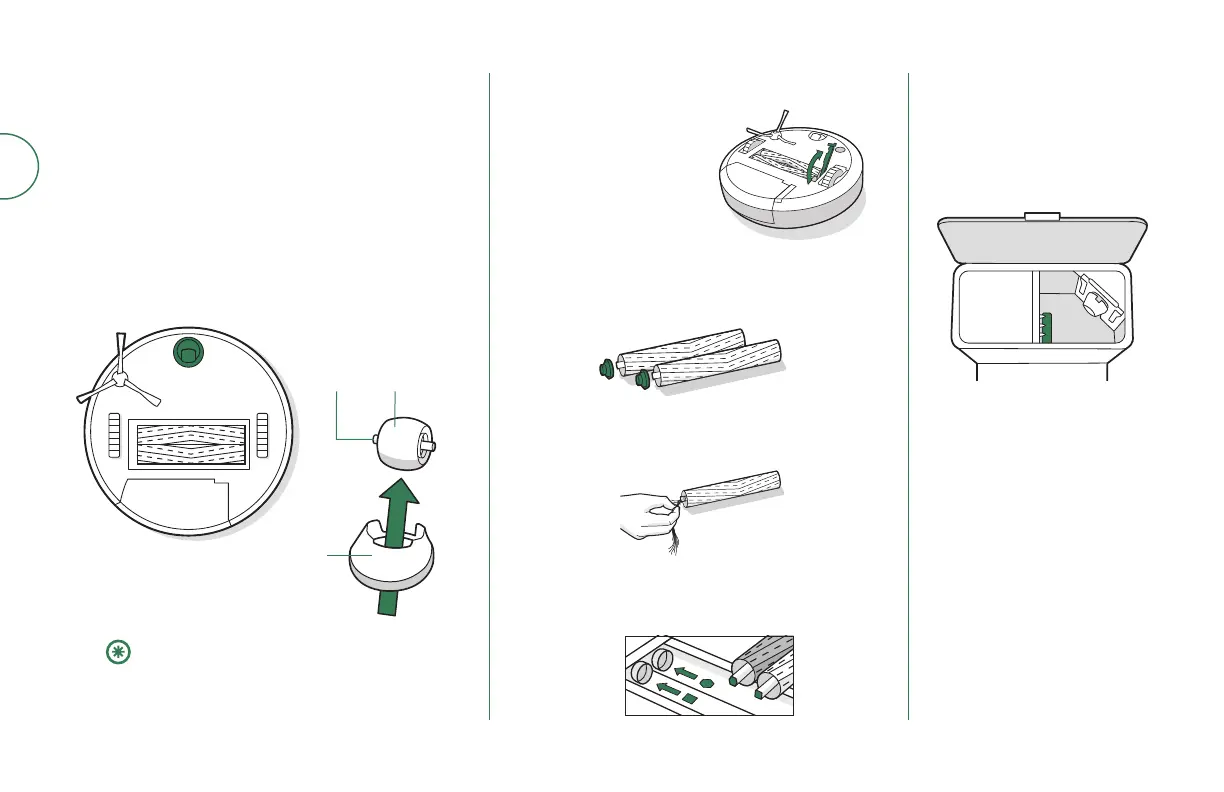

Pinch the brush-
frame release tab, lift
the tab and remove
any obstructions.
Remove the brushes from the robot. Remove
the brush caps from the ends of the brushes.
Remove any hair or debris that has collected
beneath the caps. Reinstall the brush caps.
Remove any hair or debris from the square and
hexagonal pegs on the opposite side of the
brushes.
Reinstall the brushes in the robot. Match the
shape of the brush pegs with the shape of the
brush icons in the cleaning head module.
1
2
3
4
Cleaning the Multi-Surface Brushes
Cleaning the Front Caster Wheel
Pull rmly on the front wheel module to remove it
from the robot.
Pull rmly on the wheel to remove it from its
housing (see illustration below).
Remove any debris from inside the wheel cavity.
Reinstall all parts when nished. Make sure the
wheel clicks back into place.
Important: A front wheel clogged with hair and
debris could result in damage to your oor. If the
wheel is not spinning freely after you have cleaned
it, please contact Customer Care.
1
2
3
4
Wheel
Axle
Housing
Removing Debris from
Blower Cover
Inspect blower cover for any lint
or debris build-up, and wipe
with a clean dry cloth to remove.
