ATTACHMENT
27
EN
428000377137 FIJI
USE AND MAINTENANCE MANUAL
1

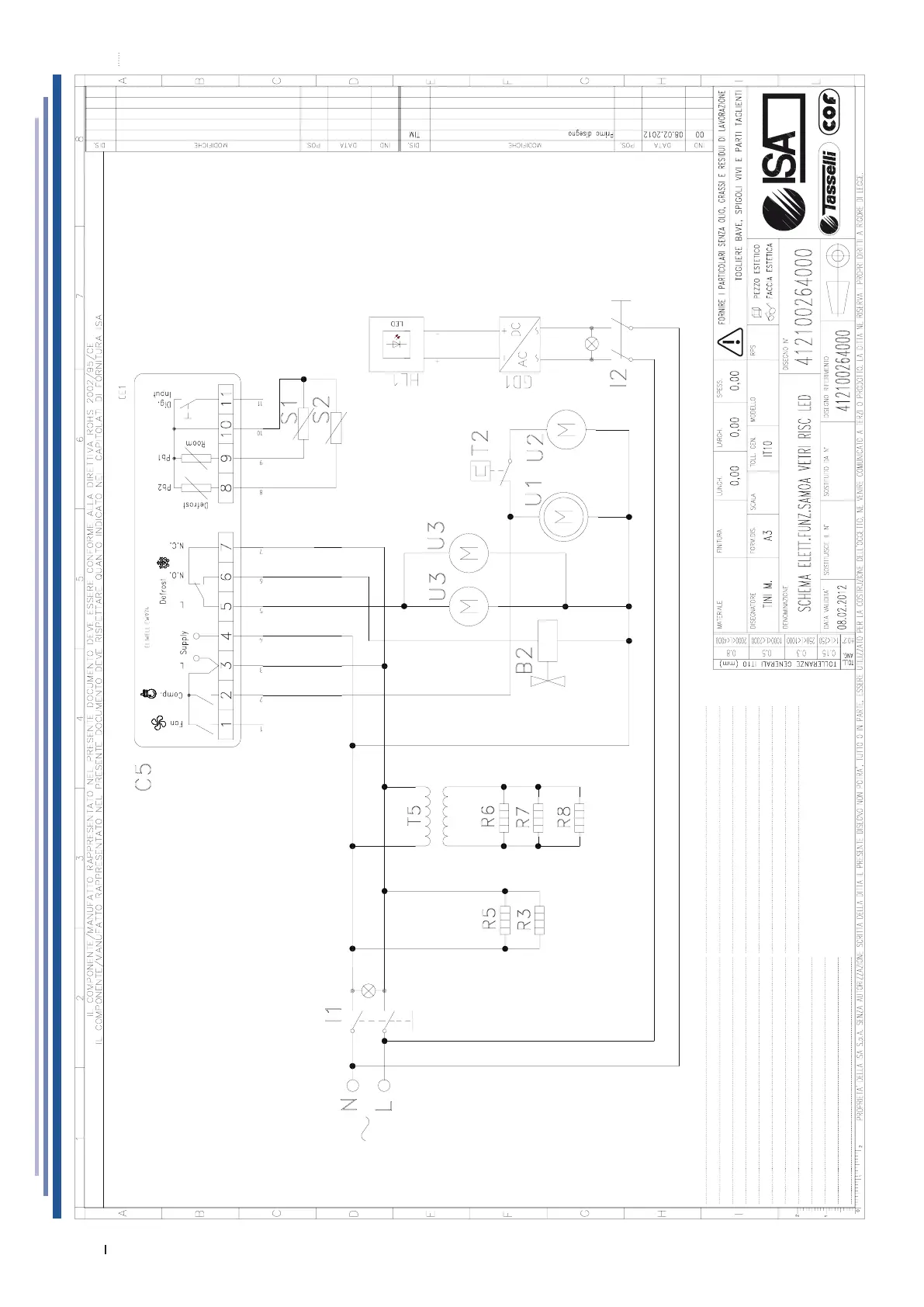

WIRING DIAGRAM - 412100264000
B2
DEFROST SOLENOID VALVE
C5 ELECTRONIC CONTROL BOARD
I1 SHOWCASE SWITCH
I2 LIGHT SWITCH
GD1 FEEDER
HL1 LED
R3 PERIMETER TRIM HEATER
R5 FRONT TRIM HEATER
R6 RIGHT SIDE GLASS HEATING RESISTANCE
R7 FRONT SIDE HEATING RESISTANCE
R8 LEFT SIDE GLASS HEATING RESISTANCE
S1 TEMPERATURE PROBE
S2 DEFROST PROBE
T2 THERMOSTAT
T5 TRANSFORMER
U1 COMPRESSOR
U2 CONDENSATION FAN
U3 EVAPORATOR FAN
