ISA FIJI - Page 28

ATTACHMENT
28
EN
428000377137 FIJI
USE AND MAINTENANCE MANUAL
2

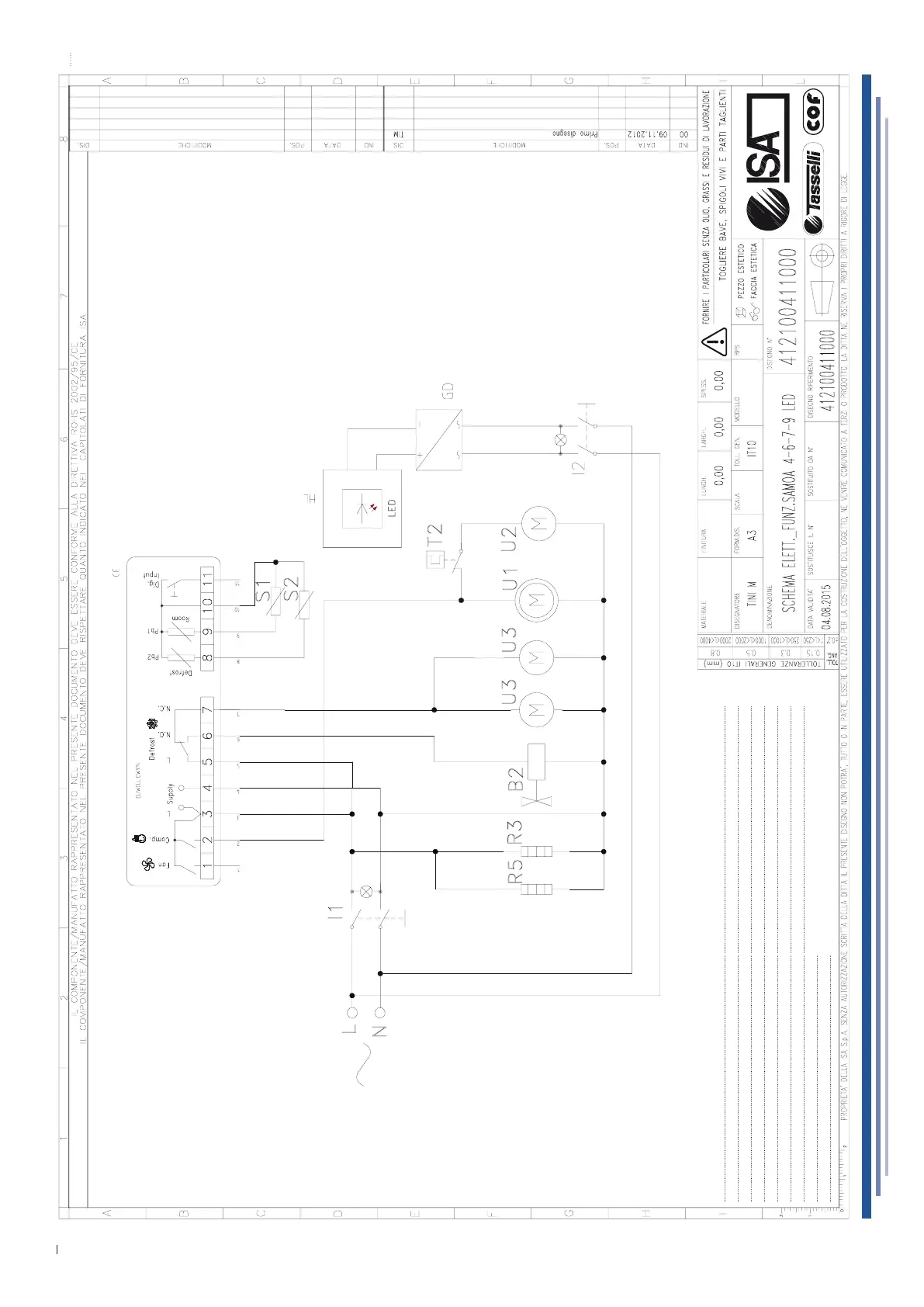

WIRING DIAGRAM - 412100411000
B2
DEFROST SOLENOID VALVE
CE ELECTRONIC CONTROLLER GD LED POWER SUPPLY HL LED LIGHTING I1 SHOWCASE SWITCH I2 LIGHT SWITCH R3 PERIMETER TRIM HEATER R5 FRONT TRIM HEATER
S1 TEMPERATURE PROBE S2 DEFROST PROBE T2 THERMOSTAT U1 COMPRESSOR U2 CONDENSATION FAN U3 EVAPORATOR FAN
