4 280 11332 8 ac • 11 • 03/2003
I GB F D
ALLEGATO
ATTACHMENT
ANNEXE
BEIGEFUGT
1

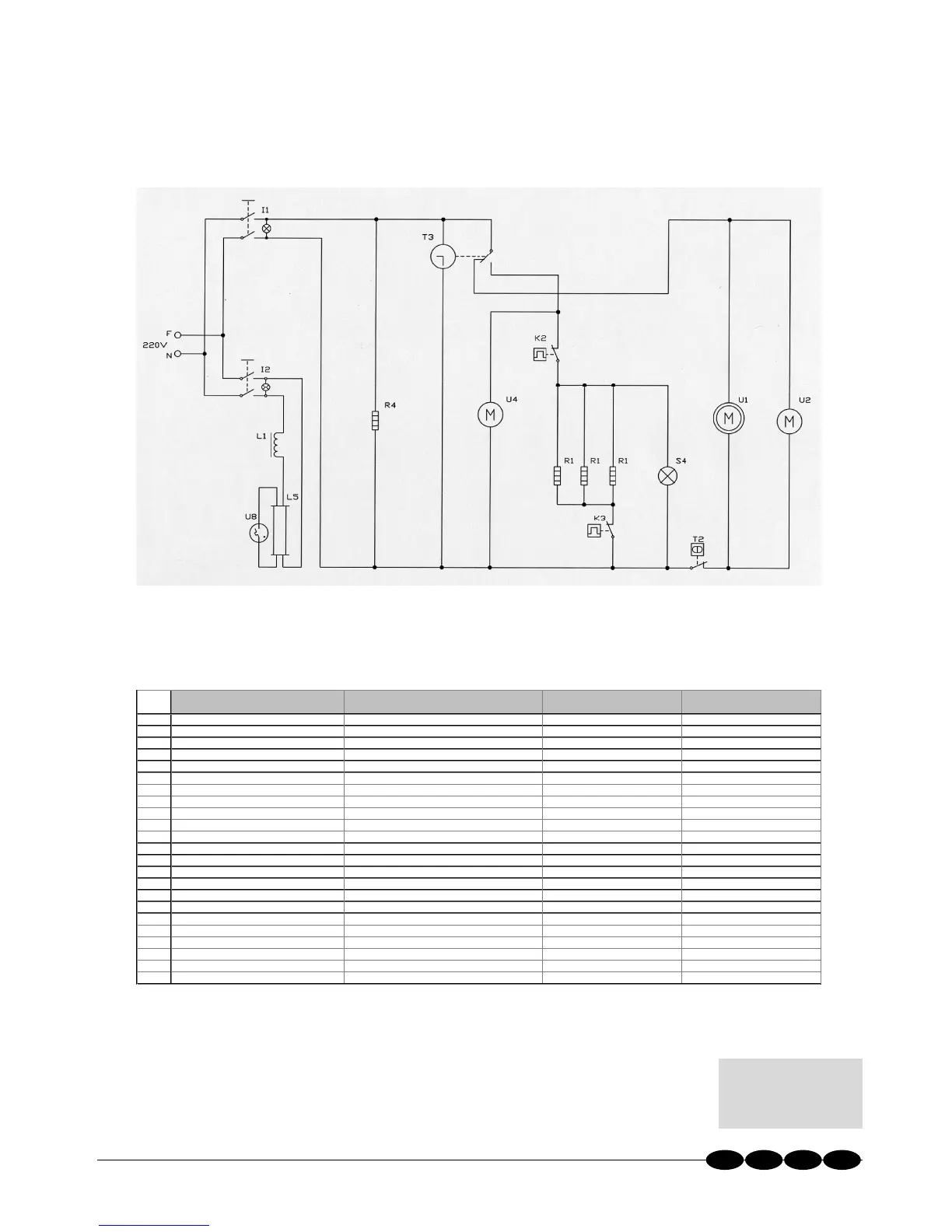

SCHEMA ELETTRICO FUNZIONALE - WORKING ELECTRICAL DIAGRAM
SCHEMA ELECTRIQUE FONCTIONAL - BETRIEBSELEKTROSCHEMA
ISETTA
4 - 6R - 7R - 9R
(412 1 00109 300)
I GB F D
I1
INTERRUTTORE FRIGO VETRINA CABINET SWITCH INTERRUPTEUR VITRINE SCHALTER VITIRNE
I2
INTERRUTTORE ILLUMINAZIONE LIGHTING SWITCH INTERRUPTEUR ECLAIRAGE LICHT SCHLATER
K2
KLIXON FINE SBRINAMENTO KLIXON FOR END OF DEFROSTING KLIXON DEGIVRAGE KLIXON ENDE DER ABTAUUNG
K3
KLIXON DI SICUREZZA THERMAL PROTECTOR KLIXON KLIXON
L1
REATTORE MONOLAMPADA REACTOR REACTEUR MONOLAMPE MONOLAMPE REAKTOR
L5
TUBO FLUORESCENTE T8 FLUORESCENT LAMP T8 TUBE FLUORESCENT T8 FLUORESZIERENDES ROHR T8
R1
RESISTENZA CORAZZATA SBRINAMENTO EVAPORATOR DEFROSTING HEATING RESISTOR RESISTANCE DEGIVRAGE ABTAUUNGS HEIZUNG
R4
RESISTENZA SCALDANTE PIANETTO HEATING RESISTOR WORKING SURFACE RESISTANCE CHAUFFANTE PLAN HEIZUNG ARBEITSPLATTE
S4
SPIA SBRINAMENTO DEFROSTING LIGHT TEMOIN DEGIVRAGE ABTAUUNGS LAMPE
T2
TERMOSTATO THERMOSTAT THERMOSTAT THERMOSTAT
T3
TEMPORIZZATORE TIMER TEMPORISATEUR Timer
U1
COMPRESSORE COMPRESSOR COMPRESSEUR KOMPRESSOR
U2
VENTILATORE CONDENSATORE CONDENSER FAN VENTILATEUR CONDENSATEUR VENTILATOR DES KONDENSATOR
U4
VENTILATORE PULIZIA CLEANING FAN VENTILATEUR NETTOYAGE REINIGUNGS VENTILATOR
U8
STARTER STARTER STARTER STARTER
