4 280 11332 8 ac • 12 • 03/2003
I GB F D
ALLEGATO
ATTACHMENT
ANNEXE
BEIGEFUGT
1

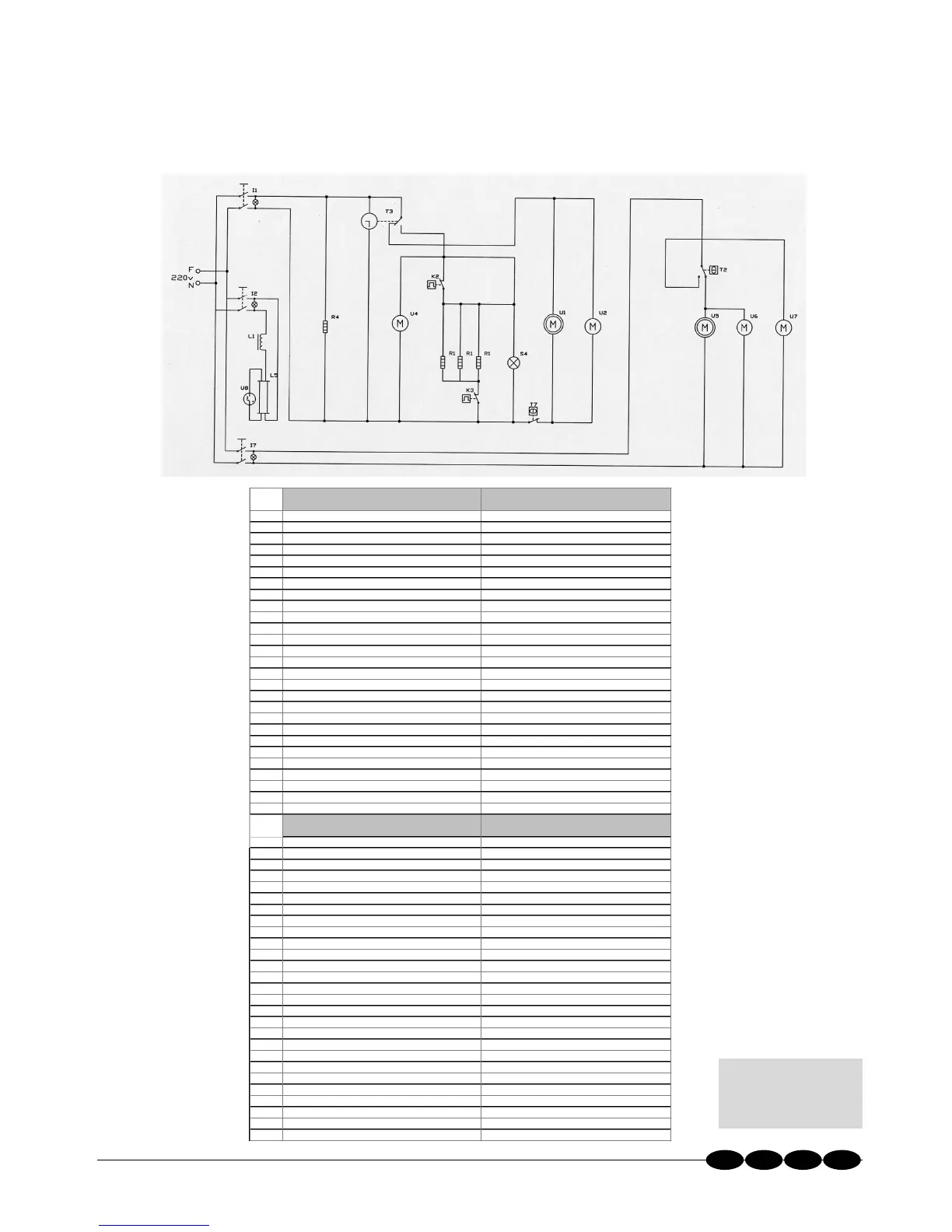

SCHEMA ELETTRICO FUNZIONALE - WORKING ELECTRICAL DIAGRAM
SCHEMA ELECTRIQUE FONCTIONAL - BETRIEBSELEKTROSCHEMA
ISETTA
12R
(412 1 19182 300)
I GB
I1 INTERRUTTORE FRIGO VETRINA CABINET SWITCH
I2 INTERRUTTORE ILLUMINAZIONE LIGHTING SWITCH
I7 INTERRUTTORE FRIGO CELLA DI RISERVA STORAGE SWITCH
K2 KLIXON FINE SBRINAMENTO KLIXON FOR END OF DEFROSTING
K3 KLIXON DI SICUREZZA THERMAL PROTECTOR
L1 REATTORE MONOLAMPADA REACTOR
L5 TUBO FLUORESCENTE T8 FLUORESCENT LAMP T8
R1 RESISTENZA CORAZZATA SBRINAMENTO EVAPORATOR DEFROSTING HEATING RESISTOR
R4 RESISTENZA SCALDANTE PIANETTO HEATING RESISTOR WORKING SURFACE
S4 SPIA SBRINAMENTO DEFROSTING LIGHT
T2 TERMOSTATO THERMOSTAT
T3 TEMPORIZZATORE TIMER
T7 TERMOSTATO CELLA DI RISERVA STORAGE THERMOSTAT
U1 COMPRESSORE COMPRESSOR
U2 VENTILATORE CONDENSATORE CONDENSER FAN
U4 VENTILATORE PULIZIA CLEANING FAN
U5 COMPRESSORE CELLA STORAGE COMPRESSOR
U6 VENTILATORE CONDENSATORE CELLA DI RISERVA STORAGE CONDENSER MOTOR FAN
U7 VENTILATORE PULIZIA CELLA DI RISERVA STORAGE CLEANING FAN
U8 STARTER STARTER
F D
I1 INTERRUPTEUR VITRINE SCHALTER VITIRNE
I2 INTERRUPTEUR ECLAIRAGE LICHT SCHLATER
I7 INTERRUPTEUR CELLULE DE RISERVE RESERVEFACHSCHALTER
K2 KLIXON DEGIVRAGE KLIXON ENDE DER ABTAUUNG
K3 KLIXON KLIXON
L1 REACTEUR MONOLAMPE MONOLAMPE REAKTOR
L5 TUBE FLUORESCENT T8 FLUORESZIERENDES ROHR T8
R1 RESISTANCE DEGIVRAGE ABTAUUNGS HEIZUNG
R4 RESISTANCE CHAUFFANTE PLAN HEIZUNG ARBEITSPLATTE
S4 TEMOIN DEGIVRAGE ABTAUUNGS LAMPE
T2 THERMOSTAT THERMOSTAT
T3 TEMPORISATEUR Timer
T7 THERMOSTAT CELLULE DE RESERVE RESERVEFACH THERMOSTAT
U1 COMPRESSEUR KOMPRESSOR
U2 VENTILATEUR CONDENSATEUR VENTILATOR DES KONDENSATOR
U4 VENTILATEUR NETTOYAGE REINIGUNGS VENTILATOR
U5 COMPRESSEUR CELLULE Eiskammer Kompressore
U6 VENTILATEUR CONDENSATEUR CELLULE DE RESERVE VENTILATOR DES KONDENSATOR RESERVEFACH
U7 VENTILATEUR NETTOYAGE CELLULE DE RESERVE REINIGUNGS VENTILATOR RESERVEFACH
U8 STARTER STARTER
