ISM SV-260 User Manual

13

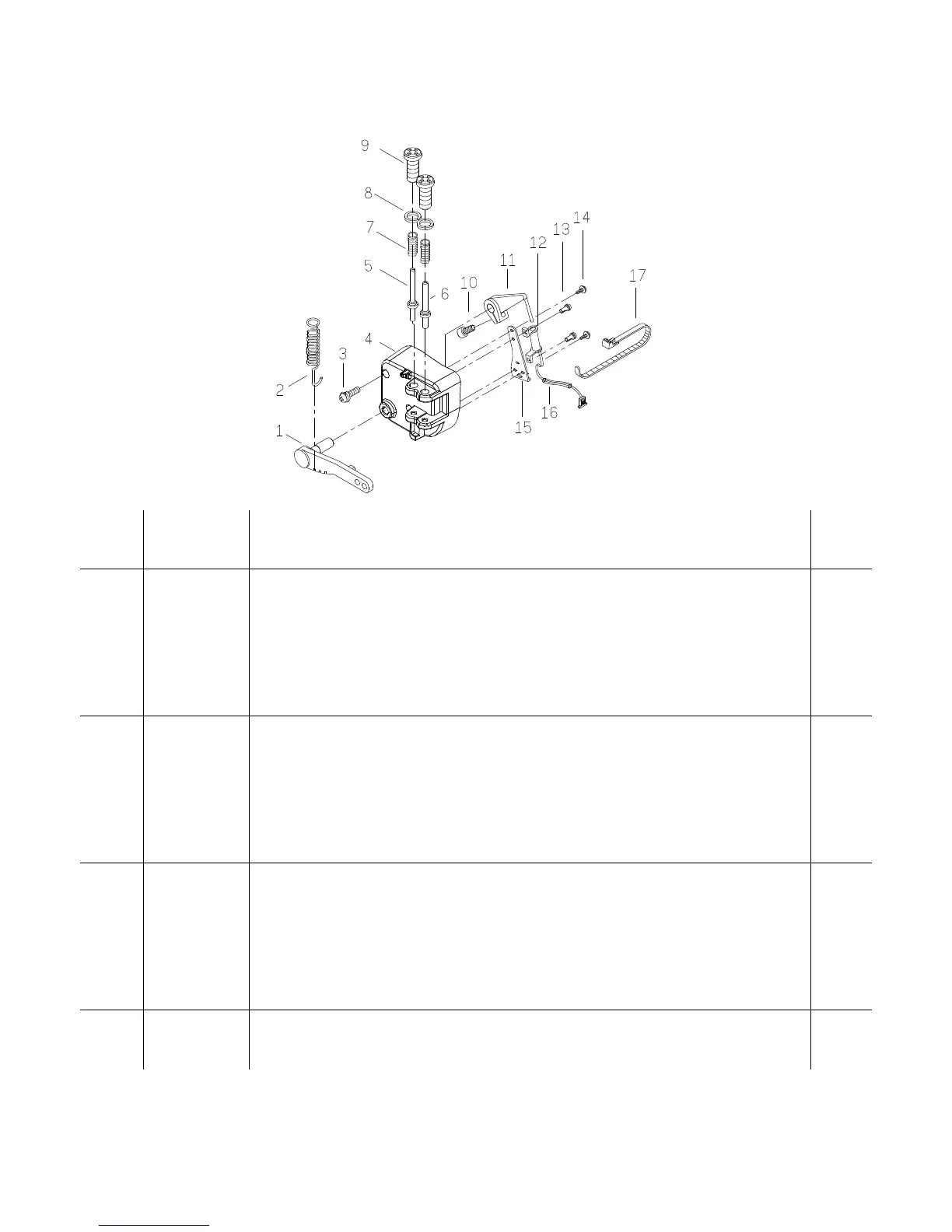

PEDAL SENSOR BASE PARTS LIST
速度基座零件表
No. Parts No.
English Description Chinese Description
Specification AMT
編號
品 號
英文品名 中文品名
規格 數量
1 AAB00410
Pedal sensor lever arm 速度基座拉臂
1
2 AGK00010
Pedal sensor lever arm spring 速度基座拉臂彈簧
1.6x74.5L
1
3 AGA0416A
Screw +Spring washer +Washer 螺絲+彈簧華司+平華司
M4xS4x10x1.5Tx16L
3
4 ACE00050
Pedal sensor side cover 速度基座側蓋板
1
5 ABD00240
Pedal sensor control pin ( 1 ) 速度基座制動銷 (一)
1
6 ABD00250
Pedal sensor control pin ( 2 ) 速度基座制動銷 (二)
1
7 AGK00030
Pedal sensor adjusting spring 速度基座調整彈簧
1.0x44L
2
8 ABD00050
Pedal sensor adjusting nut 速度基座調整螺帽
M12xP1.0x15xT2.5
2
9 ACF00010
Pedal sensor plastic adjusting screw 速度基座塑膠調整螺絲 M12xP1.0x21L
2
10 AGA0512G
Hexagon screw
螺絲(六角承窩頭) M5x12L
1
11 AAC00010
Induction arm
速度基座感應臂
1
12 BDA00010
Coil saddle
速度基座線圈座組
1
13 AGQ00040
Nylon pin
尼龍鉚釘
2
14 AGA0306E
Self tapping screw 尖頭木螺絲 #3x6L
2
15 ADA01110
Coil saddle fixing piece
線圈座固定片
1
16 CKM00081
Induction wiring connector 感應連接線與透明膠套
1
17 BBH01200
Ties Support 束帶
1
