the NVNumericWritable component the “link back-forward” strategy needs to be applied.
There is a possibility to change the value from LCD by selecting the Set action. To do this,
use the arrow up/down keys - add/subtract the value of the step. The step field value can
be inputted in the application and changed by using keys F1, F2 (multiplying or dividing
the step value by 10).

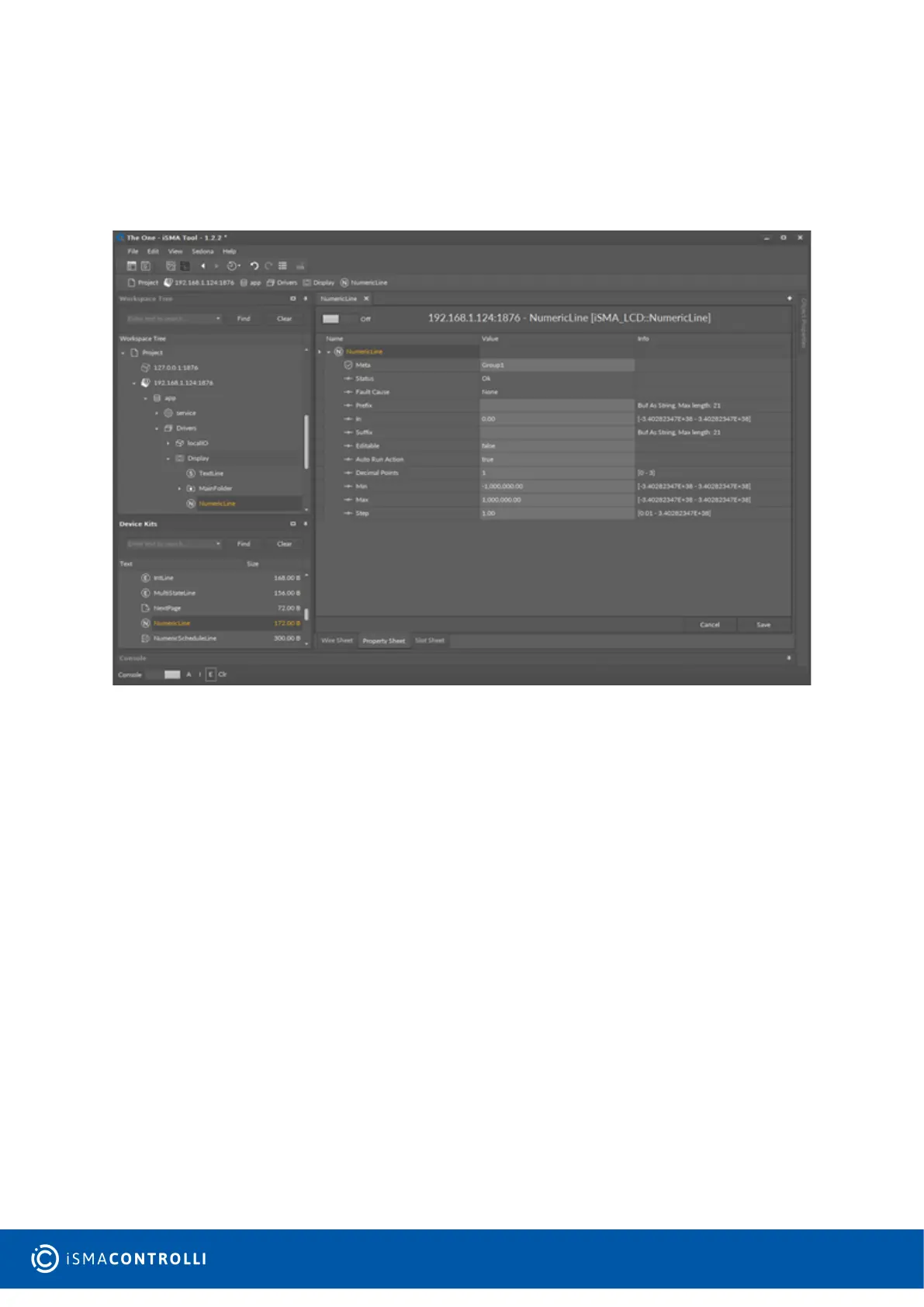

Figure 6. NumericLine component
Slots
The NumericLine component has the following slots:
Status: the current status of the component;
Fault Cause: indicates the fault cause of the component;
Prefix: static text which is displayed before the Numerical value (left aligned);
In: the numeric value;
Suffix: static text which is displayed after the Numerical value (right aligned);
Editable: switch on/off for editing of variables;
Auto Run Action: automatically goes to editing set action, without action selection
(only for components which support 1 action);
Decimal Points: displays the number of decimal places;
Min: minimum value of the variable that can be set;
Max: maximum value of the variable that can be set;
Step: single change value in editing.
5.1.4 BoolLine
The BoolLine component is used to display and edit the Boolean variables (true/false).
The component offers the option to input different texts that will appear separately for
