Auto Run Action: automatically goes to editing set action, without action selection
(only for components which support 1 action).
5.1.7 BooleanScheduleLine
The BooleanScheduleLine component is used to display and edit the Boolean schedule.
The displayed text may be preceded by a description on the left side (prefix), e.g., the
name as well as on the right (suffix), e.g., the units.
To make the schedule line working, the component’s input must be connected to
schedule component used in application output (from the iSMA_controlApi kit) and the
Editable slot must be set to true. To make sure that the value on the LCD is synchronized
with the changes in the application the “link back-forward” strategy needs to be applied.

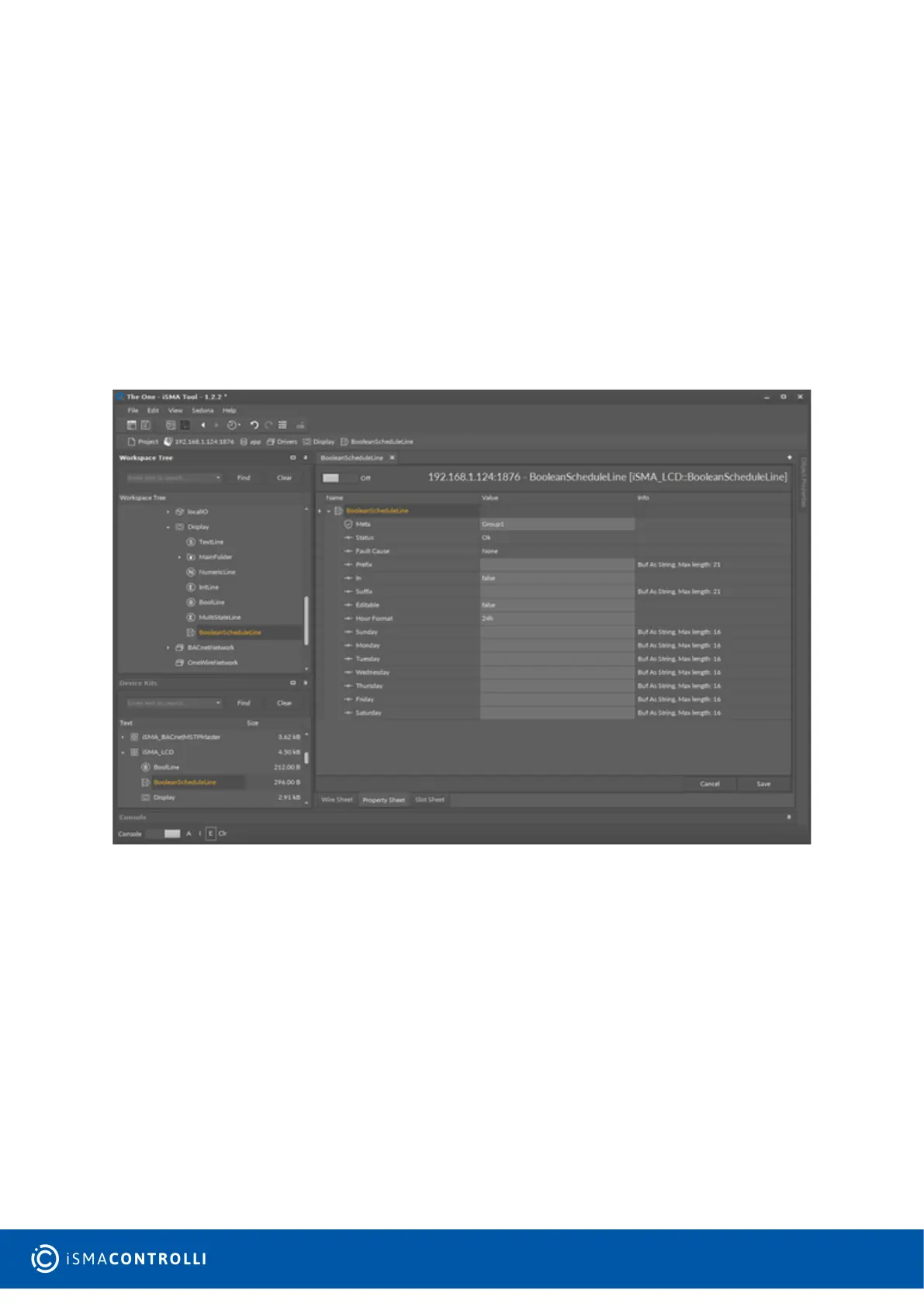

Figure 10. BooleanScheduleLine component
Slots
The BooleanScheduleLine component has the following configuration slots:
Status: the current status of the component;
Fault Cause: indicates the fault cause of the component;
Prefix: static text displayed before the numeric value (left-aligned);
In: schedule current output value;
Suffix: static text displayed after the numeric value (right-aligned);
Editable: switches on/off for variables editing;
Hour format: changes hour display format (24h or AM/PM),
Slots from Sunday to Saturday: define days names; if the slot is empty, the display will
take English day names.
