Going to the next page (after Saturday) the configuration page becomes available.
The configuration page has the following slots:
Def value: edits the schedule output default value;
Hour format: changes the hour display format (24h or AM/PM);
Decimal Points (only numeric): displays the number of decimal places;
Clean weekly schedule: clears all events in the schedule.
5.1.8 NumericScheduleLine
The NumericScheduleLine component is used to display and edit the numeric schedule.
The displayed text may be preceded by a description on the left side (prefix), e.g., the
name as well as on the right (suffix), e.g., the units.
To make the schedule line working, the component input must be connected to schedule
component used in application output (from the iSMA_controlApi kit), and the Editable
slot must be set to true. To make sure that the value on the LCD is synchronized with the
changes in the application the “link back-forward” strategy needs to be applied.

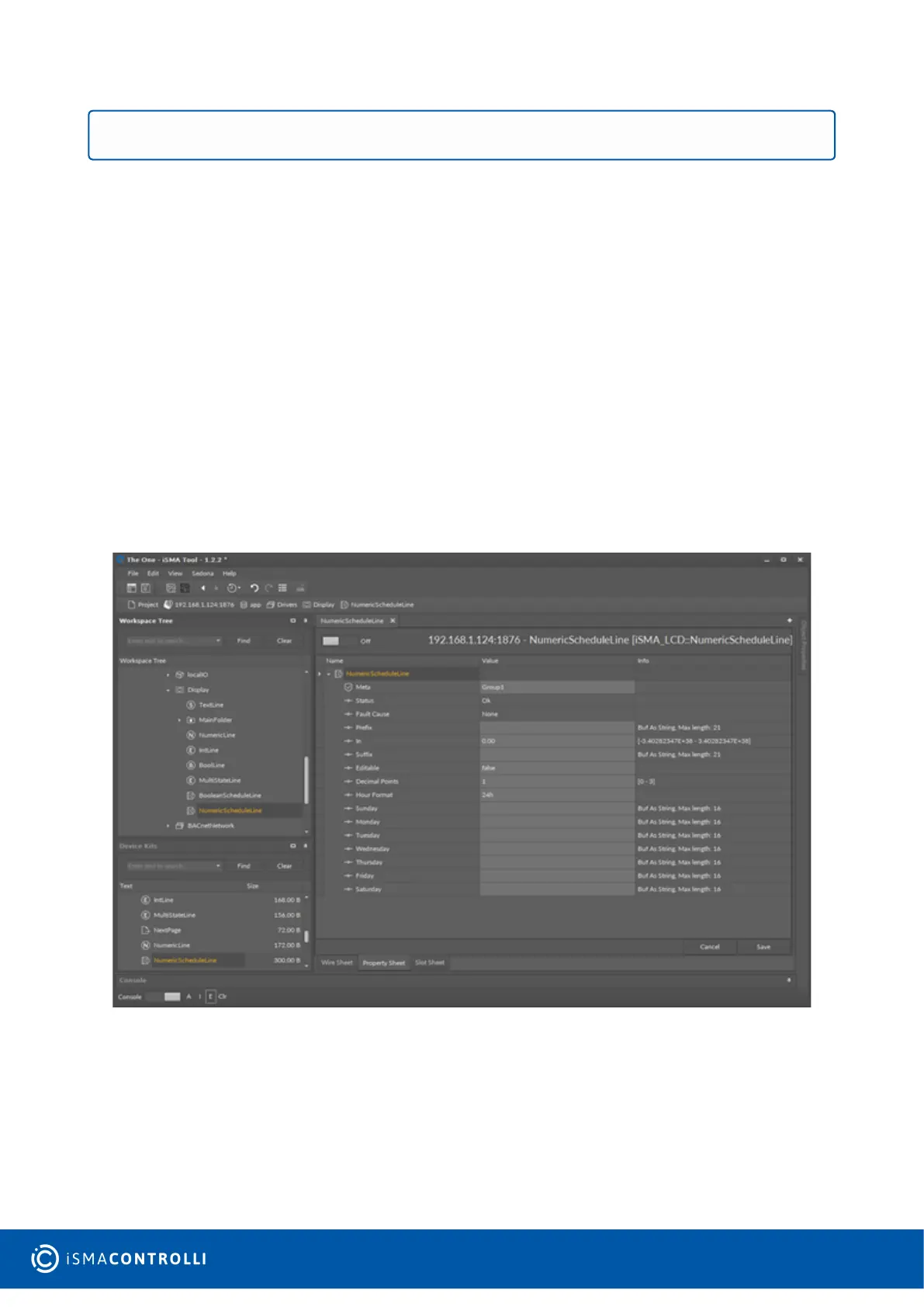

Figure 11. NUmericScheduleLine component
Slots
The NumericScheduleLine component has the following configuration slots:
Status: the current status of the component;
Fault Cause: indicates the fault cause of the component;
Prefix: static text displayed before the numeric value (left-aligned);
In: schedule current output value;
WARNING! To set or remove null or nan value, press and hold the F2 key.
