SERVICE INF
ORMATION 00 – 29

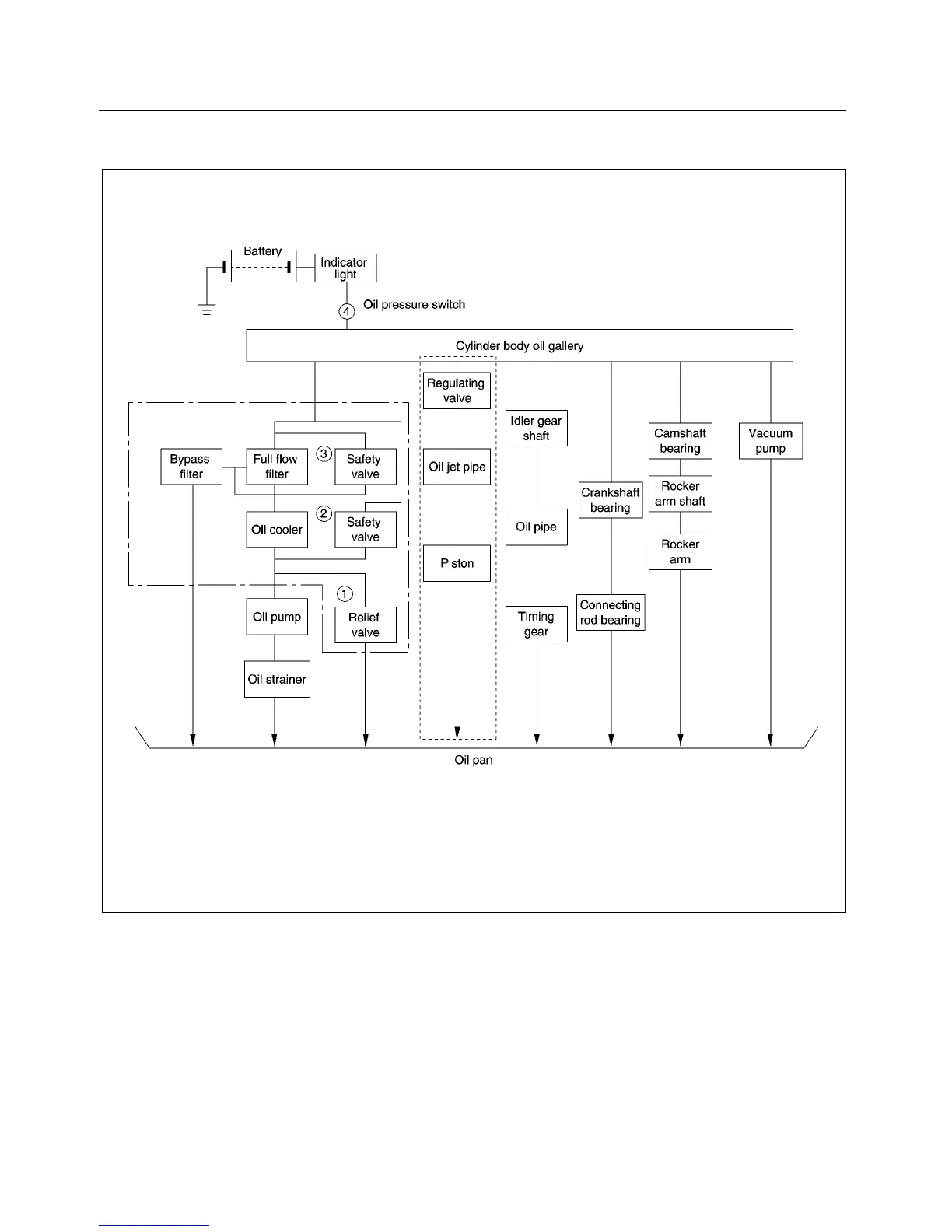

LUBRI
CATION CHART
T
he 4J Series engine lubricating system is a full flow type.
Lubricating oil is pumped from the oil pump to the cylinder body oil gallery through the oil cooler and the oil filter
(replaceable type oil filters have on oil cooler). It is then delivered to the vital parts of the engine from the cylinder
body oil gallery.
4J
B1, 4JB1TC, 4JG2, Oil Filter & Oil Cooler
k
Pa (Kg/cm
2
/ps
i)
!
O
il filter relief valve opening pressure : 559 - 0618 (5.7 - 6.3/81 - 90)
"
O
il cooler safety valve opening pressure : 314 - 373 (3.2 - 3.8/46 - 54)
#
O
il filter safety valve opening pressure : 78 - 118 (0.8 - 1.2/11 - 19)
$
O
il pressure switch opening pressure : 29.4 - 49.0 (0.3 - 0.5/4.3 - 7.1)
Lubu C
hart 5J.tif

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Isuzu 4JB1 and is the answer not in the manual?

Isuzu 4JB1 Specifications

General IconGeneral
Displacement2.8 L (2771 cc)
Bore x Stroke93 mm x 102 mm
Compression Ratio18.4:1
Fuel SystemIndirect Injection
AspirationNaturally Aspirated
Cooling SystemWater-cooled
Engine TypeInline 4-cylinder diesel
Max Power85 hp (63 kW) at 3600 rpm
Valve TrainOHV
