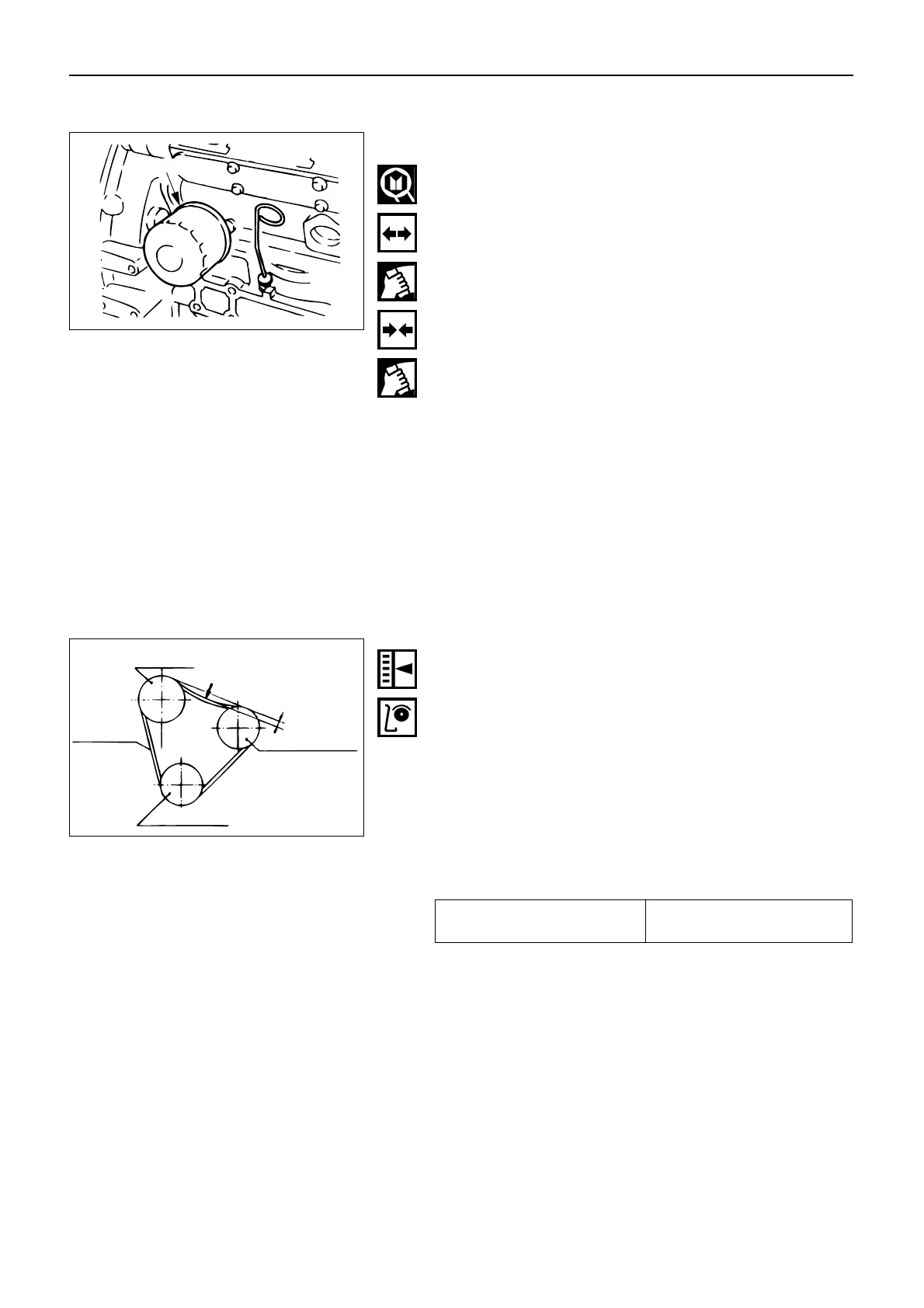

Cartridge (Spin-On) Type
Removal
Remover and Installer: Filter Wrench
1. Loosen the used oil filter by turning it counterclock-
wise with the filter wrench.
2. Discard the used oil filter.
Installation
1. Wipe the oil filter mounting face with a clean rag.
This will allow the new oil filter to seat properly.
2. Lightly oil the O-ring.
3. Turn in the new oil filter until the sealing face is fit-
ted against the O-ring.
4. Use the filter wrench to turn in the oil filter an addi-
tional 3/4 of a turn or one turn.
5. Check the engine oil level and replenish to the speci-
fied level if required.
6. Start the engine and check for oil leakage from the
oil filter.
2. LUBRICATIN SYSTEM
3. COOLING SYSTEM
Cooling Fan Drive Belt
Adjustment
1. Check the cooling fan drive belt for cracking and
other damage.
2. Check the drive belt tension by exerting a force of 98
N (10 kg) midway between the Fan pulley 1 and the
Generator pulley 2.
3. Adjust the belt tension by loosening the Generator
mounting bolt and the Generator adjusting bolt and
pivoting the Generator.
Be sure to retighten the bolts after adjusting the belt
tension.
mm (in)
Cooling Fan Drive 7.5 – 8.5
Belt Deflection (0.3 – 0.33)
