ENGINE ELECTRICALS

165

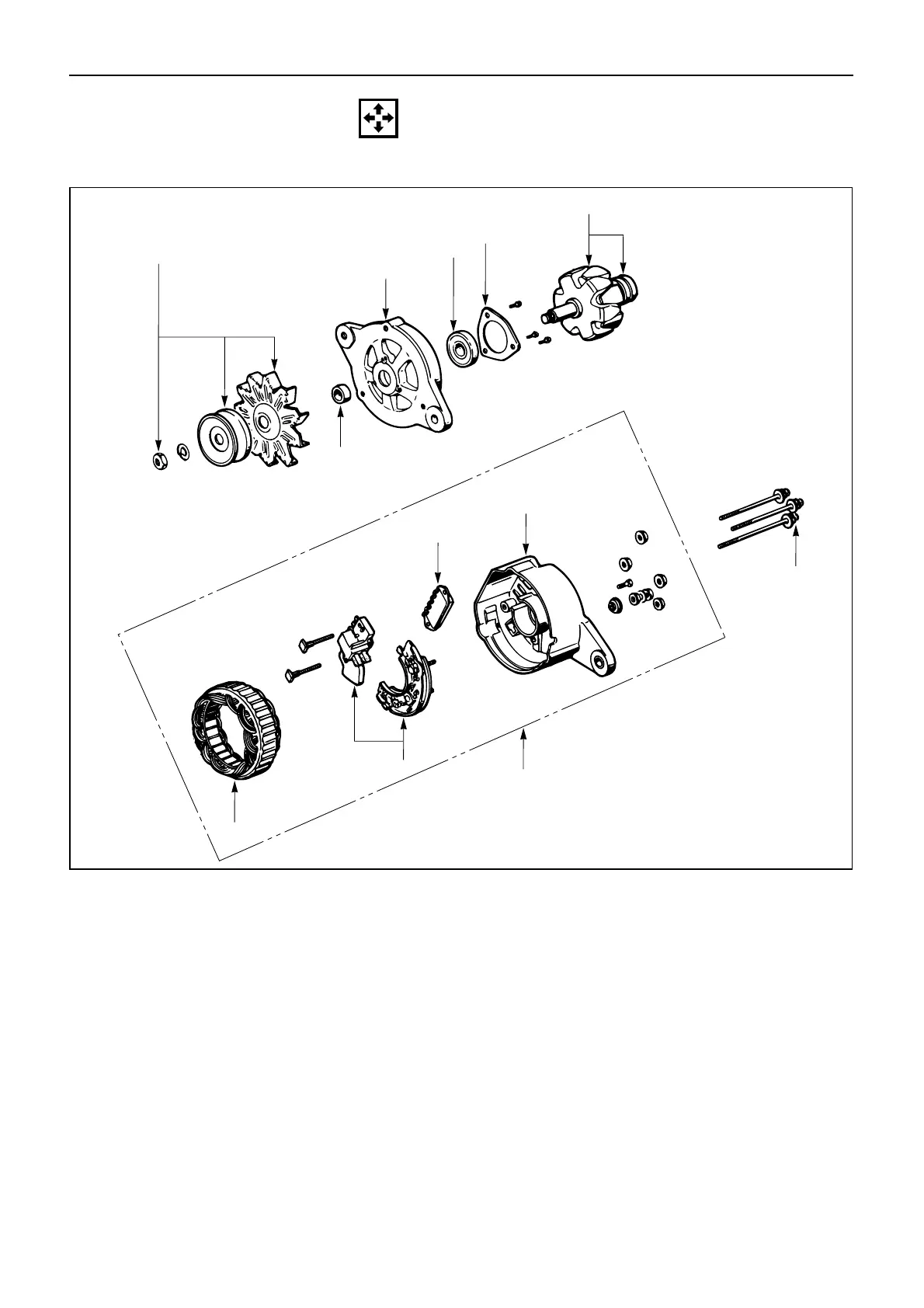

DISASSEMBLY

These disassembly steps are based on the built-in IC regulator type.

Disassembly Steps

1. Through bolt

2. Rear cover and stator

▲ 3. Pulley and fan

▲ 4. Spacer collar

5. Rotor with bearing

6. Bearing retainer

7. Ball bearing

8. Front cover

▲ 9. Stator

▲ 10. Rectifier with brush holder

11. IC regulator

12. Rear cover

3

8

7

6

5

4

1

12

11

2

10

9
