ENGINE ELECTRICALS

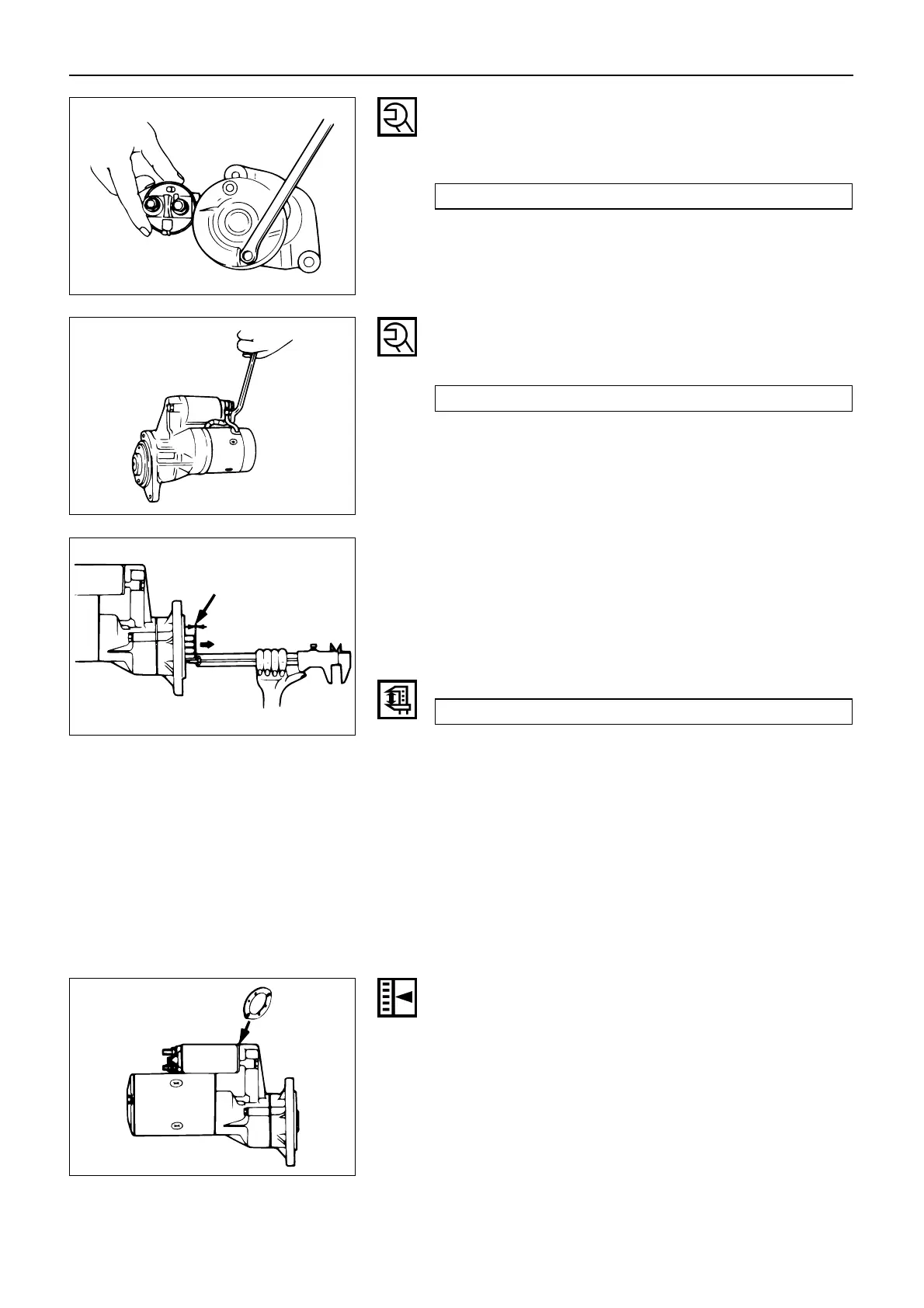

19. Through Bolt
Tighten the through bolts to the specified torque a
little at a time.
Through Bolt Torque kgf·m(lb.ft./N·m)
0.5 – 0.7 (3.6 – 5.1/4.9 – 6.9)
161
20. Lead Wire
Tighten the lead wire to the specified torque.
Lead Wire Torque kgf·m(lb.ft./N·m)
0.8 – 1.0 (5.8 – 7.2/7.8 – 9.8)
Inspection After Reassembly
The pinion jumps out as the magnetic switch “S” termi-
nals is connected to the battery positive terminal and
negative terminal is connected to the gear case.
Check the difference between the point to which the
pinion is jumped out and point to which pinion can be
pulled out (in direction of arrow) with fingers.
Pinion Gap mm(in.)
0.3 – 1.5 (0.012 – 0.060)
When checking the pinion gap avoid keeping magnetic
switch engaged for more than 30 seconds.
When Pinion Gap Deviates From Specified Value
Make and adjustment using a shim.
Adjusting shims are available in thicknesses of 0.5 mm
(0.02 in.) and 0.8 mm (0.03 in.)
To Next Page
