MAINTENANCE
COOLING SYSTEM

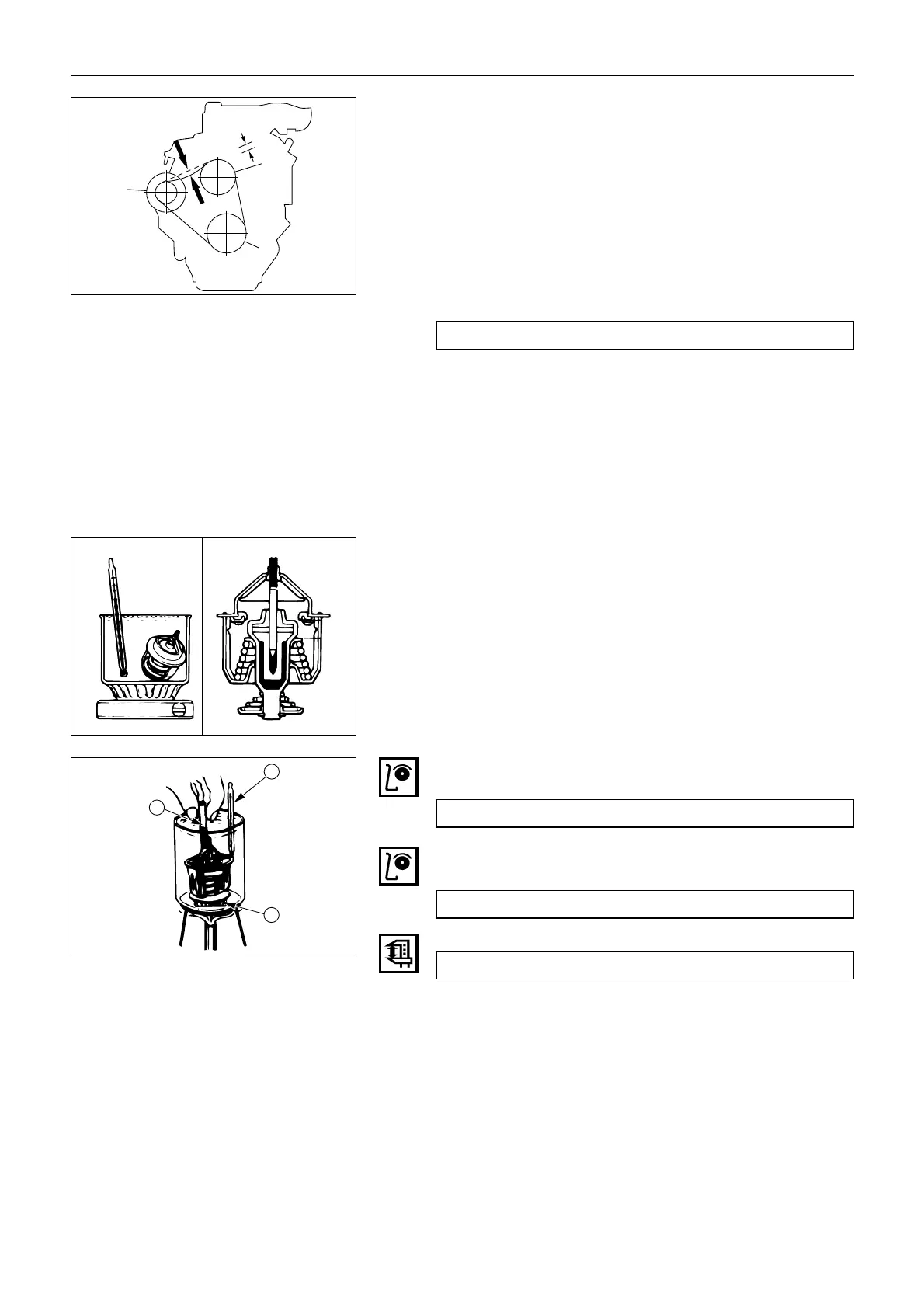

Cooling Fan Drive Belt
Fan belt tension is adjusted by moving the alternator.
A Crankshaft damper pulley
B Alternator pulley
C Cooling fan drive pulley
D Depress the drive belt mid-portion with a 10 kgf (22
lb/98 N) force.
Drive Belt Deflection mm(in.)
10.0 (0.39)
Thermostat
Operating Test
1. Completely submerge the thermostat in water.
2. Heat the water.
Stir the water constantly to avoid direct heat being
applied to the thermostat.
3. Check the thermostat initial opening temperature.
Thermostat Initial Opening Temperature °C(°F)
82 (180)
4. Check the thermostat full opening temperature.
Thermostat Full Opening Temperature °C(°F)
95 (203)
Valve Lift at Fully Open Position mm(in.)
8.0 (0.315)
1 Thermostat
2 Agitating Rod
3 Wooden Piece
