Isuzu FORWARD - Air Suspension Vehicle Height Initial Adjustment

Air suspension vehicle height initial adjustment
1. Air suspension vehicle height initial adjustment
description of function
Air suspension vehicle height initial adjustment
To absorb weight fluctuations of the body, the initial
settings to store the normal vehicles height position must
always be done after mounting the rear body and with the
vehicle empty at the dealership prior to vehicle delivery.
For air-suspension vehicles, it is possible to adjust the
normal vehicle height position to any position, but to
ensure correct vehicle posture and to limit damage to
cargo, it is necessary to achieve the proper suspension
stroke.
2. Air suspension vehicle height initial adjustment
Note：
・ ISUZU air suspension specification
Air spring target height
Adjust the air spring height to the target value.
Vehicle
model
Target value
FRR, FSR ： 215 mm { 8.46 in }
Caution：
・ Always make adjustments on a level road.
・ Do it when the ignition switch is positioned at
"ACC" or "ON".
・ Apply the parking brake securely.
・ The air pressure within the air tank should be
at or higher than the specified value.
Air tank specified pressure： 640 kPa { 6.5 kgf/cm2 }
Caution：
・ Set the height sensor level to be level.
・ Make vehicle height adjustment by operating
the remote controller.
・ Do not adjust the rod length to specified value.
Note：
・ Reference value of frame upper surface height
for adjustment
Vehic
le
model
Tire size Height
FRR 9.5R 17.5
： 785 mm { 30.9
in }
FSR
245/70R 19.5
： 785 mm { 30.9
in }
265/70R 19.5
： 800 mm { 31.5
in }

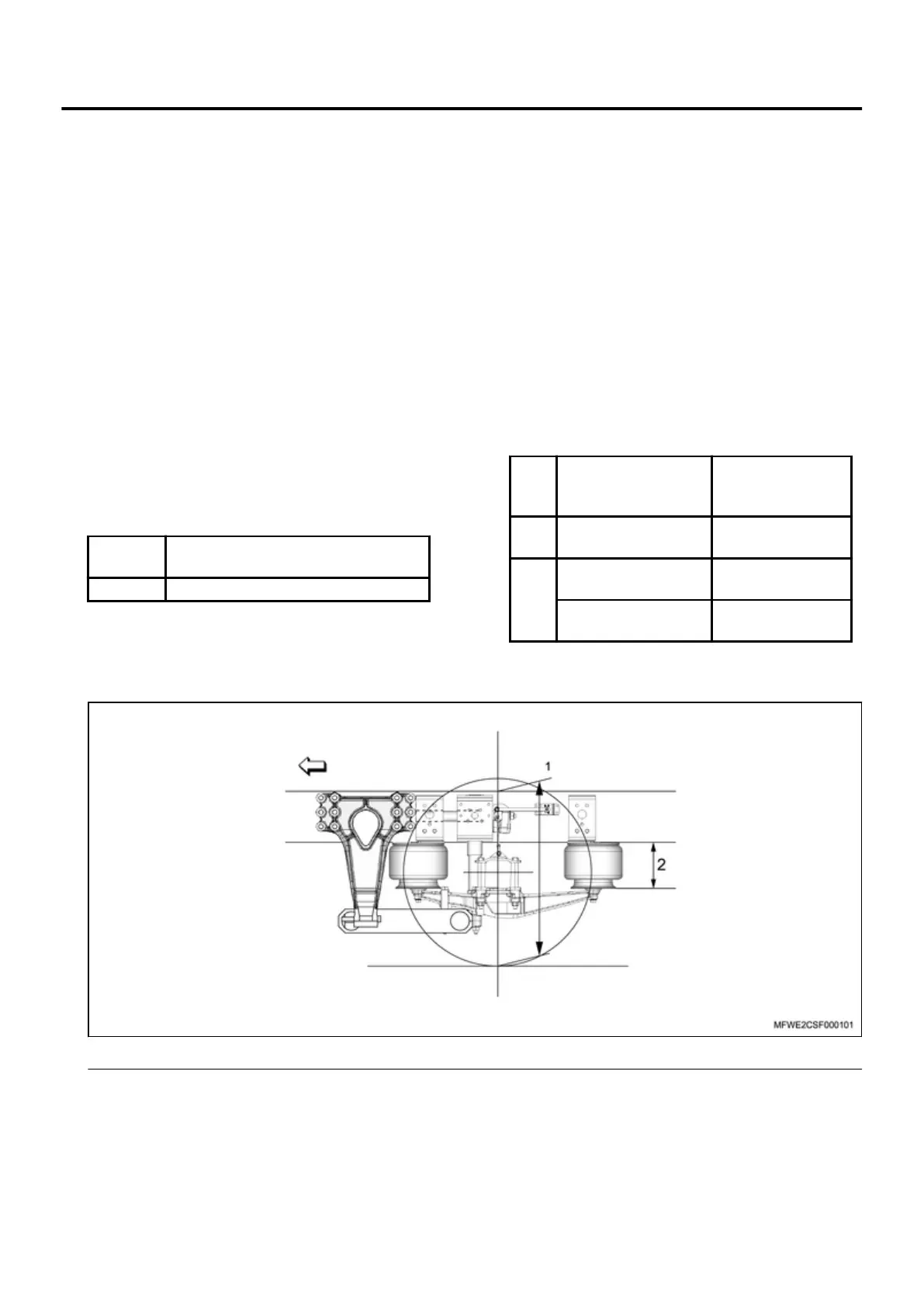

1. Frame upper surface height 2. Air spring height
16C-12 Functional Inspection (All models)
