Note：
・ PRIMAAX suspension type
Target value of air spring height
Adjust the air spring height to the target value.
Vehicle
model
Target values
FVR ： 274 mm { 10.79 in }
Caution：
・ Always make adjustments on a level road.
・ Do it when the ignition switch is positioned at
"ACC" or "ON".
・ Apply the parking brake securely.
・ The air pressure within the air tank should be
at or higher than the specified value.
Air tank specified pressure： 640 kPa { 6.5 kgf/cm2 }
Caution：
・ Set the height sensor level to be level.
・ Make vehicle height adjustment by operating
the remote controller.
・ Do not adjust the rod length to specified value.
Note：
・ Reference value of frame upper surface height
for adjustment
Vehic
le
model
Tire size Height
FVR
275/70R 22.5
： 945 mm { 37.20
in }
295/80R 22.5
： 990 mm { 38.98
in }
11R 22.5
： 990 mm { 38.98
in }
12R 22.5
： 1010 mm { 39.76
in }

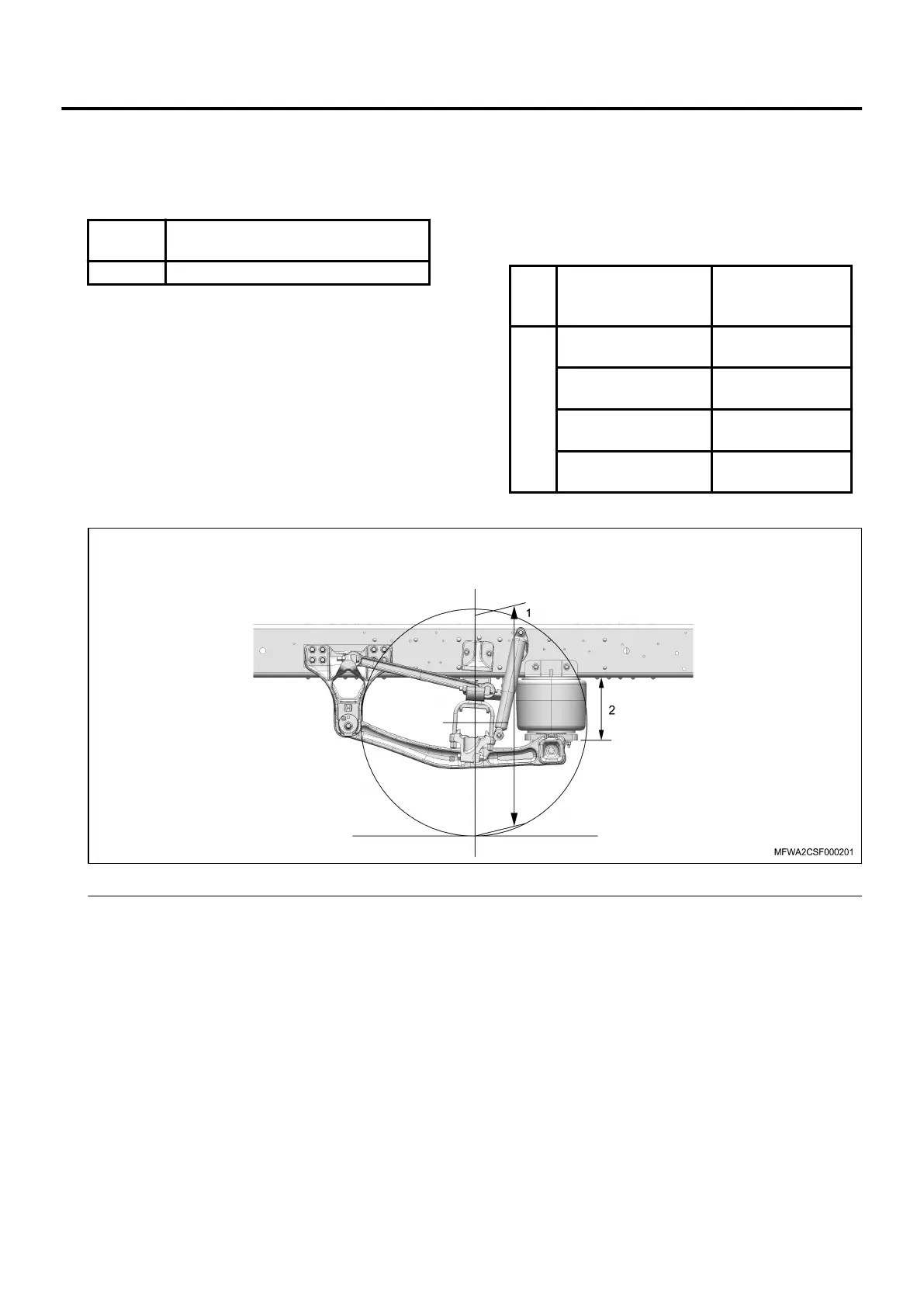

1. Frame upper surface height 2. Air spring height
Functional Inspection (All models) 16C-17
