BRAKE CONTROL SYSTEM
Normal Braking
During normal (non anti-lock) braking, the solenoid valves
are without current and closed due to spring force.
Brake fluid travels through the centre of the normally open
isolation valve around the normally closed dump valve
and on to the brake pistons.

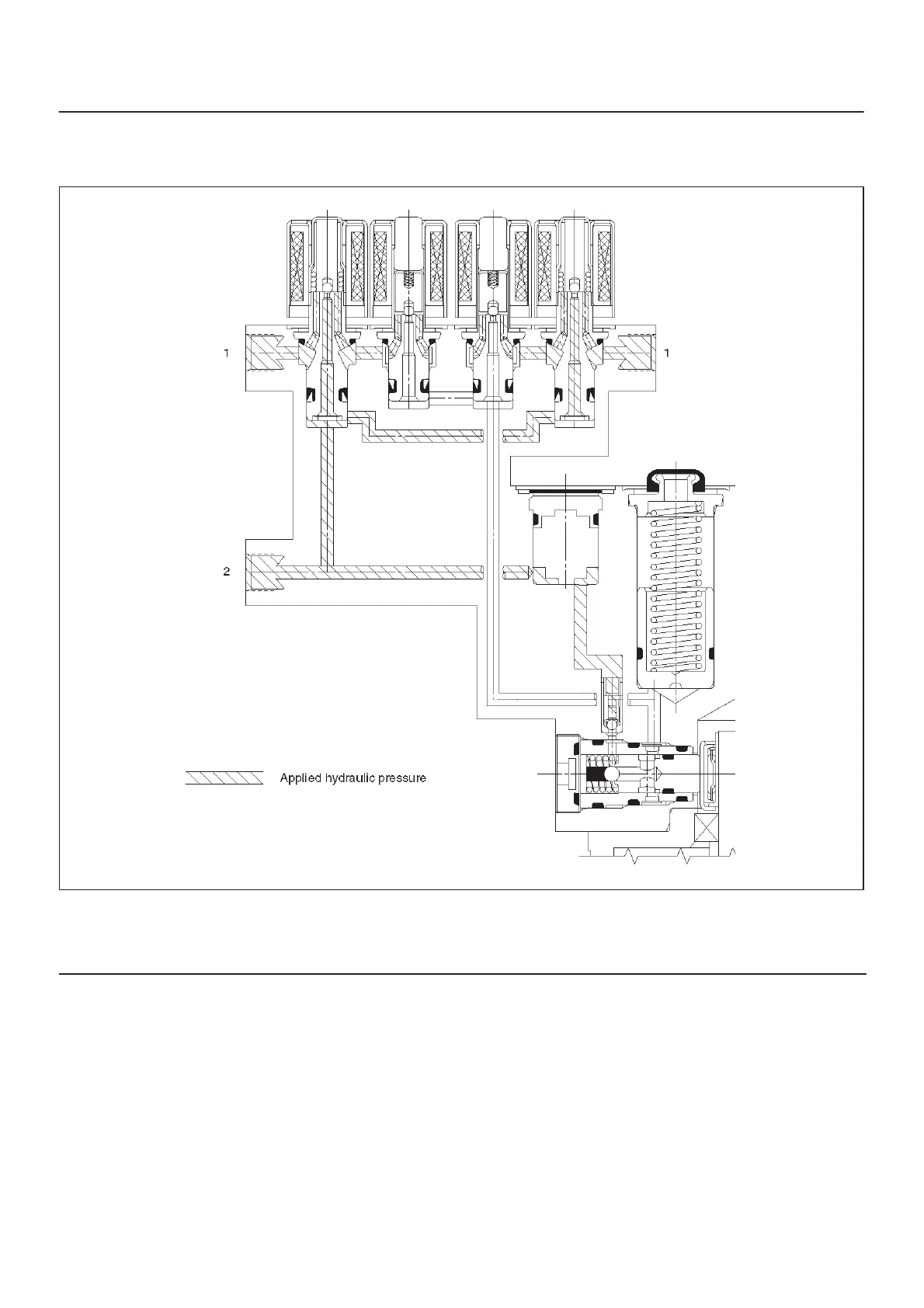

C05RW010
Legend
(1) Brake
(2) Master Cylinder
