CV
Constant voltage mode
Sense
Remote sensing is turned
on.
CR
Constant resistance
mode
Prot
Protection function is
turned on.
CW
Constant power mode
Auto
Voltage range automatically
seleted function is turned
on.
Rmt
Instrument is in the
remote state.
Lock
The keyboard is locked.
Timer
LOAD ON timer is
turned on.
Shift
Shift button has been
pressed.

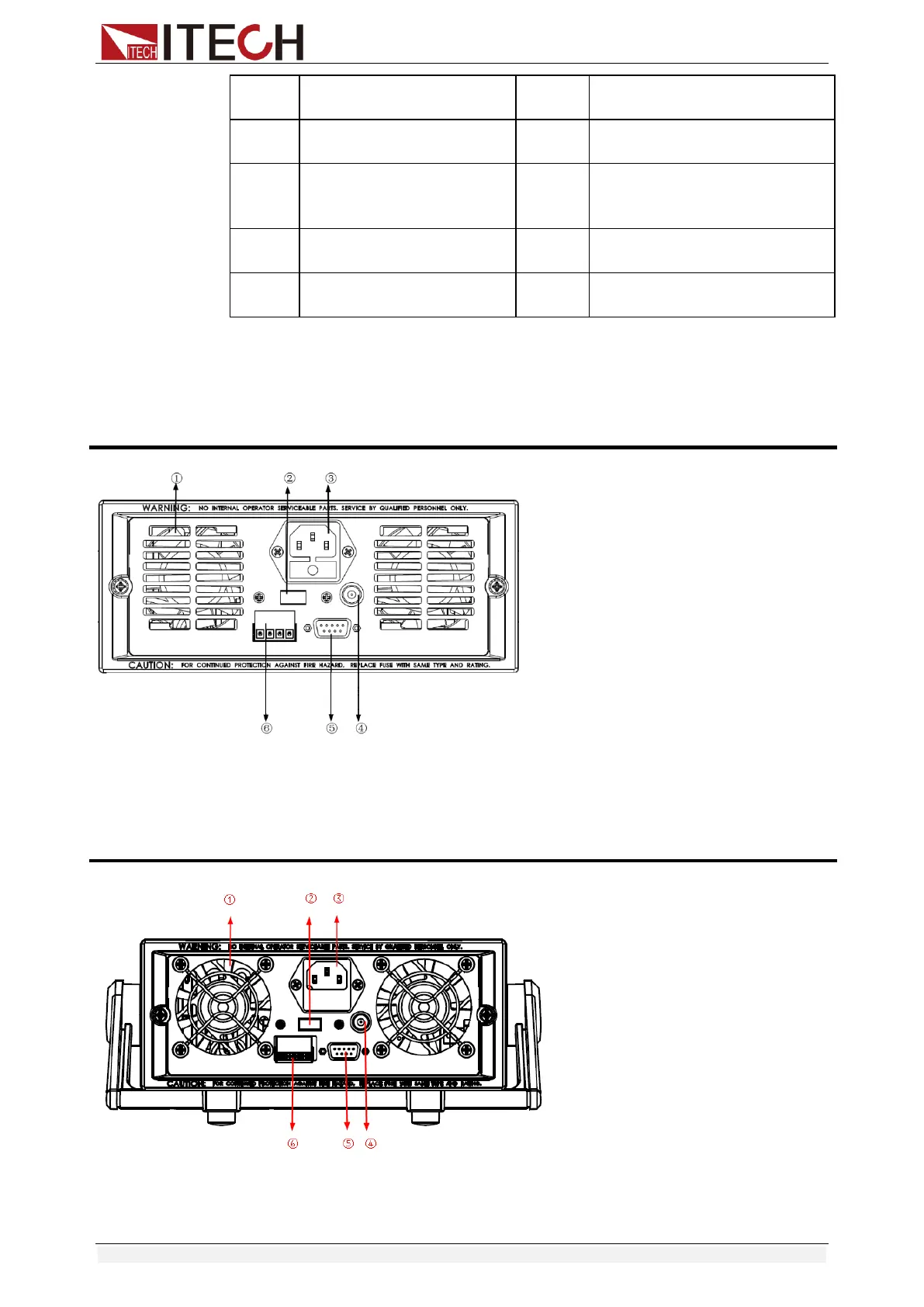

2.7 Rear Panel Introduction
IT8500+ series electronic load different models have different rear panels, the
rear panels and keyboards of different models are shown as below.
IT8511+/IT8511A+/ IT8511B+/IT8512+/ IT8512B+/IT8512C+/IT8512H+ Model
① Thermal window
② Line voltage selection switch
(110V/220V )
③ 3 pin IEC320 AC input connector
④ Current monitoring terminal
⑤ 9-Pin serial port interface connector
⑥ 4 pin trigger and remote sensing connector
IT8513A+/IT8513C+ Model
①Thermal window
②Line voltage selection switch
(110V/220V )
④Current monitoring terminal
⑤9-Pin serial port interface connector
⑥4 pin trigger and remote sensing connector
