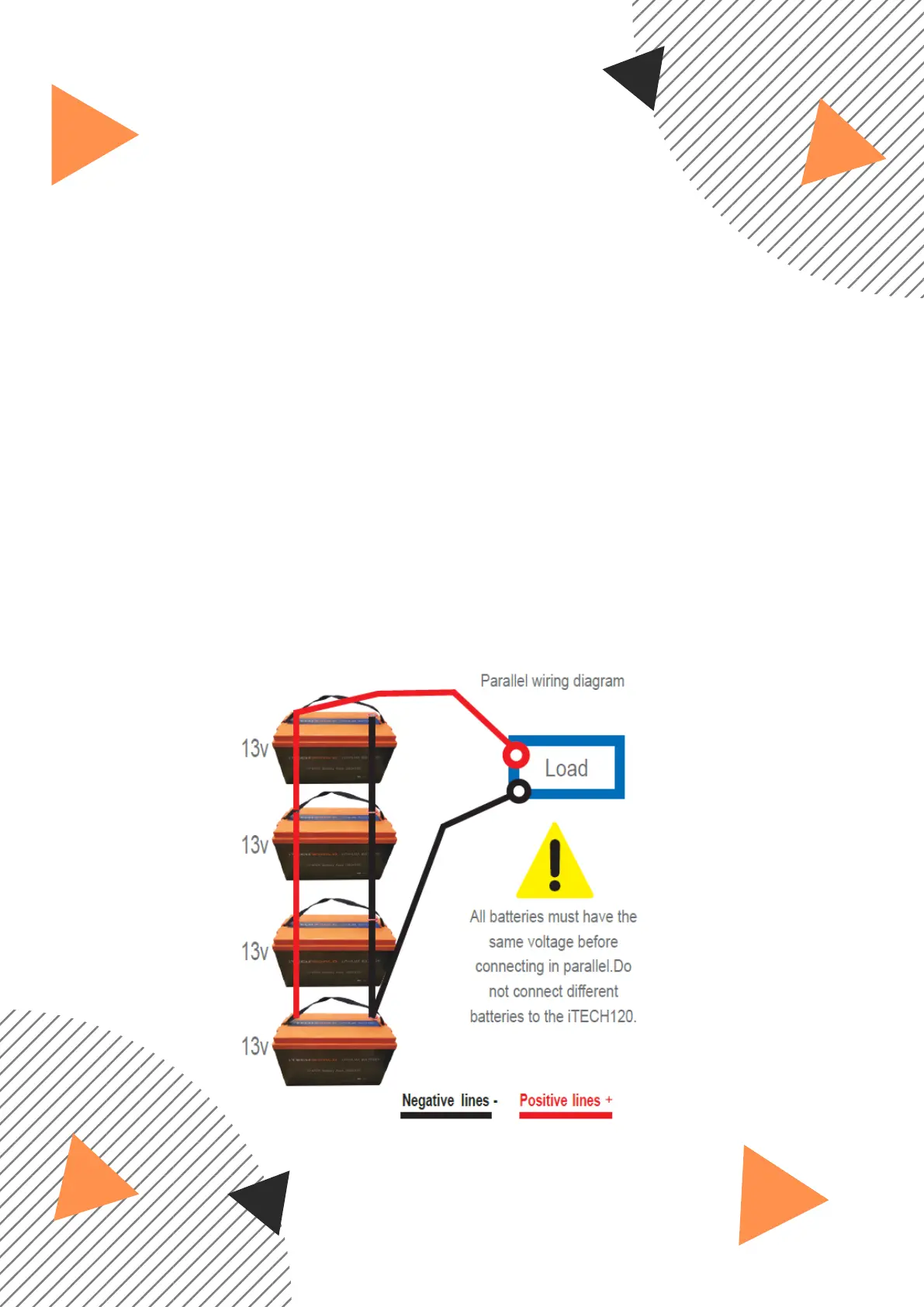

Below is an example of how a bank of iTECH120X batteries
should be connected together in parallel. Please note all
batteries must be of the same voltage before creating a
bank. When drawing a load from the bank it should be split
as follows:
Positive to battery number 1
Negative to battery number 4
You should also charge your iTECH120X battery bank in the
same manner.
WIRING DIAGRAM
