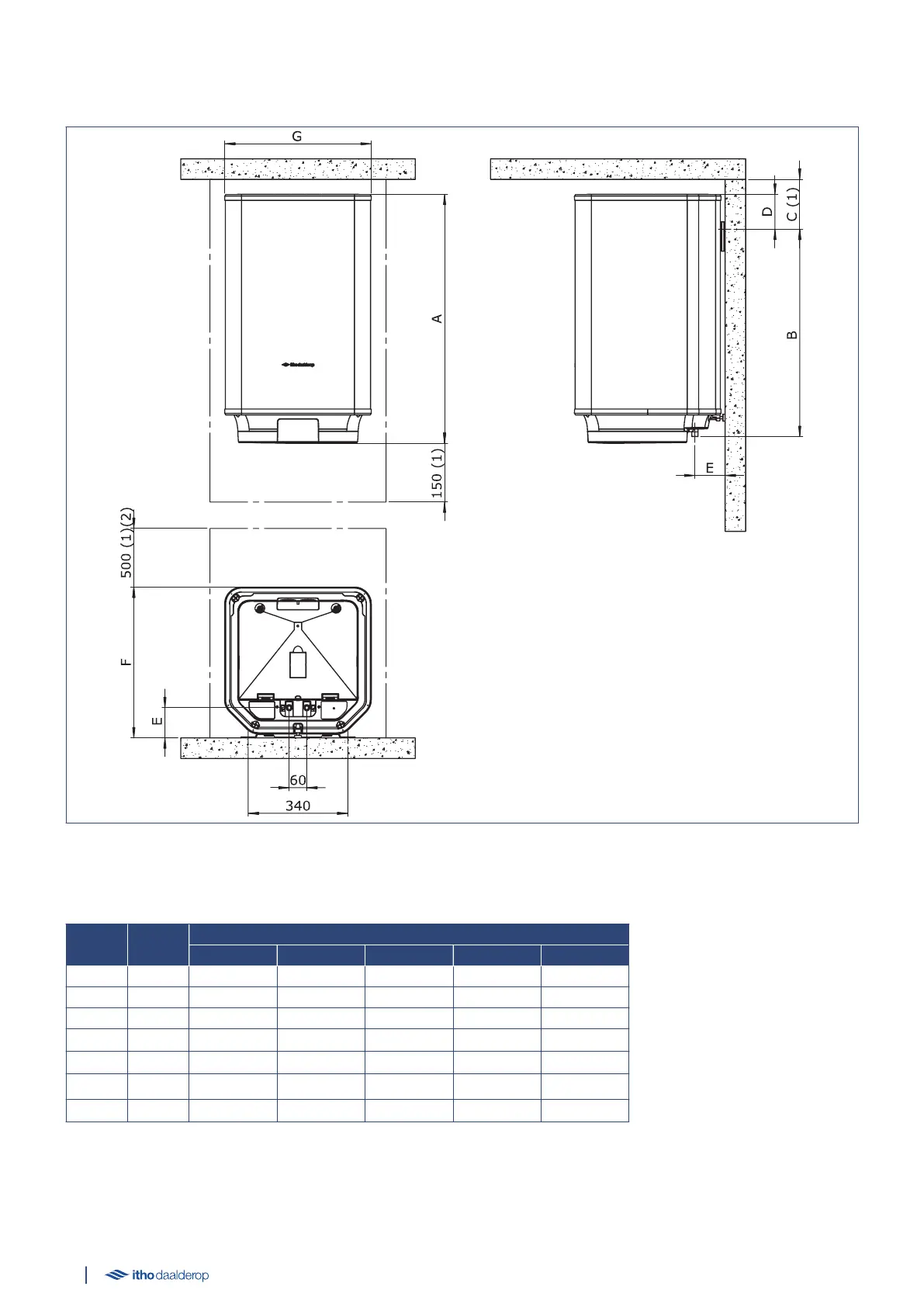

2.6. Dimensional sketch
1) Minimum free space required for installation and service.
2) When installed, this dimension must be at least 50 mm, with the appliance having to remain accessible for service at all times.
Dimensi
on
Unit
Heater model
30 50 80 120 150
A mm 640 731 849 1118 1322
B mm 463 555 707 1007 1211
C mm 210 200 150 125 125
D mm 154 153 119 88 88
E mm 85 85 85 85 85
F mm 481 481 514 514 514
G mm 437 437 500 500 500
