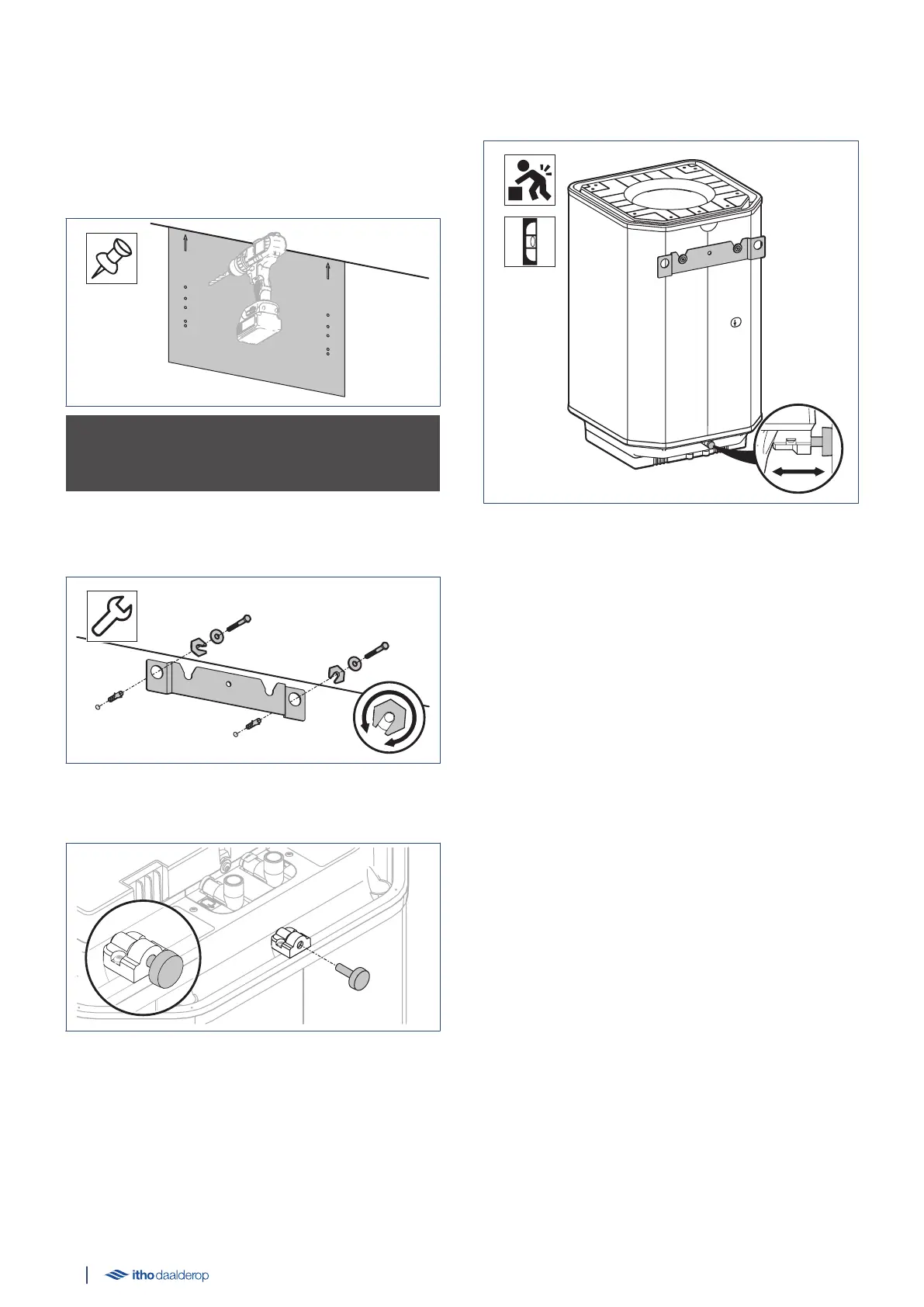

3.3. New installation
a) Position the drilling jig with the arrow up against the ceiling.
b) Mark the hole positions for the relevant heater model on the
wall.
c) Drill the necessary holes to install the wall bracket.
ä Caution!
Use a bracket that is suitable for your type of wall.
d) Mount the wall bracket with the recesses facing upwards.
- Rotate the centring rings to adjust the bracket horizontally.
Example of wall mounting
e) Twist the levelling foot all the way to the back of the heater.
f) Mount the heater on the wall bracket.
g) Level the heater vertically by rotating the levelling foot in or out.
