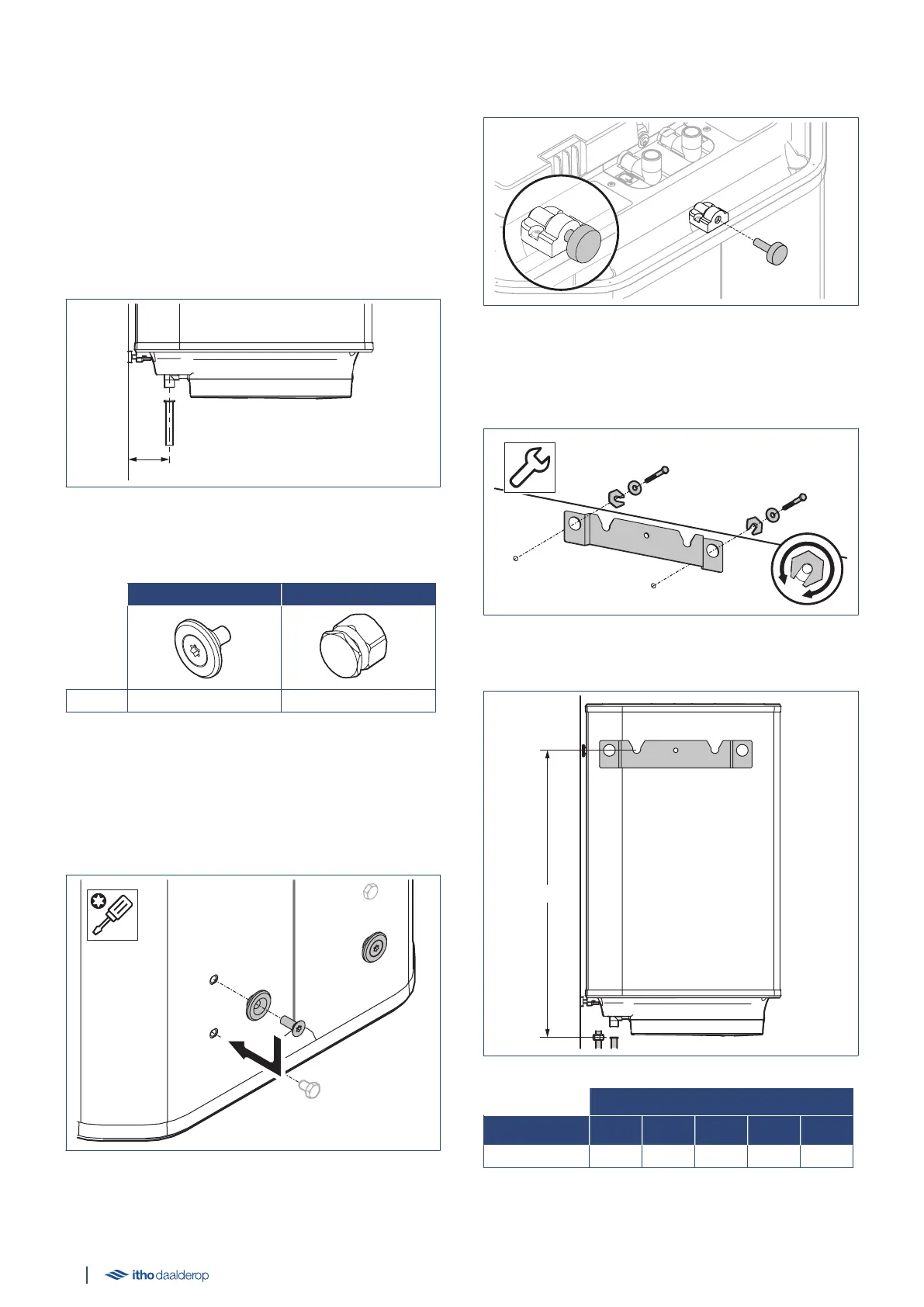

3.2. Replacement of existing heater
The wall bracket’s design enables replacement of most common
existing heaters without drilling any new holes or replacing the
piping.
If this is not possible, install the heater according to the instructions
under New installation on page 16.
a) Remove the old heater and wall bracket.
b) Measure the distance E (distance between the wall and the
centre of the pipes).
c) If the distance is 100 mm, either 1) re-route the existing piping,
or 2) replace the installed lugs with the taller version (not
included).
Standard
Tall
E 85 mm 100 mm
d) FOR HEATER MODEL 50 ONLY:
When installing a new heater, the distance between the ceiling
and the lug centres (dimension C in Dimensional sketch on
page 12) may be reduced. In that case, move the heater’s lugs to
the threaded M8 holes.
Moving the lugs will require adaptation of the pipe lengths.
e) Twist the levelling foot all the way to the back of the heater.
IMPORTANT! If using the tall lugs, use the supplied long levelling foot.
f) Mount the wall bracket into the existing mount with the
recesses facing upwards.
- Rotate the centring rings to adjust the bracket horizontally.
g) Measure the distance B (distance between the pipes and the
centre of the lug in the wall bracket).
Heater model
Dimension 30 50 80 120 150
B (mm) 463 555 707 1007 1211
14
