1.2. Installing and removing the cooling system bottle
Rotate the spoke handles (1, Fig. 4) to raise the motor, place the cooling system
bottle on the machine (2), and then attach the bottle hose to the hose fitting (3).
To remove the bottle, first detach the hose from the fitting, and raise the motor.

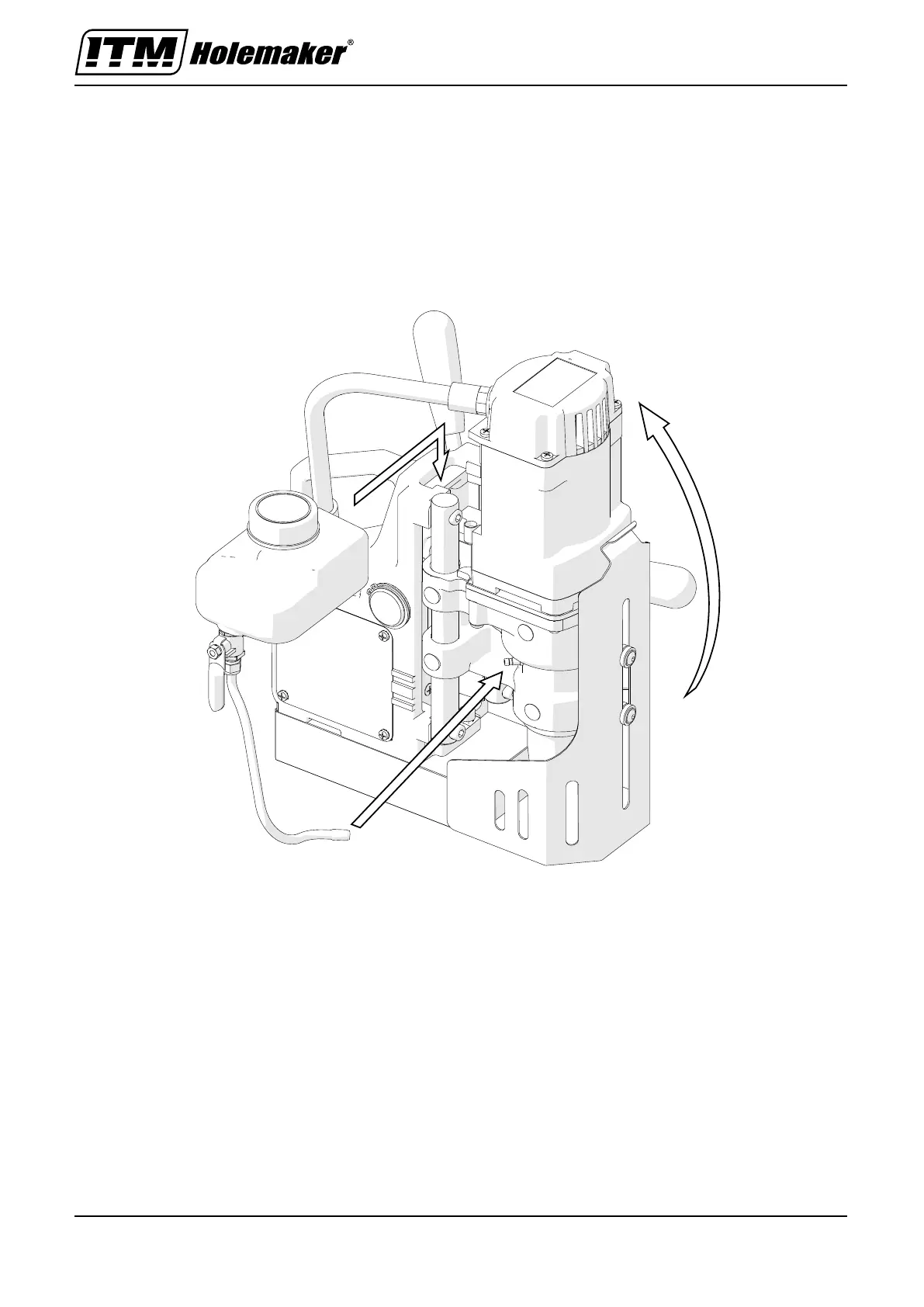

Fig. 4. Installing the cooling system bottle
1
2
3
3.2 Installing and removing the cooling system bottle
PRO 36
3.2. Installing and removing the cooling system bottle
Rotate the spoke handles (1, Fig. 4) to raise the motor, place the cooling system
bottle on the machine (2), and then attach the bottle hose to the hose fitting (3).
To remove the bottle, first detach the hose from the fitting, and raise the motor.
Fig. 4. Installing the cooling system bottle
