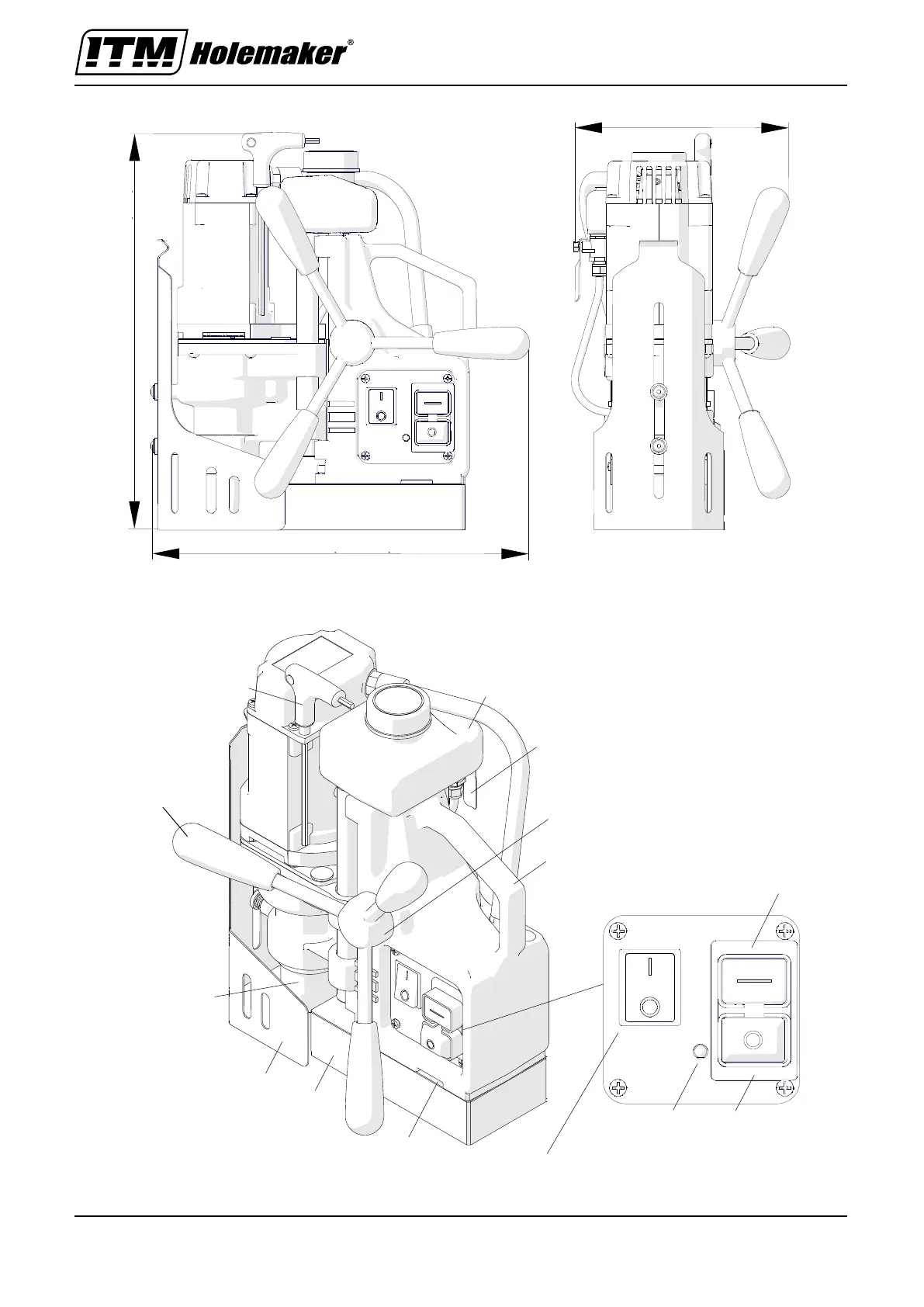

1.3. Design
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
4
330 mm (13’’)
314 mm (12-3/8’’)
179 mm (7-1/16’’)
Electromagnetic base
(MAGNET) switch
MOTOR start button
MOTOR stop
button
Spindle
with arbor
Spoke handle
Carrying handle
Electromagnetic base
Chip guard
Bottle valve lever
Opening for safety strap
Feed shaft
Cooling system bottle
Wrench for tightening
the annular cutter
Control panel
Low holding force
indication LED
179mm
330mm
314mm
