OVERHEAD WIRE PULL
Page 27

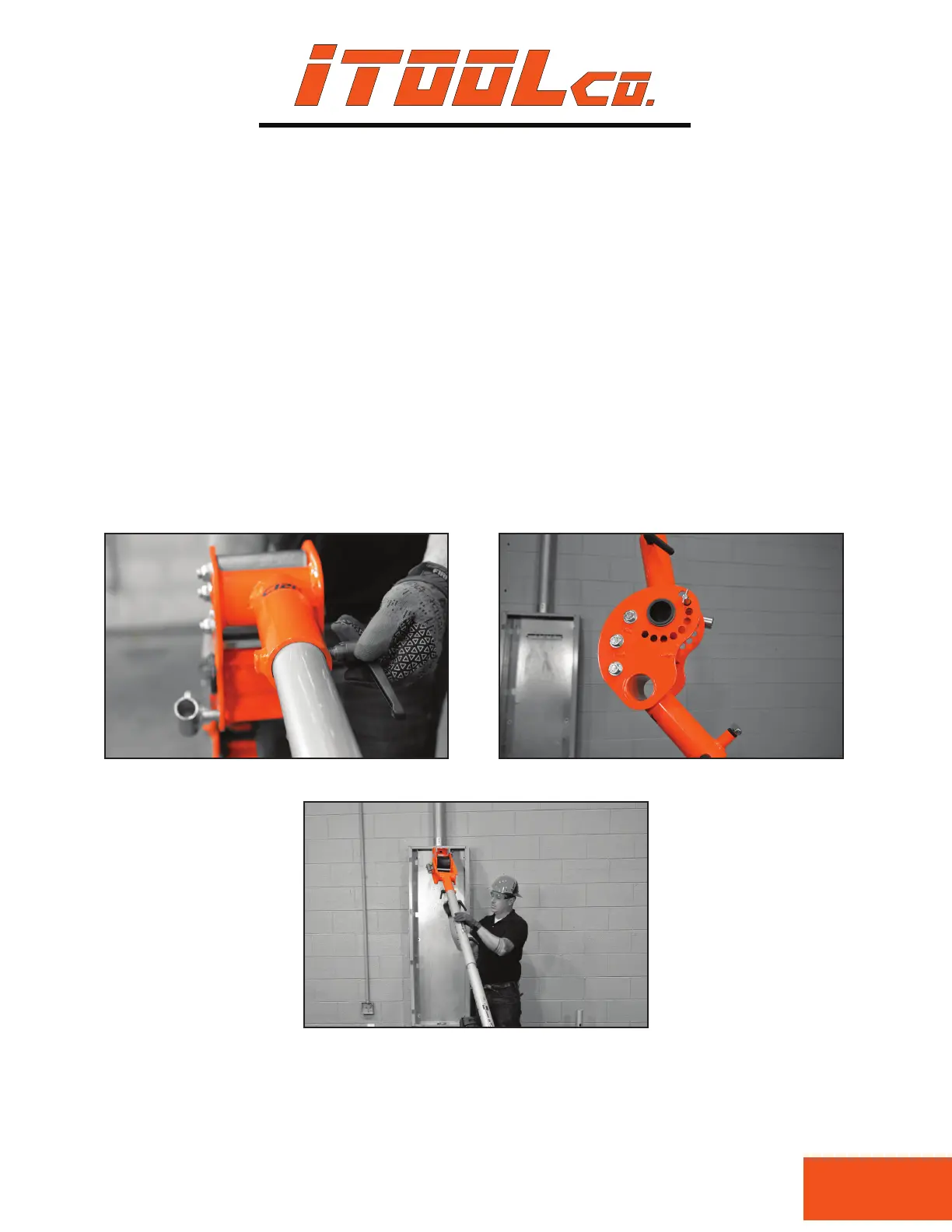

1. Convert the Cannon 12K to an overhead configuration by removing the adjustable bolt at the main
knuckle. (Fig. 1) Pull the snap pin, and rotate the front end right or left to the desired position.
(Fig. 2)
2. To achieve optimum balance, slide base to adjust the front knuckle weight.
3. Adjust front knuckle and main knuckle for proper alignment of the adapter into and onto the
conduit. (Fig. 3)
4. Use the universal adapter if the pull is under 5,000 lbs./2,268 kg. If the pull is over 5,000 lbs./
2,268 kg. attach the correct size adapter and thread the rope through the adapter.
5. Install and tighten all pins.
6. Do not stand in-line with the rope being pulled. Rather, stand to the side of the puller
to avoid injury if the rope breaks.
Note: Use only low stretch rope designed for wire pulling, 5/8” to 7/8”
(15.9 mm. - 22.2 mm.) sizes.
FIG. 1
FIG. 3
FIG. 2
