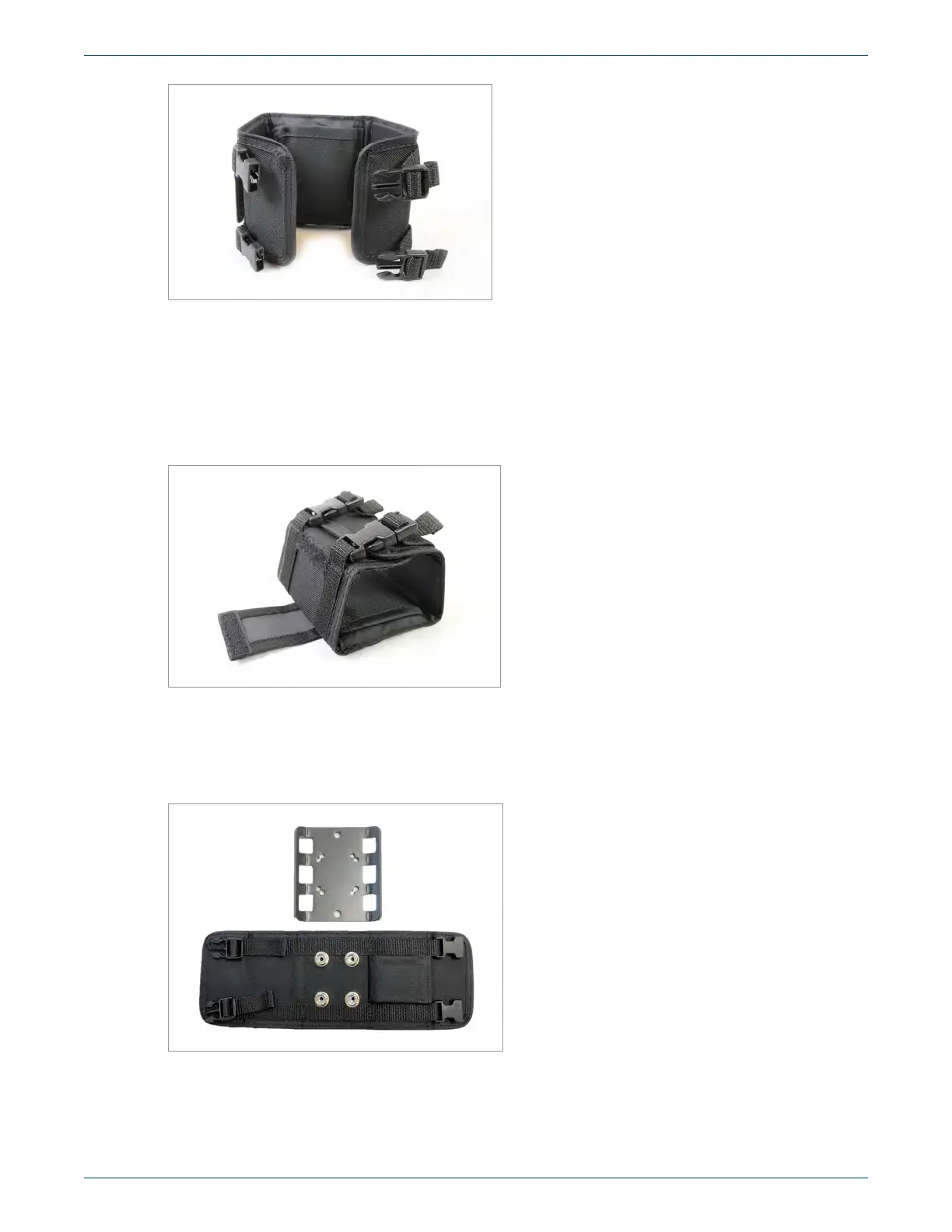

Figure 1 – Mounting Jacket
Figure 1 shows the plastic side release buckles and straps, used to secure the IMR-FT within the
Mounting Jacket. Inside the Mounting Jacket is the Velcro seatbelt retaining flap, used to secure
the Mounting Jacket onto a lap seatbelt. This allows for easy temporary installation of the IMR-
FT in the vehicle and easy removal.
Figure 2 – Cable Retaining Flap
Figure 2 shows the Velcro cable retaining flap on the side of the Mounting Jacket, used to hold
the micro-USB cable securely in place once it is plugged into the installed IMR-FT.
Figure 3 – Mounting Jacket and Mounting Plate
