1.5.2 LCD Panel

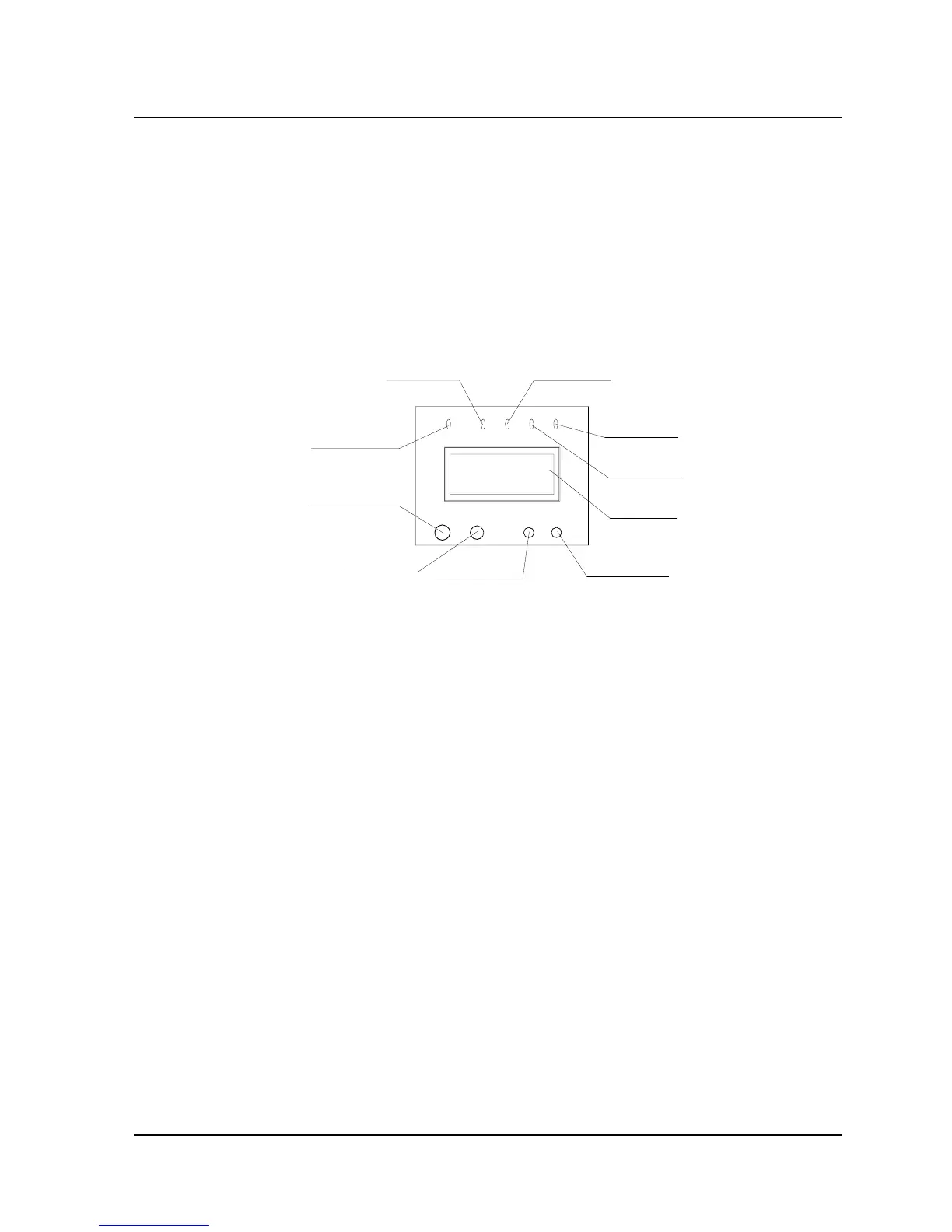

The LCD panel consists of LCD, LED and buttons, as shown in Fig.
1-4, for the display and control of operating parameters, alarm
information and function settings.
OFF
button
Mains indicator
ON/SILENCE
button
Fault indicator
ENTER
button
Bypass indicator
CIRCLE
button
Battery indicator
LCD screen
Inverter indicator
Fig. 1-4 LCD Panel Components
I. Composition of LCD panel
This panel includes a group of LED indicators, a LCD screen, and 4
buttons.
1. The LED indicators include 4 green lights and 1 red light.
2. The LCD screen can display maximally 2 lines of information in
Chinese or 4 lines of information in English.
3. The 4 buttons are ON/SILENCE button, OFF button, CIRCLE
button, and ENTER button.
Chapter 1 Product Introduction 5
E1--20010916-C-1.0
