4.4.2 CONTROL BOARD

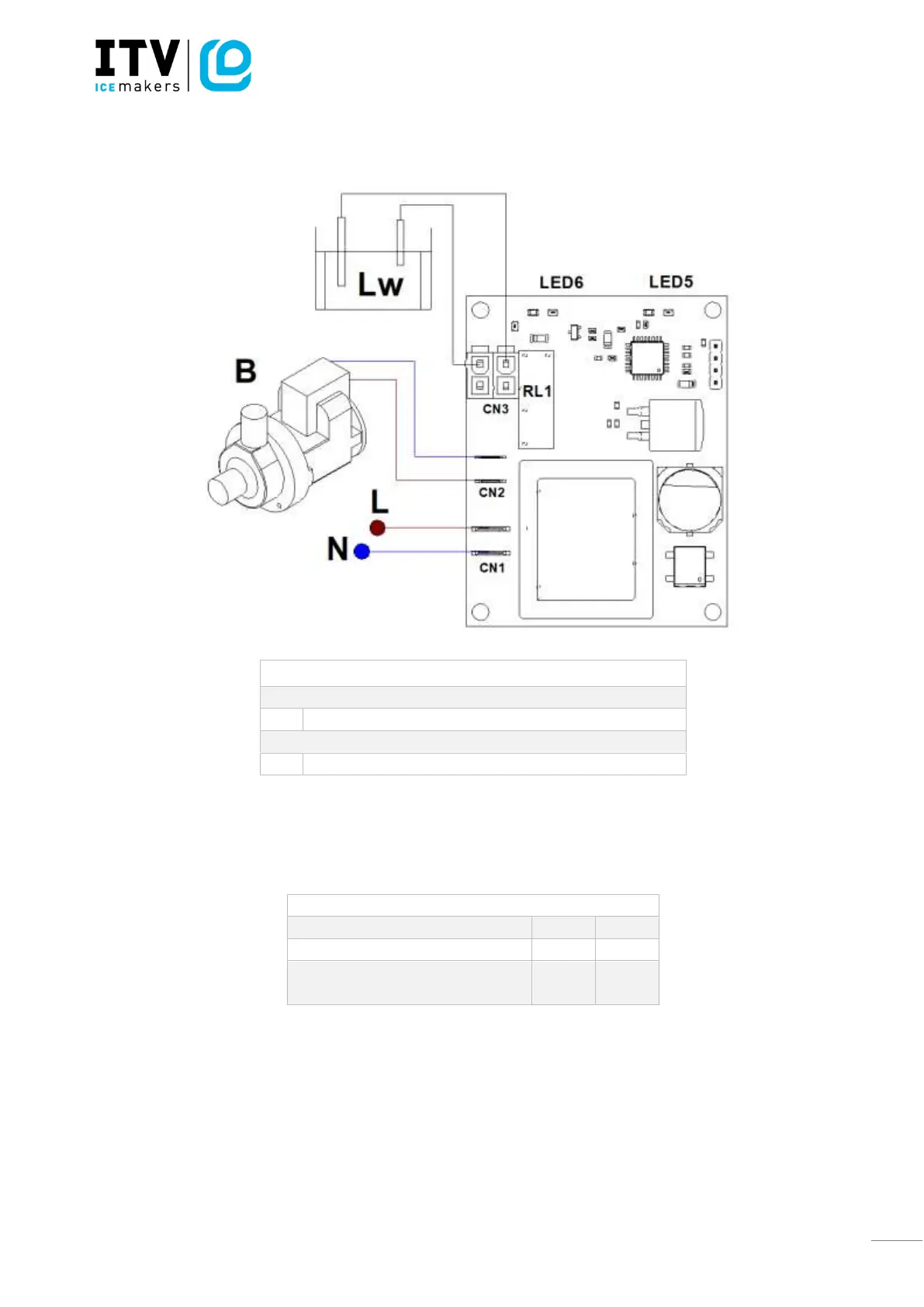

PCB connections
Outputs
B
Water pump
Inputs
Lw
Water Level Sensor
LED signalling
There are two LEDs that signals machine status
Status signaling. Continuous led
LED5
LED6
PUMP RUNNING
X
WATER LEVEL SENSOR
ON
X
