R50 Blue Bar 5101171 Rev. L

Mounting Bracket Requirements per Bar:

• Overall length up to 3.25 feet: 2 brackets

• Overall length up to 6.50 feet: 3 brackets

• Overall length up to 8.75 feet: 4 brackets

• Overall length up to 13.0 feet: 5 brackets

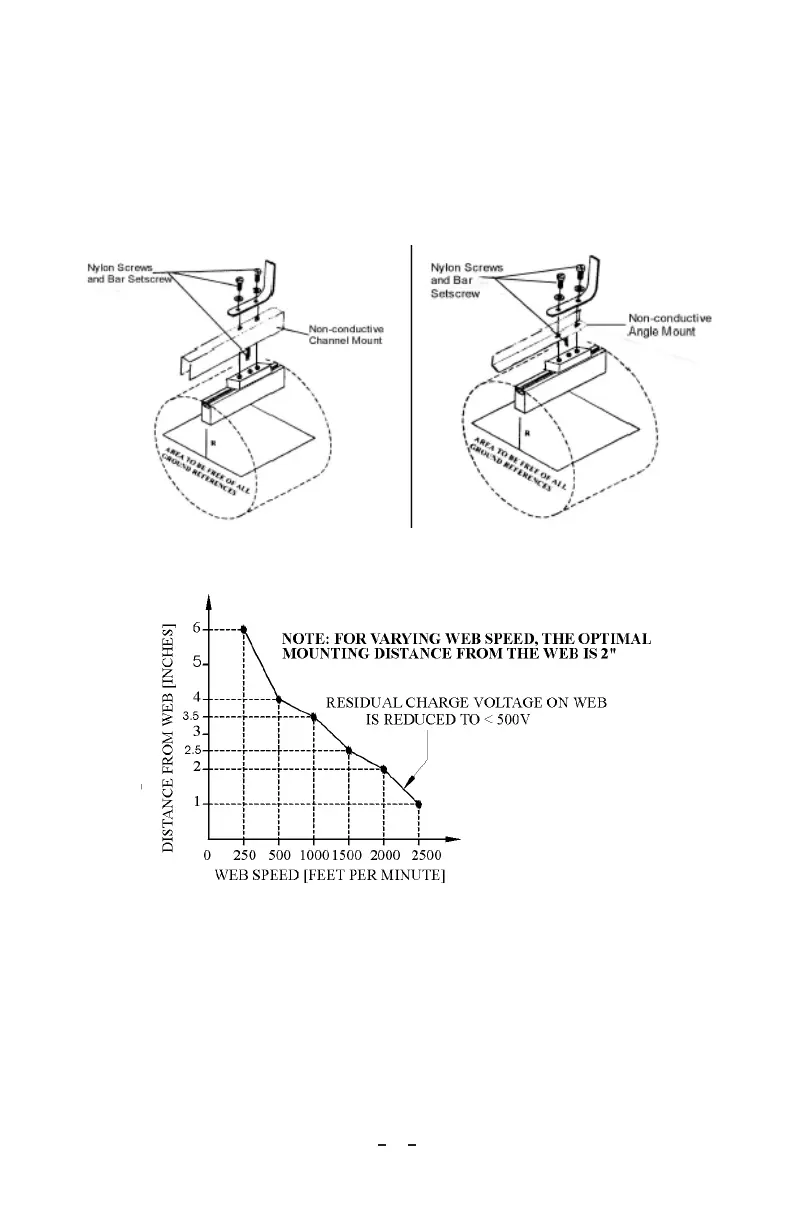

Figure 3. Installation of R50 Blue Bar with Distance from Ground Reference

Figure 4. Optimal Mounting Distance of Blue Bar at Various Web Speeds
