4. Fitting the Manager IQ Easy
- For the mounting of the Manager/Extension use the template with the drilling pattern.
The template is provided as a PDF file (scale 1:1) on the USB flash drive along with the
product and can also be downloaded from http://www.simco-ion.co.uk/our-products/static-
elimination/power-units/manager-iq-easy

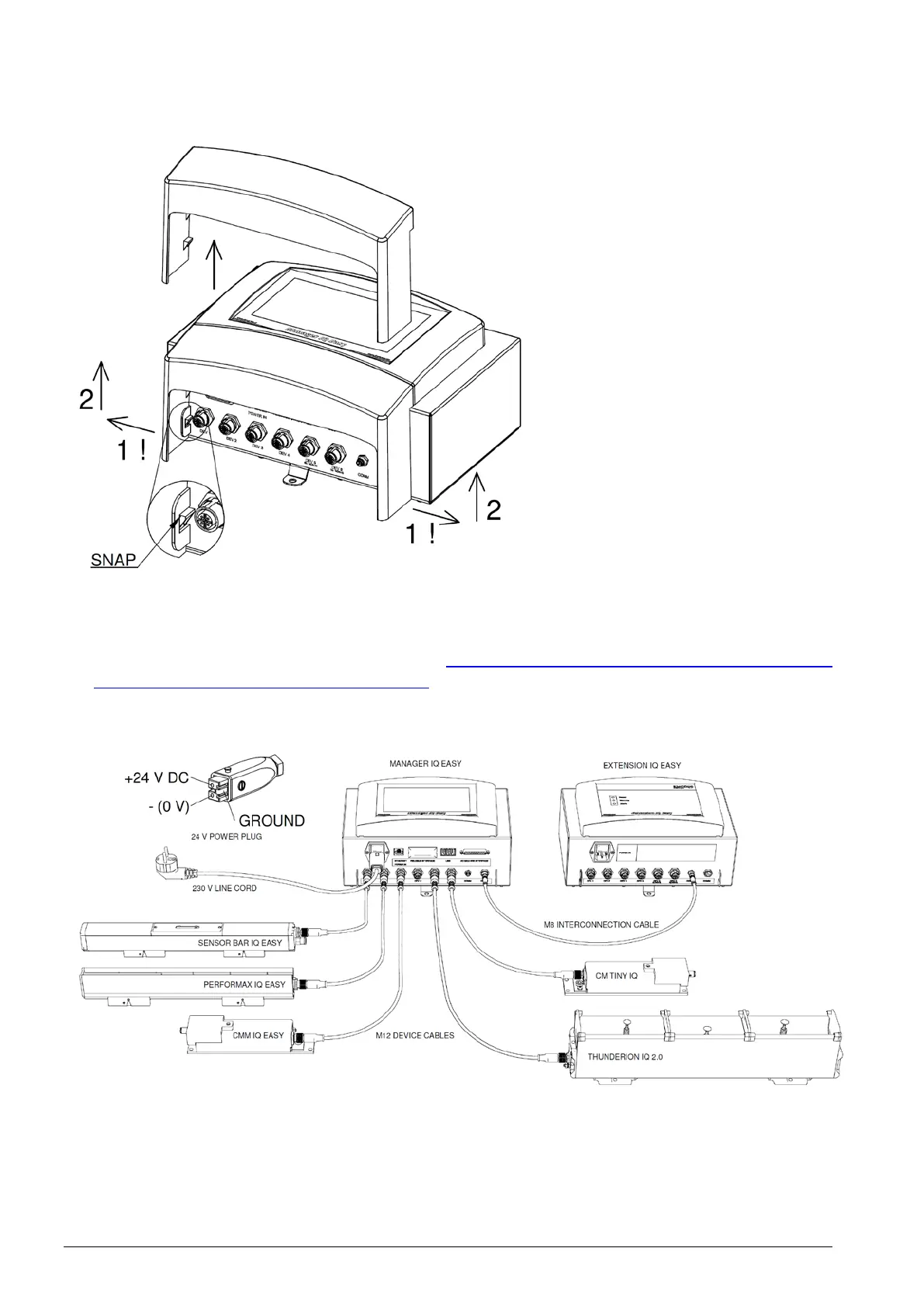

- Remove the protection cover of the Manager/Extension to access the connectors.
Connect all components of the IQ system:
- Power supply of the Manager using a 230V power supply cord or a 24V power supply using
the 24V power plug
- Devices with an M12 device cable
- Extension IQ Easy with an M8 interconnection cable
