Engine NEF N60 ENT M37/M40

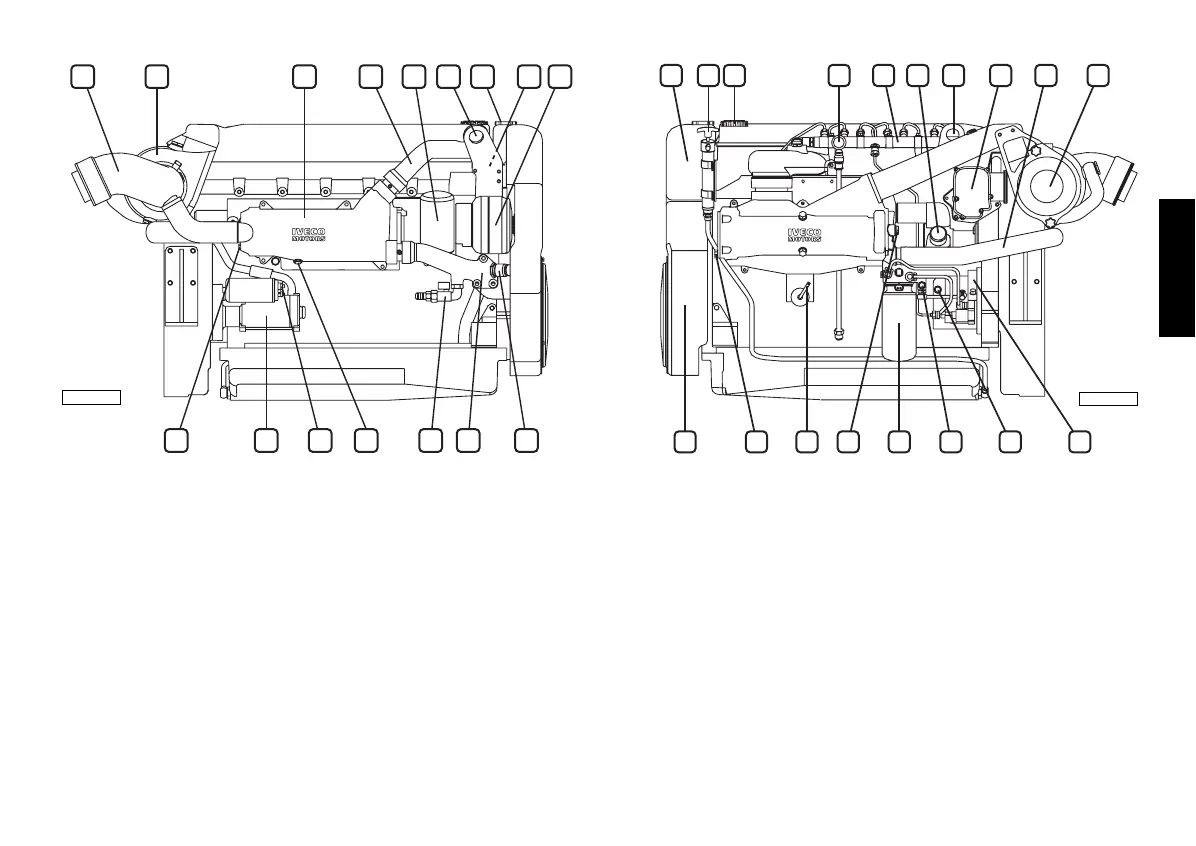

1. Exhaust gas and sea water discharge - 2. Turbocharger - 3. Engine
coolant-sea water heat exchanger - 4. Coolant outlet manifold from
engine - 5. Oil filter - 6. Lifting U-bolt - 7. Coolant filler cap -
8. Thermostat valve location - 9. Alternator - 10. Manifold
connecting the cooling circuit to the coolant tank - 11. Coolant
infeed to engine - 12. Water-heater system tap or plug - 13. Coolant
discharge plug - 14. Connection to battery positive terminal -
15. Electrical starter motor - 16. Removable anode.
Engine NEF N60 ENT M37/M40
1. Coolant expansion tank - 2. Oil extraction pump - 3. Oil filler cap -
4. Oil dipstick - 5. Common rail divider - 6. Sea water pump inlet -
7. Lifting U-bolt - 8. Oil vapour filter - 9. Sea water circuit connector
pipe - 10. Air filter - 11. High-pressure pump for common rail system -
12. Fuel inlet from tank - 13. Fuel outlet to tank - 14. Fuel filter -
15. Removable anode - 16. Accelerator voltage divider lever - 17. Sea
water discharge plug - 18. Auxiliary member pulley casing.
2 3 54 6 9
11 1015 14
7 8
1216 13
1
04_352_N
1 32 4 75 6 8 109
1114 12131518 1617
04_353_N
