AYXP12FRN

1 – 3

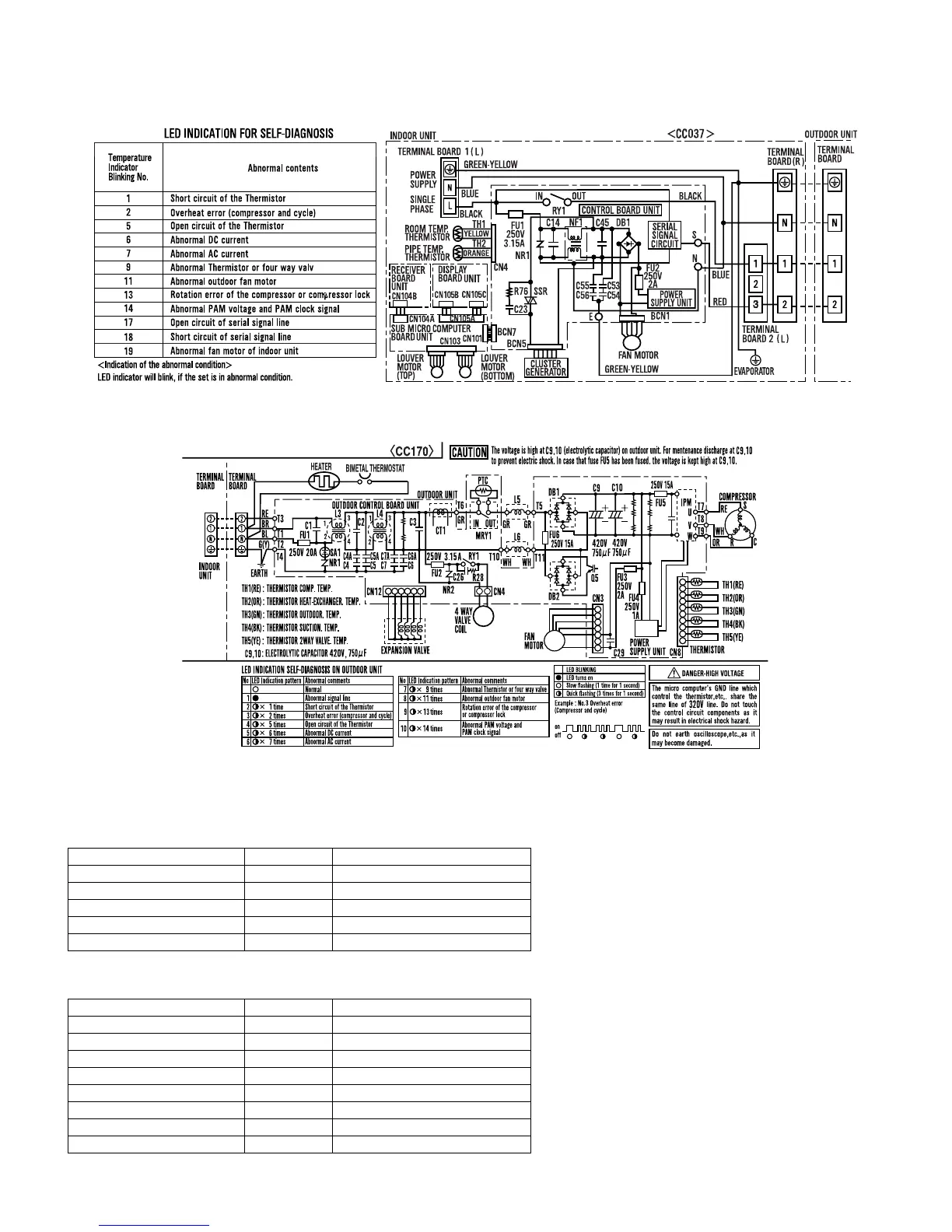

[3] WIRING DIAGRM

1. Indoor unit

2. Outdoor unit

[4] ELECTRICAL PARTS

1. Indoor unit

2. Outdoor Unit

DESCRIPTION MODEL REMARKS

Indoor fan motor MLB084 DC Motor

Indoor fan motor capacitor – –

Transformer – –

FUSE1 – QFS-GA062JBZZ (250V, 3.15A)

FUSE2 – QFS-GA063JBZZ (250V, 2A)

DESCRIPTION MODEL REMARKS

Compressor 5RS092XDF D.C. brush-less motor

Outdoor fan motor ML-A902 DC Motor

Outdoor fan motor capacitor – –

Fu4 – QFS-GA064JBZZ(250V, 1A)

Fu3 – QFS-GA051JBZZ(250V, 2A)

Fu2 – QFS-GA052JBZZ(250V, 3.15A)

Fu1 – QFS-CA001JBZZ(250V, 20A)

Fu5, 6 – QFS-CA002JBZZ(250V, 15A)
