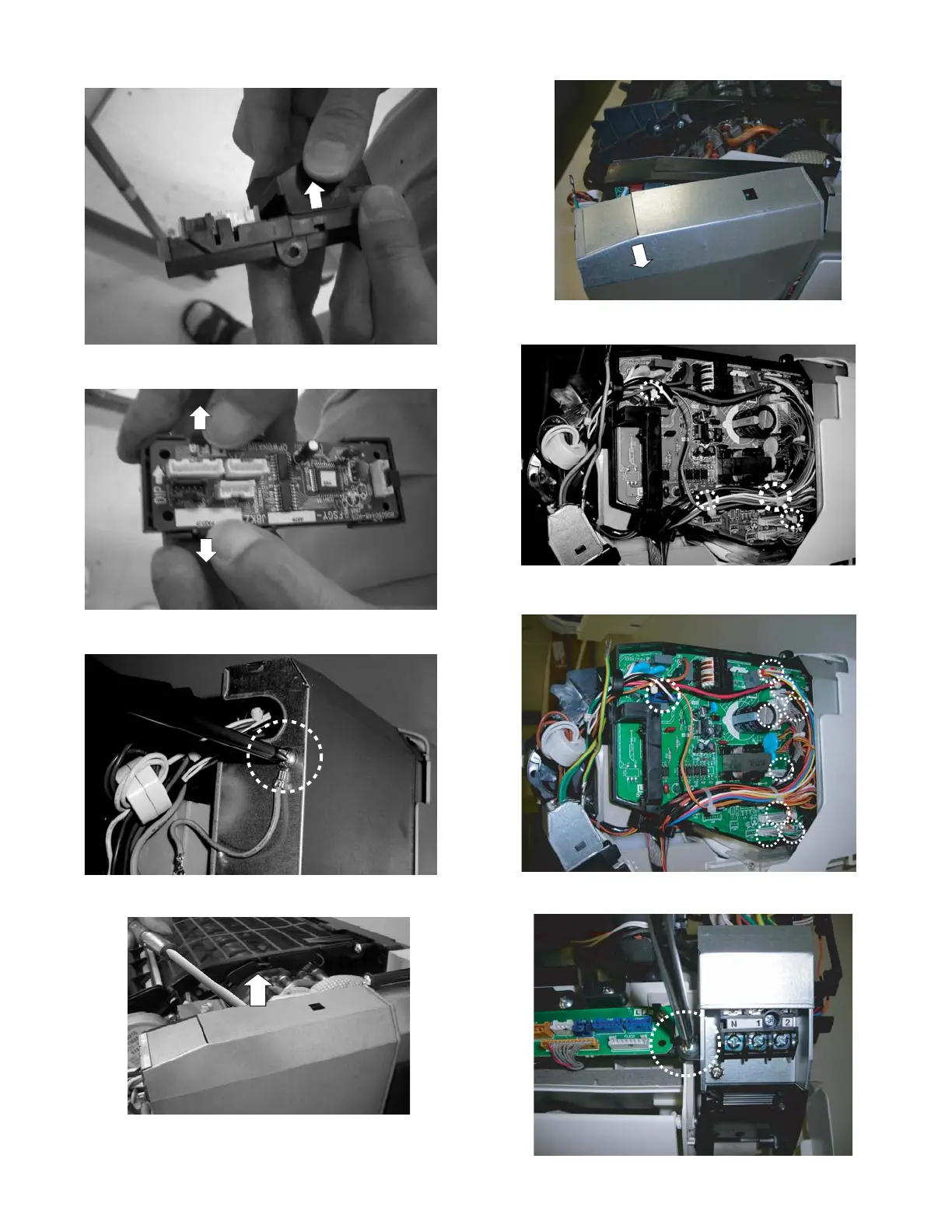

31)The sub.printed boad cover is removed. (Hook two places)

32)The sub.printed boad is removed. (Hook two places)

33)A fixed screw for P.W.B. box cover is removed.

34)Hook is removed by handling a minus driver.

35)The P.W.B. box cover is removed.

36)The fixing band in the P.W.B.assembly is cut. (4 parts)

37)The connectors in nine places are removed.

38)The Terminal board removed. (1 screw )
