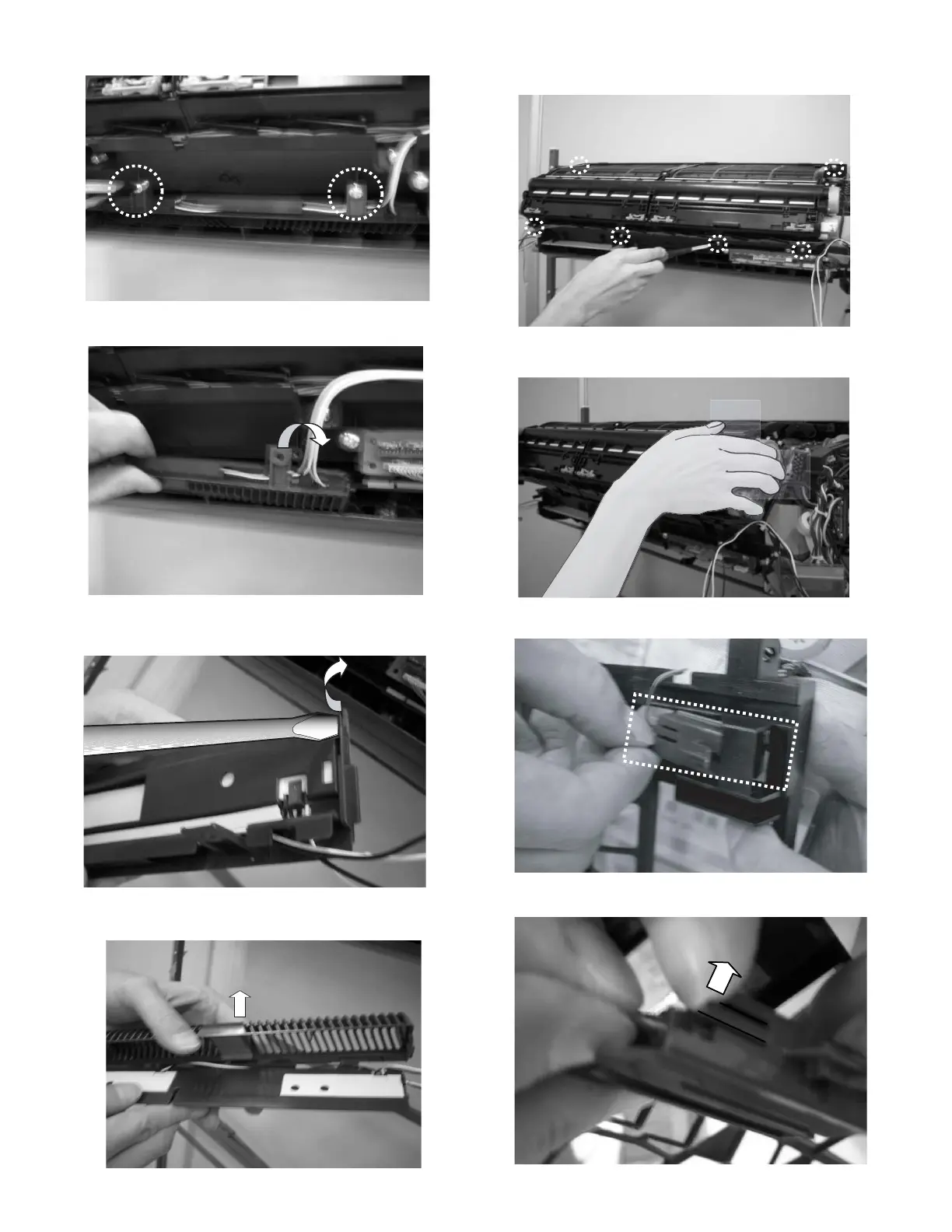

39)The plasmacluster assembly is removed. (2 screws)

40)The plasmacluster assembly is pulled forward, and detached.

41)Two hooks of the plasmacluster cover are removed by using (-)

screwdriver.

42)After the plasmacluster that removes the PC cover is taken out, the

wire connector is removed.

43)Six screws for the fixation of the air filter cleaning mechanism

assembly is removed.

44)Air filter cleaning mechanism assembly is pulled forward and

removed.

45)The limit switch cover is removed.

46)The limit switch is removed. (Hook one place)
