AYXP12JHRN
5 – 8

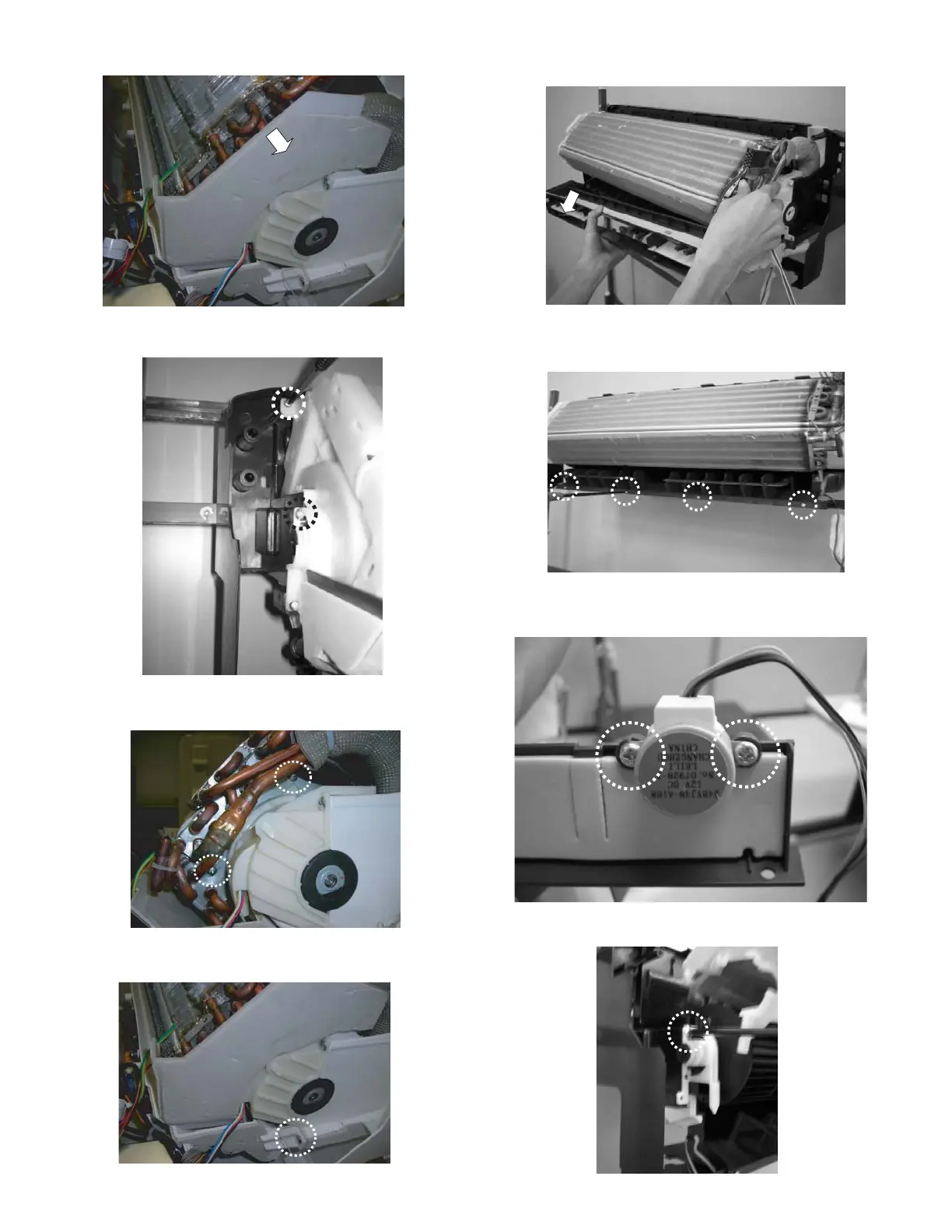

55)The dew cover is removed. (The slide is done right and remove. )
56)Two screws of cover L are removed.
57)Two screws for the evaporator fixation (right side) are removed.
58)One screw for the drain pan fixation (right side) is removed.
59)The drain pan is detached.
60)Four fixed screws of the vertical direction louver stand assembly
removed.
61)Driving motor of the vertical direction louver stand assembly is
removed. (2 screws)
62)The bearing holder is removed. (1 screw)
To Next Page
