System overview

AirX, AirModule E 9/15, Airbox E/S – 6 720 810 266 (2014/10)

AirModule

Heat pump AirX connected to heat pump module AirModule provides a

complete installation for both heating and domestic hot water, since the

heat pump module contains a hot water cylinder. Switching between

heating and DHW is managed by an internal 3-way valve. The integrated

booster in the heat pump module will turn on if needed.

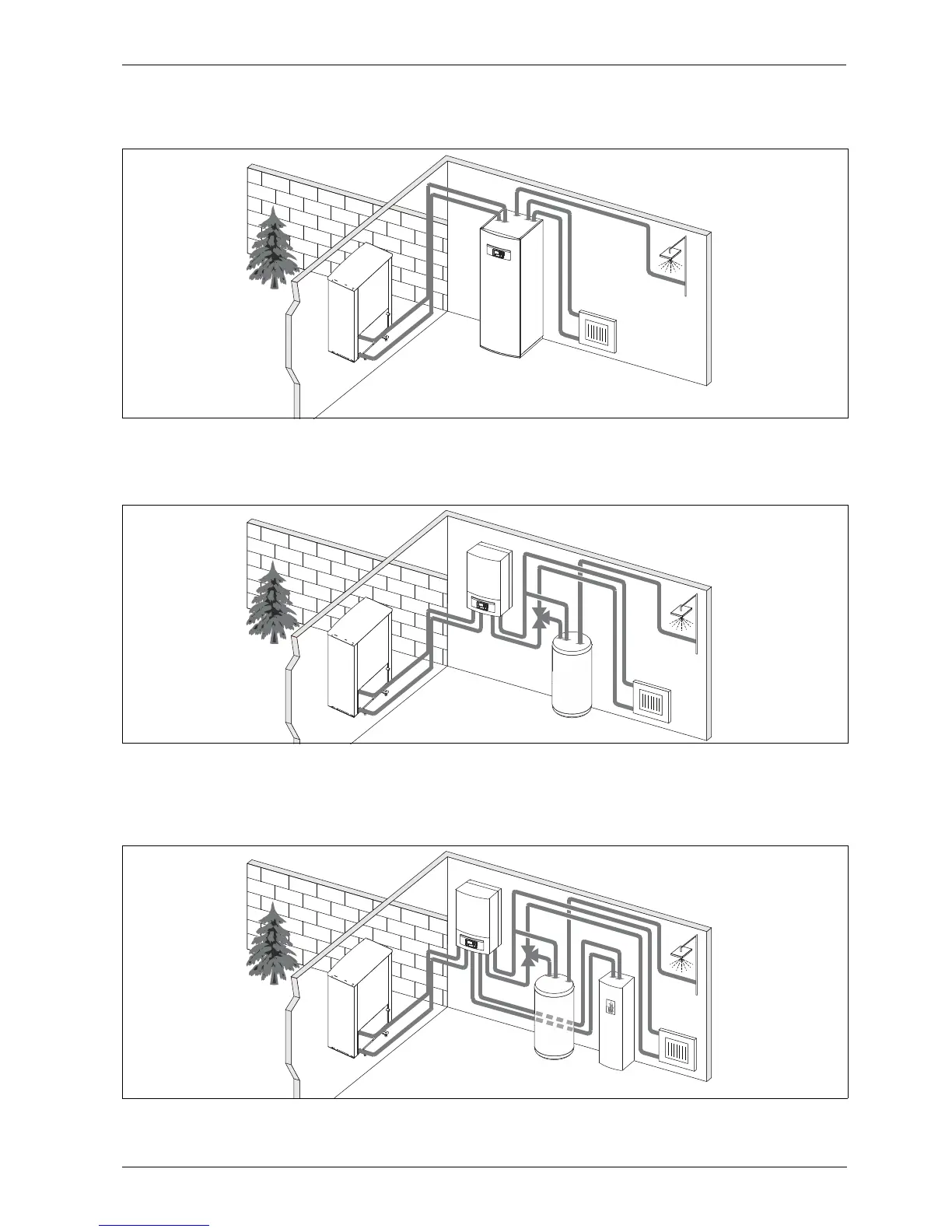

Fig. 1 Heat pump AirX, heat pump module AirModule with integrated hot water cylinder and immersion heater

Airbox E

When heat pump AirX is connected to heat pump module AirBox E, an

external hot water cylinder is required if the purpose of the heat pump is

also to produce hot water. In this case, switching between heating and

DHW is managed by an external 3-way valve. The integrated booster in

the heat pump module will turn on if needed.

Fig. 2 Heat pump AirX, heat pump module Airbox with immersion heater, external hot water cylinder

Airbox S

When heat pump AirX is connected to heat pump module AirBox S, an

external hot water cylinder is required if the purpose of the heat pump is

also to produce hot water. In this case, switching between heating and

DHW is managed by an external 3-way valve. The module contains a

mixing valve that regulates the heat from the external booster, which is

turned on when needed.

Fig. 3 Heat pump AirX, heat pump module Airbox without immersion heater, external hot water cylinder and external booster
