IVT C6 User Manual

Dimensions and clearance
6 720 643 409 (2010/03)
12
6.2 E6 - E11

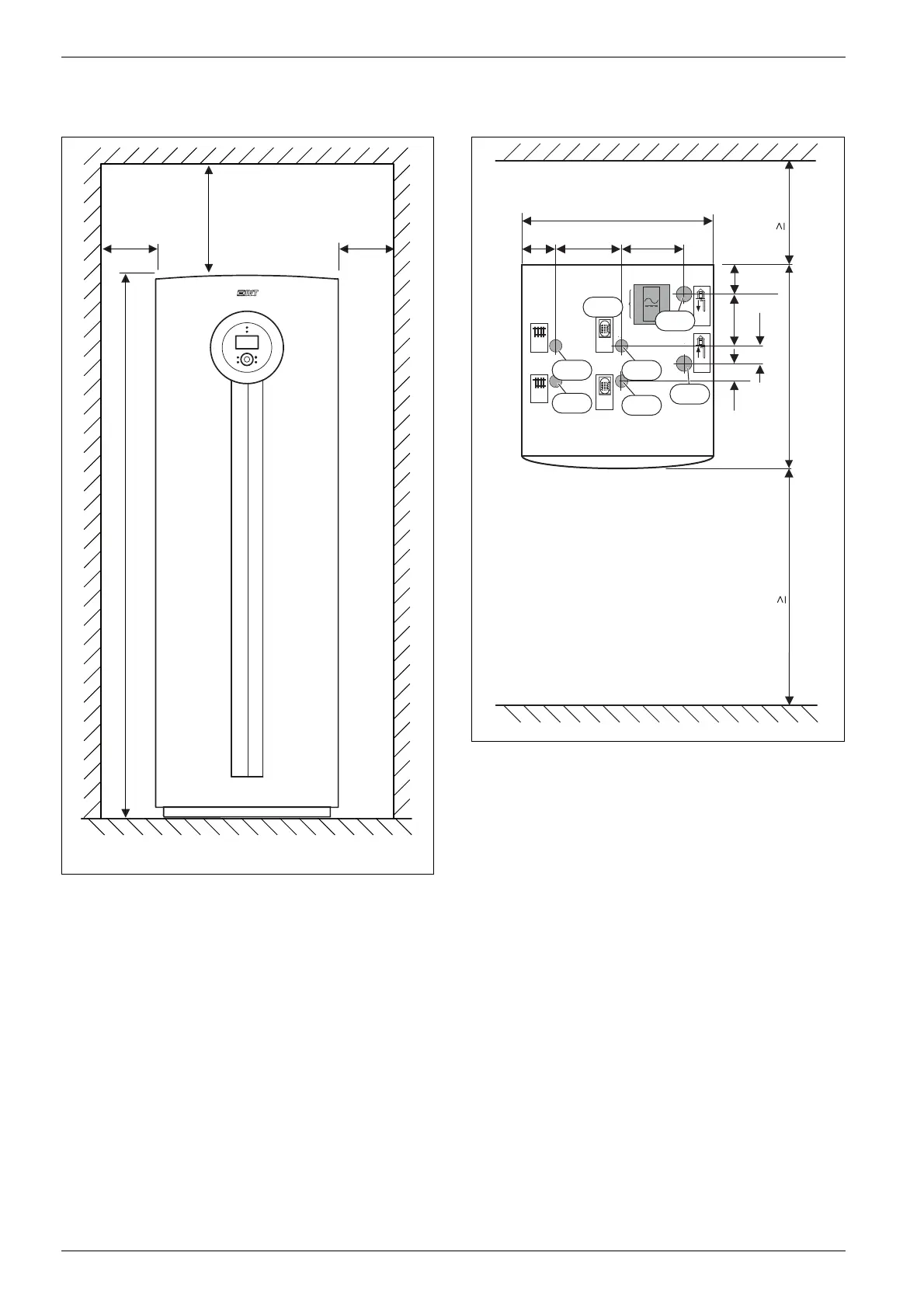

Fig. 7
Fig. 8
All dimensions are stated in mm.:
1 Electrical connections
2 HTF (coll) out
3 HTF (coll) in
4 Return, hot water heater
5 Flow, hot water heater
6 Return heating system
7 Flow heating system
≥100 ≥100
≥400
1520
6 720 641 855-03.1I
E
F
D
C
A
B
103 189213
600
47
168
48
645
86
6
7
4
5
1
3
2
6 720 641 855-15.1I
20
800
