Safety regulation for the use
General safety rules
This model of spray gun (ESG-100) is intended for
spraying a coating (paint, ink, varnish, etc.) through
the air onto a surface. It employs compressed air to
atomize and direct the paint particles.
The following listed safety instructions should serve
you for the right use and for the protection of your own
safety. Therefore please read this very carefully.
When passing this tool to a third person, these
instructions must be handed too.
Retain this user manual and all other literature
supplied with your tool for any future reference.
Comply with the safety information and the
warnings on the tool.
Be familiar with the controls and the proper use of
the tool before attempting to use it and above all,
make sure you know how to stop to use it in case
of emergency.
Following these simple instructions will also
maintain your tool in good working order.
Motor housing1.
Fluid adjustment knob2.
On/o switch3.
Handle4.
Paint cup5.
Spray basket nozzle6.
Flexible nozzle extension*7.
Valve*8.
Viscosity cup*9.
Cleaning pin*10.
nozzlea.
pistonb.
springc.
cylinderd.
pick up tubee.
* Optional extras
Not all of the accessories
illustrated or described are
included as standard delivery

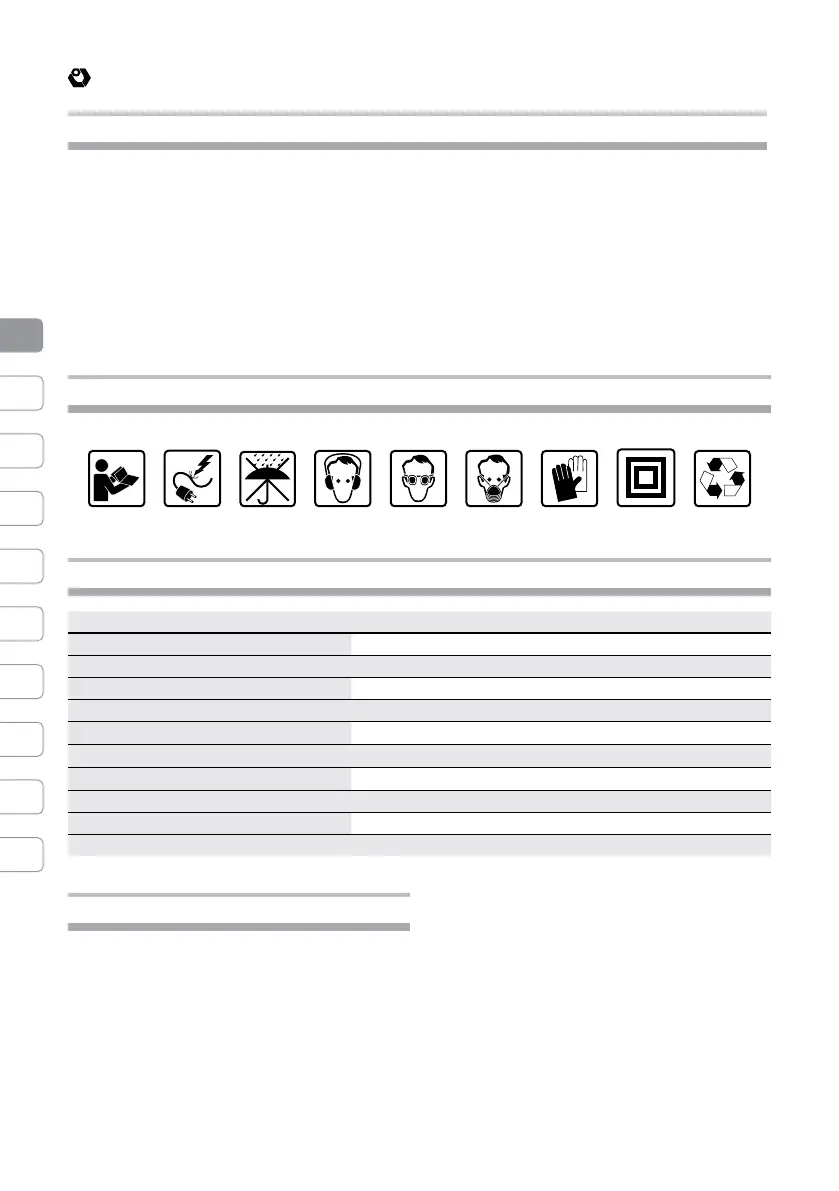

Operating controls
Symbols
Tool specication
model ESG-100
Voltage / Frequency [V~Hz] 230~50
Rated power [W] 100
Max. ow (water) [ml/min] 300
Paint cup capacity [L] 0.8
Nozzle diameter [mm] 0.8
Sound pressure level [dB(A)] 89
Sound power level [dB(A)] 102.9
K 3
Weight [Kg] 1.96
Safety class II
