7 Menu navigation
7.1 Initial menu
Initial menu shows different temperatures, time, as well
as current operating symbols. The window displays
information alternately Room temperature (if room
sensors exist) and Flow temperature for each circuit
installed.

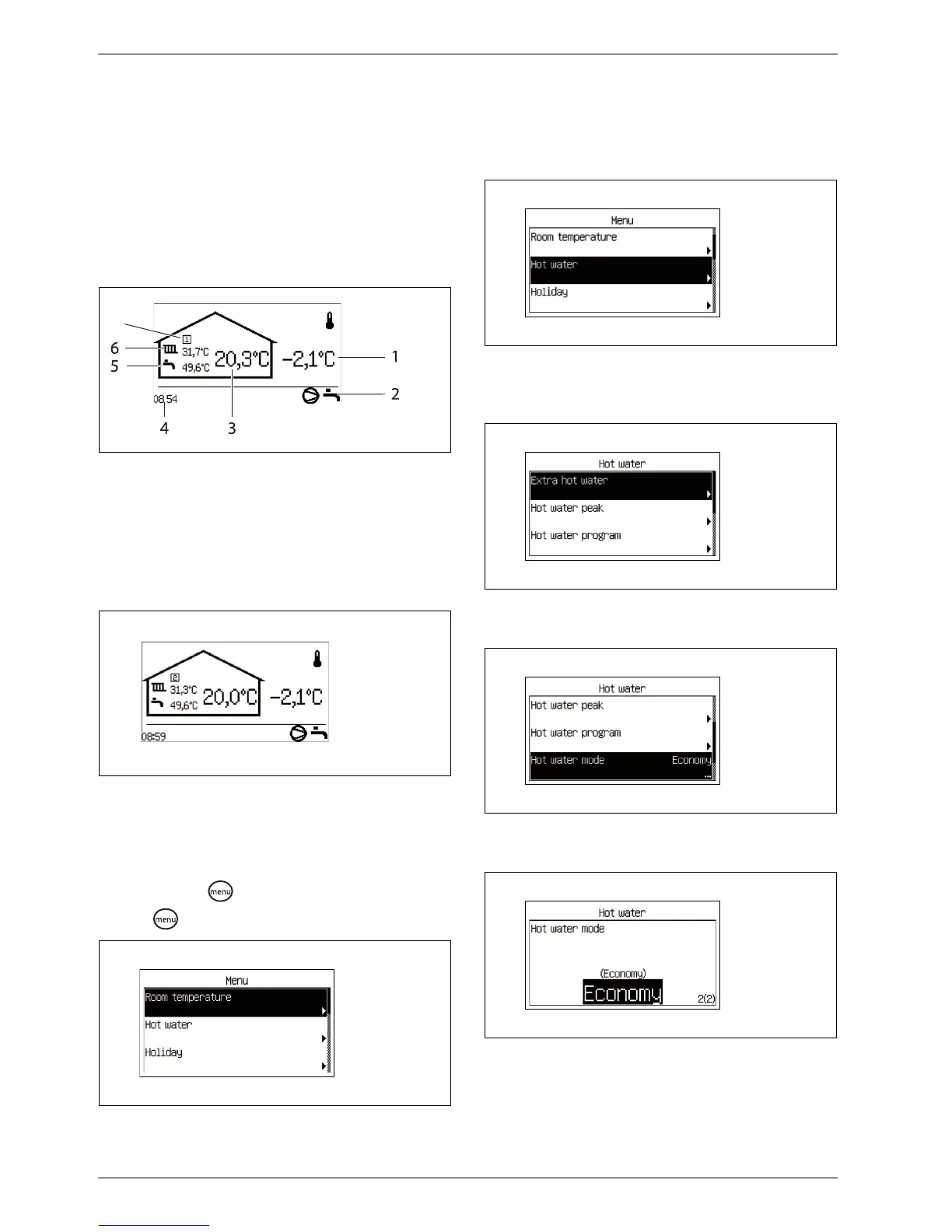

Fig. 4 Initial menu
1 Outdoor temperature
2 Current operating symbols
3 The circuit room temperature
4 Current time
5 Hot water temperature
6 Circuit flow temperature
7 Circuit number
Fig. 5 Initial menu, circuit 2 is displayed
7.2 Finding desired function and changing
value
Menu overview (Æ Page 9) shows the main functions that
are reached with and the dial.
B Press .
Fig. 6
B Turn the dial to mark a desired menu bar.
Fig. 7
B Select the function by pressing the dial. The first
three menu functions under Hot water are displayed.
Fig. 8
B Turn the dial to see other menu lines.
Fig. 9
B Press the dial to select the function.
Fig. 10
6 720 614 789-12.1I
7
6 720 614 789-02.1I
6 720 643 415-01.1I
6 720 643 415-02.1I
6 720 643 415-03.1I
6 720 643 415-04.1I
6 720 643 415-05.1I
