Settings Customer level
6 720 643 415 (2010/03)
16
temperature degree.
The value at 0 °C is displayed above the curve's left-hand
part, factory value 35.7 °C.

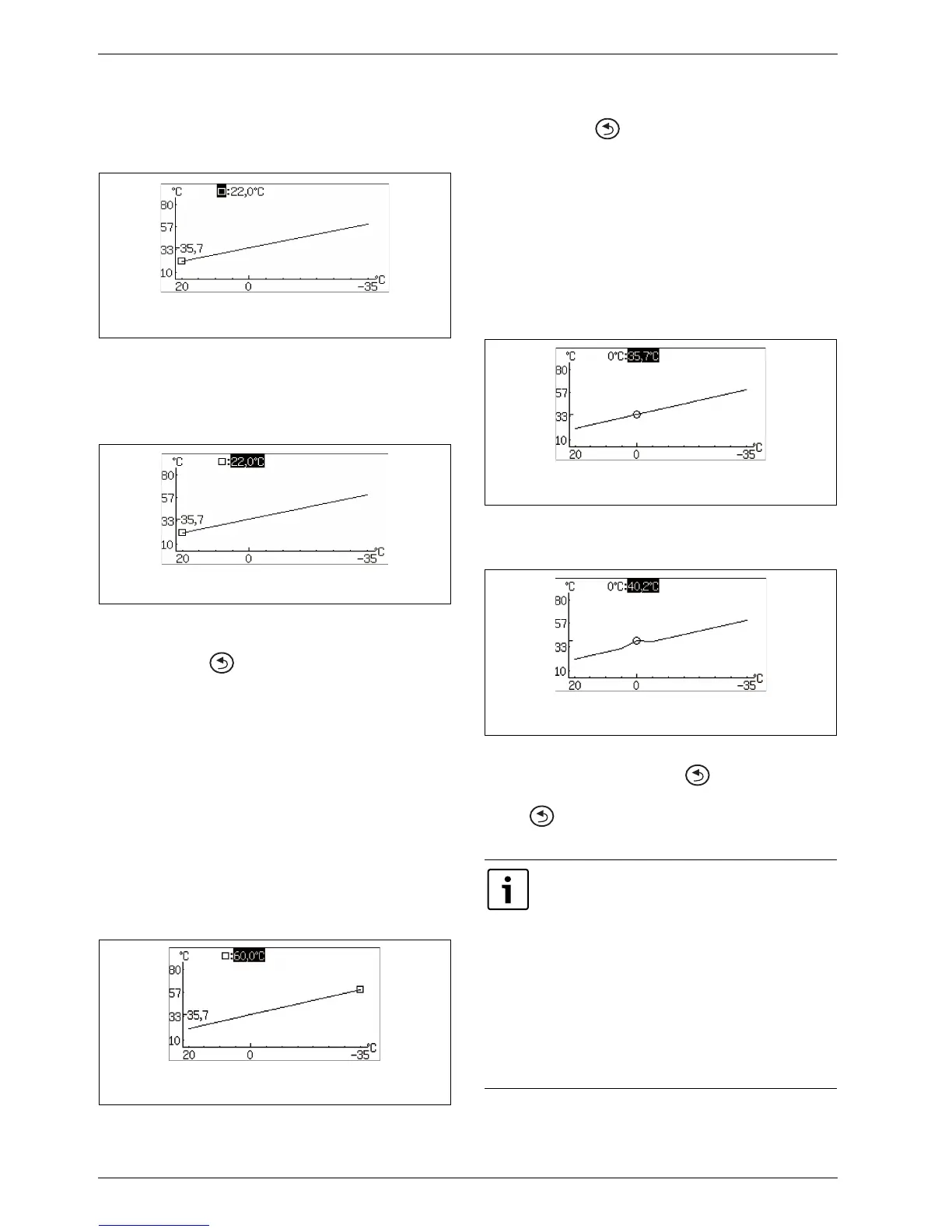

Fig. 22 Setting window Heat curve (radiator)
Change the left point:
B Press the menu dial when the square is marked.
The value is marked.
Fig. 23
B Turn the menu dial to change the value. Press the dial
to save or use to return without saving.
In the window, the square is marked again and any
changed values are displayed after the square. In
addition, the curve is updated according to the new
value.
Change the right point:
B Turn the menu dial when the square is marked. The
upper square is changed to outdoor temperature with
the corresponding curve value after the colon. The
circle marks the relevant curve position.
B Continue to turn the dial until it shows a square
before the colon.
B Press the dial to mark the value.
Fig. 24
B Turn the menu dial to change the value. Press the dial
to save or use to return without saving.
In the window, the square is marked again and any
changed values are displayed after the square. In
addition, the curve is updated according to the new
value.
Change a specific value, for example the value at an
outdoor temperature of 0 °C:
B Turn the menu dial when the square is marked until
0°C is marked (Æ Image 25).
B Press the dial to mark the value.
Fig. 25
B Turn the menu dial to change the value.
Fig. 26
B Press the dial to save or use to return without
saving.
B Use to leave the curve setting window and return
to the menu.
6 720 614 789-18.3I
6 720 614 789-19.3I
6 720 614 789-23.3I
Recommendations:
B Increase the value of the right point if it
feels too cold at low outdoor
temperatures.
B Increase the value of curve at 0 °C if it
feels a little cold at outdoor temperatures
around 0.
B Increase or decrease the value of the
curve equally at the right and left points
to fine adjust the heat (the curve is
parallel offset).
6 720 614 789-21.3I
6 720 614 789-22.3I
